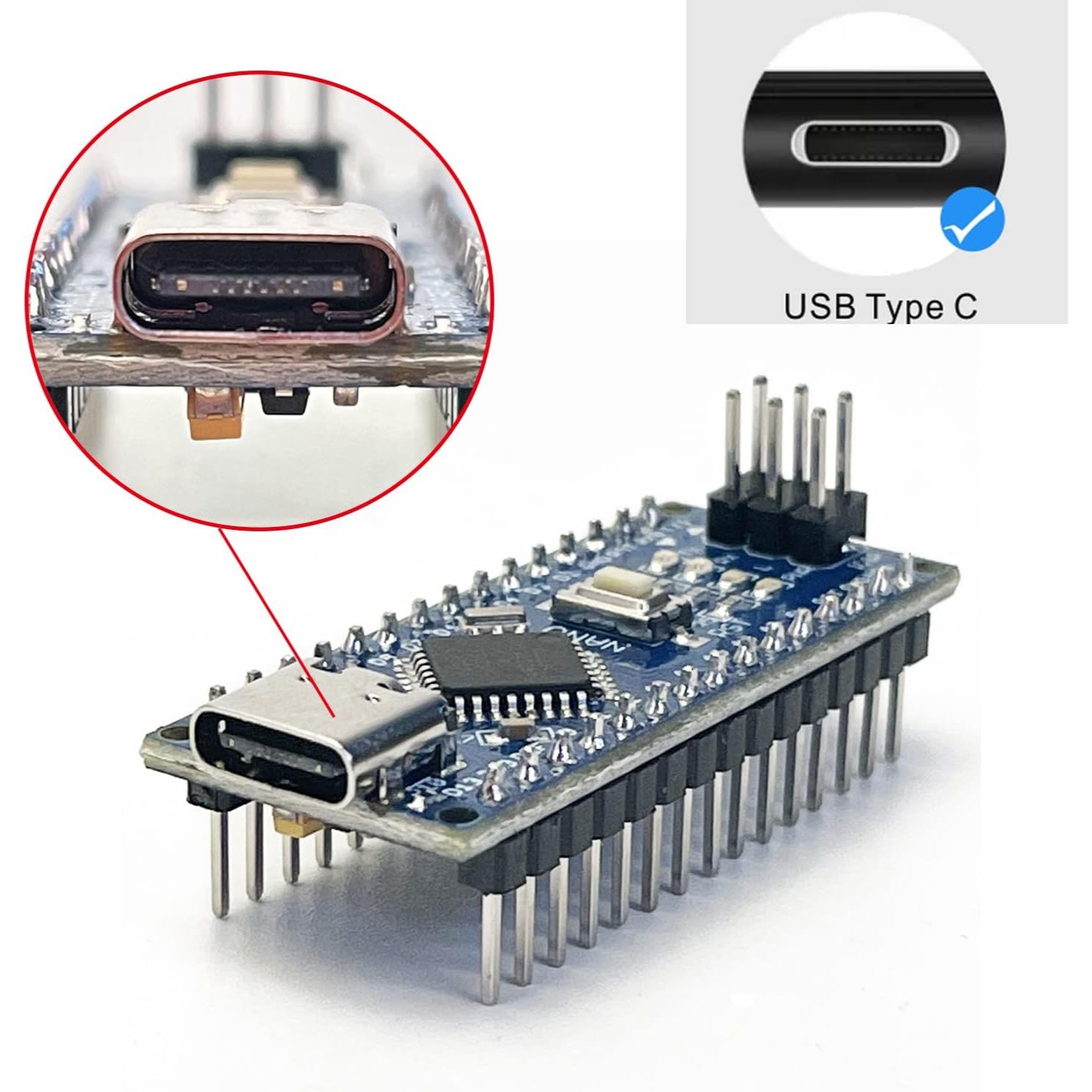

Arduino Nano ATmega328PU-TH with CH340G Uploader – USB Type-C
The Arduino Nano ATmega328PU-TH with CH340G Uploader – USB Type-C is a versatile and compact board engineered for a diverse array of electronics projects. Anchored by the robust ATmega328P microcontroller, this board delivers the core functionality of the traditional Arduino Nano while incorporating modern enhancements such as a USB Type-C port and the economical CH340G USB-to-serial converter. This combination ensures compatibility with contemporary devices and provides a cost-effective solution for developers.
The ATmega328P, an 8-bit AVR RISC-based microcontroller, operates at a 16 MHz clock speed and offers 32 KB of flash memory for program storage, 2 KB of SRAM for data manipulation, and 1 KB of EEPROM for non-volatile data retention. The board provides 14 digital input/output pins, six of which support pulse-width modulation (PWM) for applications like motor control or LED dimming, and eight analog input pins for precise sensor interfacing. It supports multiple communication protocols, including UART, I2C, and SPI, enabling seamless integration with peripherals such as sensors, displays, and memory modules.
Features:
- Compact size, breadboard-friendly design.
- Based on ATmega328P microcontroller.
- 14 digital I/O pins, 6 of which provide PWM output.
- 8 analog input pins.
- 16 MHz clock speed.
- 32 KB flash memory, 2 KB SRAM, 1 KB EEPROM.
- USB Type-C connector for power and communication.
- CH340G USB-to-serial converter.
Specifications:
|
Parameter |
Value |
|---|---|
|
Microcontroller |
ATmega328P |
|
Operating Voltage |
5V |
|
Input Voltage |
5-12V |
|
Digital I/O Pins |
14 (of which 6 provide PWM output) |
|
Analog Input Pins |
8 |
|
DC Current per I/O Pin |
40mA |
|
Flash Memory |
32KB (of which 2KB used by bootloader) |
|
SRAM |
2KB |
|
EEPROM |
1KB |
|
Clock Speed |
16MHz |
|
USB Connector |
USB Type-C |
|
USB Chip |
CH340G |
|
Dimensions |
44mm x 18mm |

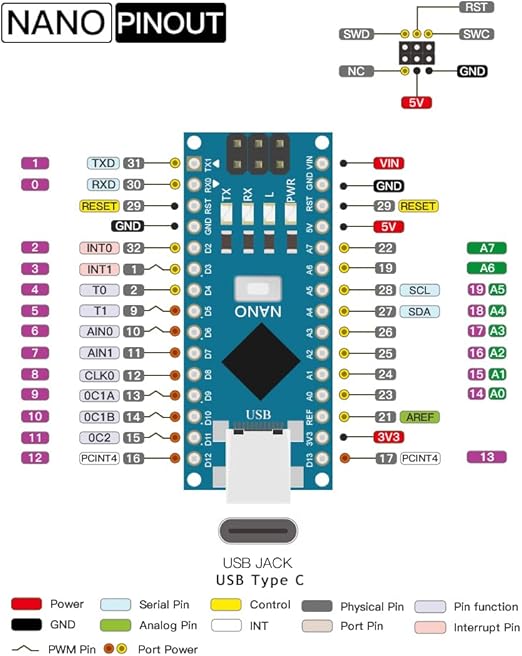

Pin Configuration:
Applications:
- Embedded system development and prototyping.
- Robotics and autonomous vehicle projects.
- Internet of Things (IoT) applications.
- Sensor monitoring and data acquisition systems.
- Home automation and smart control systems.
- Motor control and PWM-based applications.
- LED lighting and display control projects.
- Wireless communication projects using Bluetooth, Wi-Fi, LoRa, and RF modules.
- Environmental monitoring systems.
- Data logging and measurement equipment.
- Educational electronics and STEM learning projects.
Package Include:
- 1x Arduino Nano ATmega328PU-TH with CH340G Uploader – USB Type-C.
