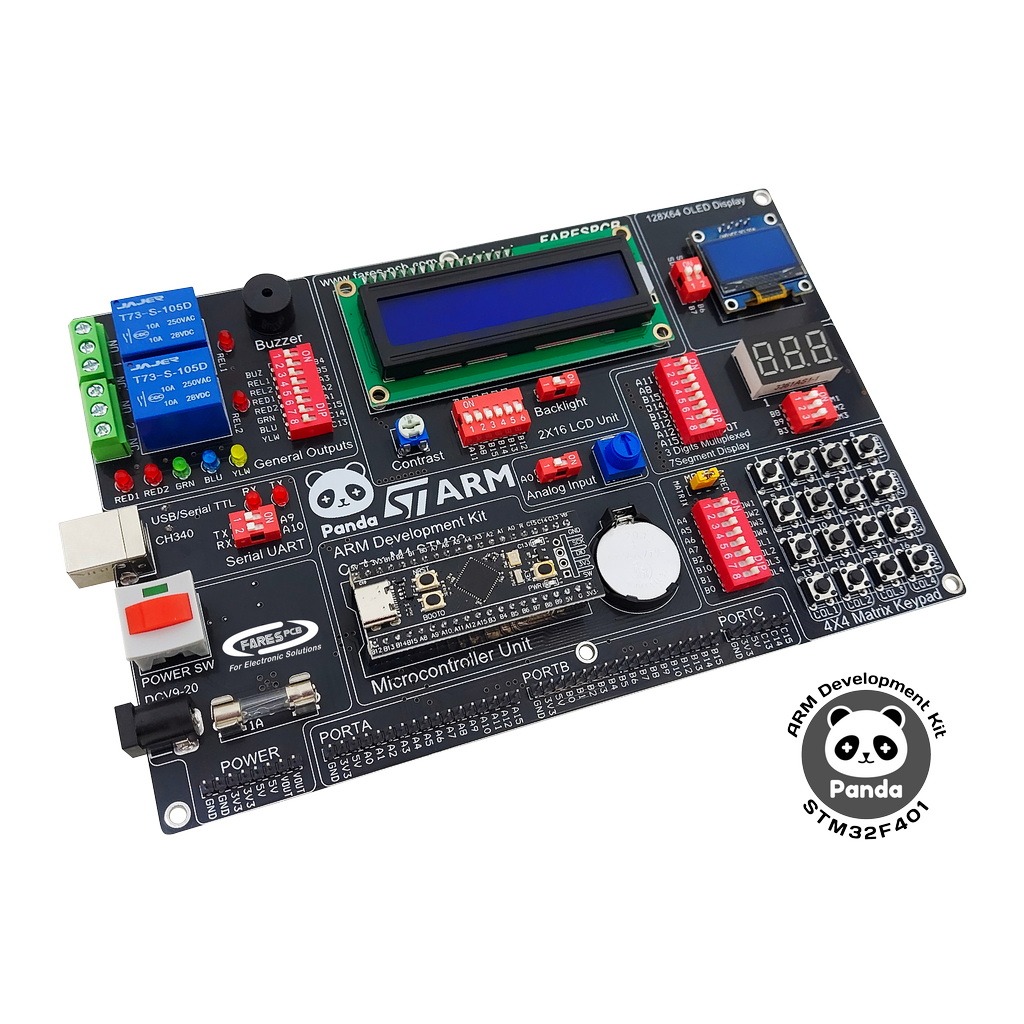

ARM Development (Panda+) Based on STM32F401RCT6 Full Kit
The ARM Development (Panda+) Based on STM32F401RCT6 Full Kit is an educational and prototyping platform designed for learning and developing ARM-based embedded systems. Built around the STM32F401RCT6 microcontroller, the Panda+ combines processing capabilities with integrated input controls, output devices, displays, and communication interfaces. This arrangement allows users to experiment with microcontroller programming, peripheral control, and embedded hardware development using a single development platform.
Features:
- Based on the STM32F401RCT6 32-bit ARM Cortex-M4 microcontroller.
- Operates at a maximum clock frequency of 84MHz.
- Provides 256KB of Flash memory and 64KB of SRAM.
- Includes 16 input switches supporting matrix and direct-input modes.
- Features five onboard output indicator LEDs.
- Provides two relay outputs with status indicators and protective circuitry.
- Includes an onboard buzzer for audible feedback.
- Supports a 2×16-character LCD with contrast and backlight control.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | ARM microcontroller development kit |
| Brand | FARESPCB |
| Model | Panda+ |
| Microcontroller | STM32F401RCT6 |
| Processor Core | 32-bit ARM Cortex-M4 |
| Maximum Clock Frequency | 84MHz |
| Flash Memory | 256KB |
| SRAM | 64KB |
| Digital Input Controls | 16 switches |
| Output LEDs | 5 |
| Relay Outputs | 2 |
| Relay Current Rating | Up to 10A per relay, as specified by the Maker’s listing; verify contact ratings and load conditions before use |
| Buzzer | 5V output buzzer |
| LCD | 2×16 characters |
| Seven-Segment Display | Three-digit multiplexed display |
| OLED Interface | I²C, 128×64, 0.96-inch display support |
| Analog Input | Onboard 10kΩ potentiometer |
| Serial Converter | CH340 USB-to-TTL |
| Communication Peripherals | 3×USART, 4×SPI, 3×I²C, CAN 2.0, and USB 2.0 support |
| Power Input | 9–40VDC via DC socket or 5V via supported USB input |
| Power Protection | 1A fuse and reverse-current protection diode |
| Voltage Regulation | LM2576 5V switching regulator and 3.3V/300mA regulator |
| Real-Time Clock | 32.768kHz crystal with CR2032 battery holder |
| GPIO Access | Through pin headers |

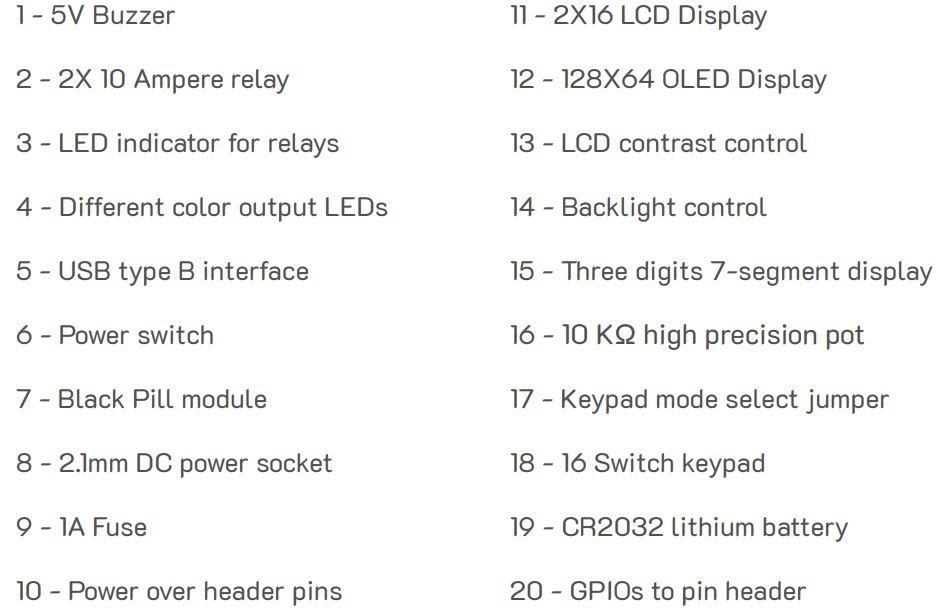

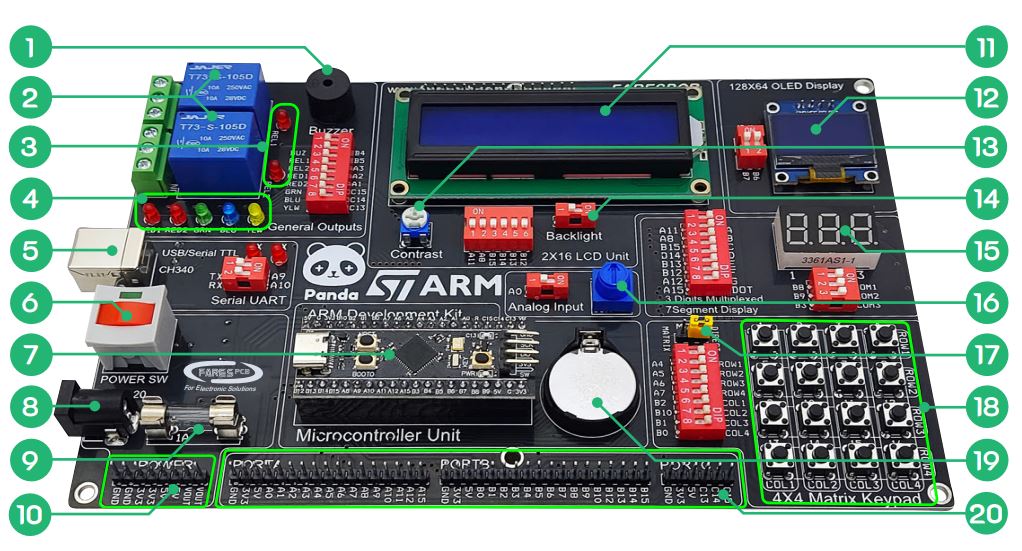

Configuration:
Applications:
- ARM Cortex-M4 programming and microcontroller education.
- Embedded systems development and firmware testing.
- Digital input and output control experiments.
- Relay-based automation and switching prototypes.
- LCD and seven-segment display programming.
- Analog input measurement and potentiometer testing.
- UART serial communication and debugging.
- Sensor interfacing and peripheral integration.
- Data logging and real-time clock experiments.
- Educational robotics and electronic control projects.
Package Include:
- 1x Panda+ ARM Development Kit.
- 1x STM32F401RCT6 Black Pill Development Board.
- 1x USB Type-B Cable.
- 1x 0.96-Inch 128×64 I²C OLED Display Module.
- 1x ST-Link V2 STM8/STM32 Programmer.
- 1x CR2032 Battery.
