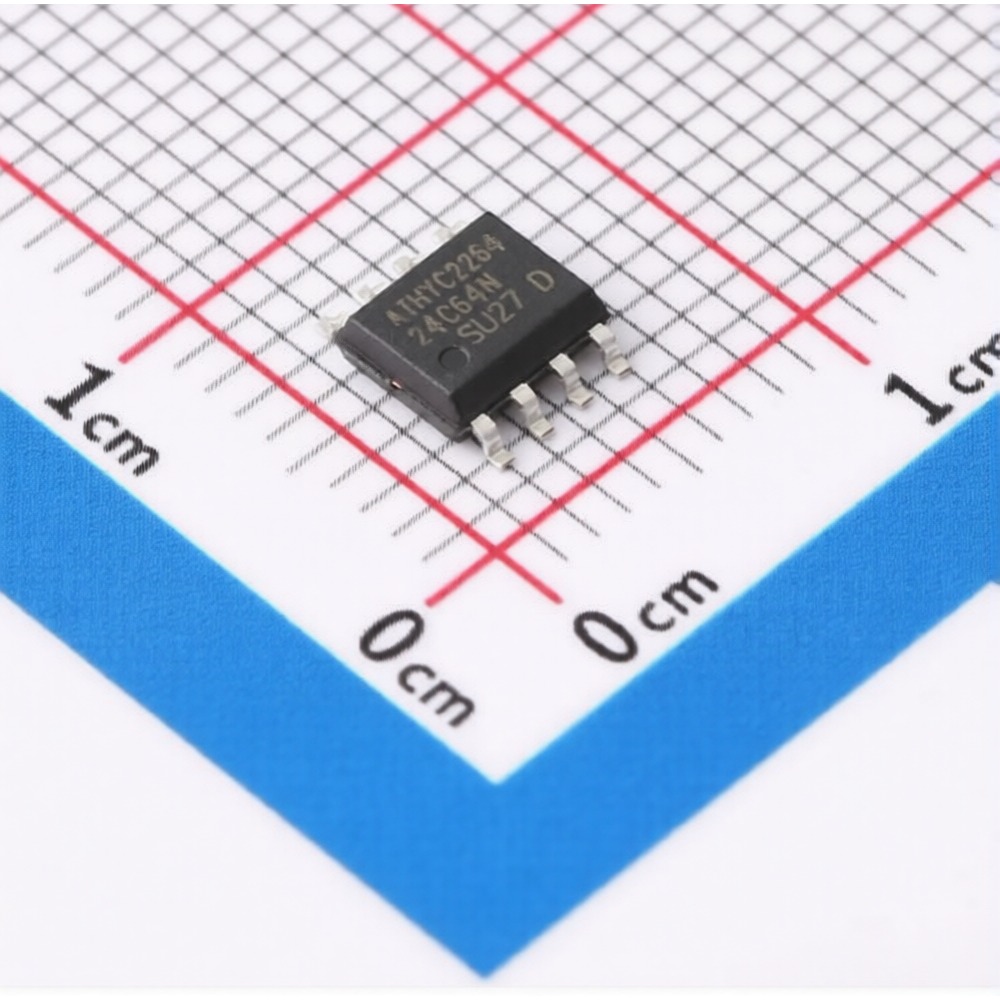

ATHYC2264 24C64N EEPROM SMD IC SOP-8
The ATHYC2264 24C64N EEPROM SMD IC SOP-8 is a high-performance 64Kbit (8K × 8) serial Electrically Erasable Programmable Read-Only Memory (EEPROM) designed for reliable non-volatile data storage in embedded systems and electronic devices. Featuring the industry-standard I²C (Two-Wire) serial interface, this device enables simple communication with microcontrollers, processors, and digital control systems while minimizing pin count and PCB routing complexity.
Features:
- 64Kbit (8K × 8) EEPROM memory.
- Standard I²C two-wire serial interface.
- SOP-8 surface-mount package.
- Operating voltage from 1.7V to 5.5V.
- Supports clock frequencies up to 1MHz.
- Byte write and 32-byte page write modes.
- Sequential and random read operations.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | ATHYC2264 / 24C64N |
| Memory Type | Serial EEPROM |
| Memory Capacity | 64Kbit (8KB) |
| Memory Organization | 8192 × 8bits |
| Interface | I²C (Two-Wire) |
| Operating Voltage | 1.7V~5.5V |
| Maximum Clock Frequency | 1MHz |
| Page Write Size | 32Bytes |
| Write Cycle Time | 5ms(Max.) |
| Write Endurance | 1,000,000Cycles |
| Data Retention | 100Years |
| Operating Temperature | -40°C~+85°C |
| Package | SOP-8 |
| Mounting Type | Surface Mount (SMD) |

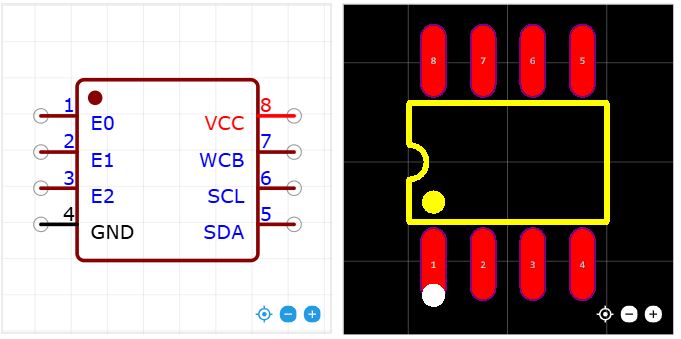

Pin Configuration:
Footprint:
Applications:
- Microcontroller data storage.
- Configuration memory.
- Embedded systems.
- Industrial automation equipment.
- IoT devices.
- Consumer electronics.
- Development boards.
- Communication equipment.
- Calibration data storage.
- Smart electronic products.
Package Include:
1x ATHYC2264 24C64N EEPROM SMD IC SOP-8.
