Audio Plug Female PCB Mount 3.5mm PJ-324
PJ-324: A 5-pin, 3.5mm PCB mount audio jack for DIP installation. Features lateral entry, 50mA/24V DC rating, and a 5,000-cycle lifespan.
5.00 EGP
Buy NowAudio Plug Female PCB Mount 3.5mm PJ-324

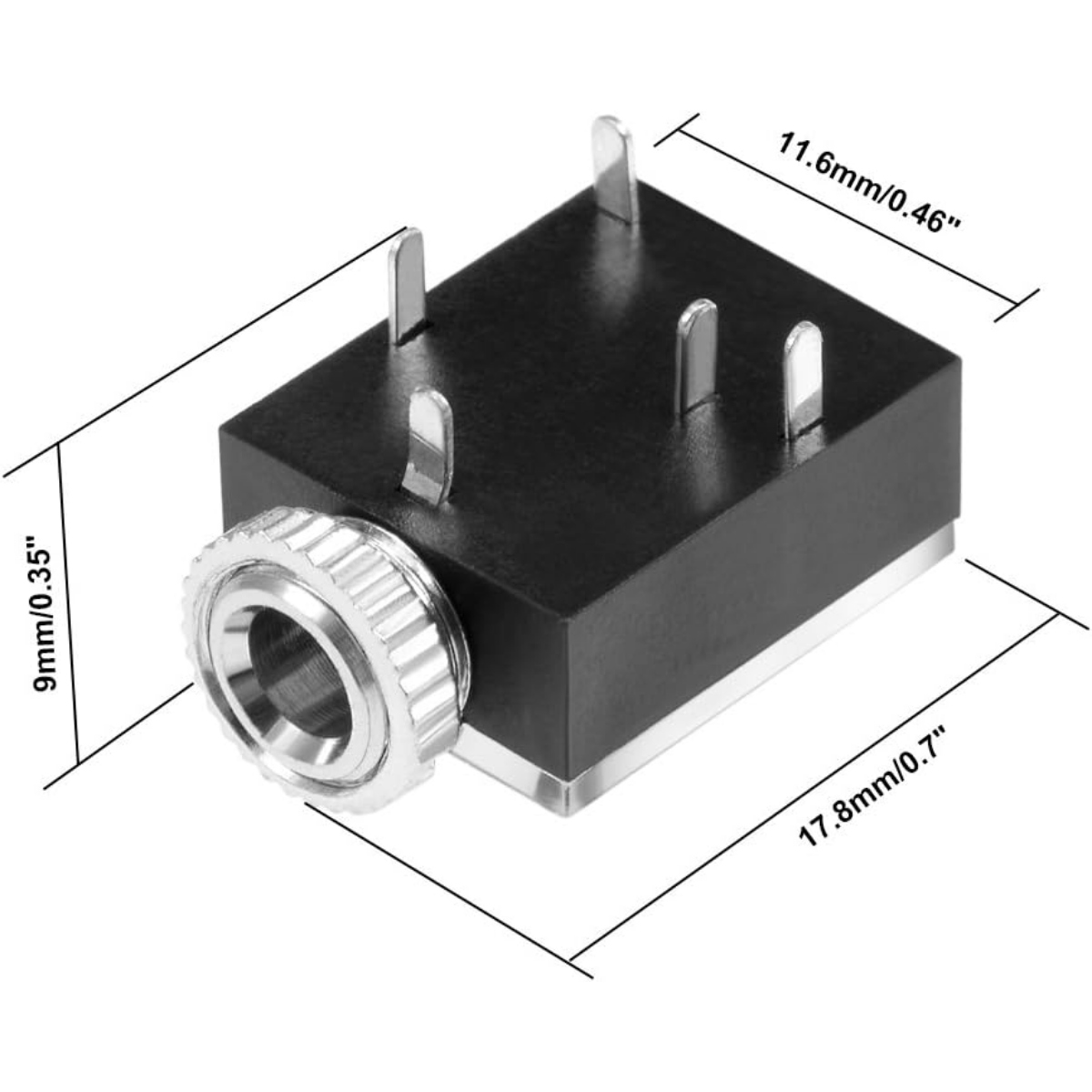

The PJ-324 is a 5-pin, 3.5mm audio phone jack. It is designed for PCB mounting using a DIP installation style. This connector features a lateral (side) entry for the audio plug.
Features
- Product Number: PJ-324
- Port Type: 3.5mm Phone Jack
- Pin Count: 5-Pin
- Mounting: DIP / Plug-in Installation
- Orientation: Lateral (Side) Entry
Specifications
| Specification | Value |
|---|---|
| Contact Rating | 50mA, 24V DC |
| Initial Contact Resistance | 30mΩ maximum |
| Insulation Resistance | 100MΩ minimum at 500V DC |
| Withstand Voltage | 500V AC for 1 minute |
Applications
- Portable Media Players
- Audio/Video Equipment
- Computers and Laptops
- Portable Audio
