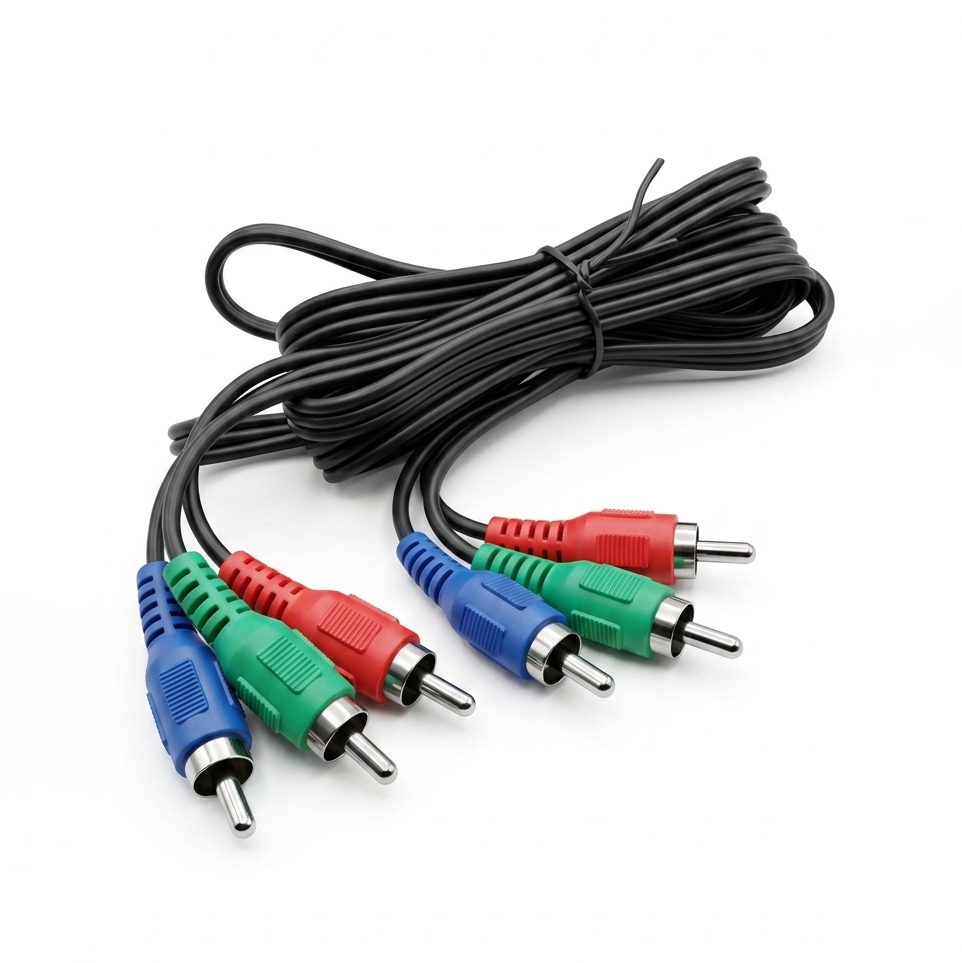

Audio Video 3 RCA Male to Male Cable 1.5 meter
Audio Video 3 RCA Male to Male Cable 1.5m delivers reliable audio and video transmission for TVs, DVD players, gaming consoles, and AV devices.
30.00 EGP
Buy NowAudio Video 3 RCA Male to Male Cable 1.5 meter
Audio Video 3 RCA Male to Male Cable 1.5m is designed for dependable analog audio and video connectivity between a wide range of multimedia devices. Featuring three color-coded RCA male connectors on each end.
In standard AV cables, the colors are typically Red (Right Audio), White (Left Audio), and Yellow (Video).
In this cable, the manufacturer appears to have used Green instead of White and Blue instead of Yellow, but the functions remain the same.
This cable supports composite video and stereo audio transmission with clear signal quality.
Its durable construction and 1.5-meter length provide convenient installation for TVs, DVD players, set-top boxes, gaming consoles, speakers, and home theater systems. Ideal for both home entertainment and professional AV setups.
Features
- Provides simultaneous composite video and stereo audio transmission.
- Features color-coded RCA connectors for easy installation.
- Durable cable construction enhances longevity and reliability.
- Delivers stable signal transfer with minimal interference.
- Compatible with TVs, DVD players, gaming consoles, and AV receivers.
- Flexible 1.5m length allows convenient device placement.
- Plug-and-play design requires no additional software or drivers.
- Suitable for home entertainment and professional AV applications.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Audio Video 3 RCA Male To Male Cable |
| Connector Type | RCA To RCA |
| Gender | Male To Male |
| Video Signal | Composite Video |
| Audio Channels | Stereo(L/R) |
| Connector Color | Blue, Green, Red |
| Installation | Plug And Play |
| Material | PVC |
| Cable Length | 1.5m |
| Compatibility | TVs, DVD Players, Set Top Boxes, Game Consoles, AV Receivers |
| Application | Audio Video Transmission |
Pinout Configuration
| Jake Color | Function/Description |
|---|---|
| Red RCA | Right Audio Channel (Audio R) |
| Green RCA | Left Audio Channel (Audio L) |
| Blue RCA | Composite Video Signal (CVBS Video) |
Note
- In standard AV cables, the colors are typically Red (Right Audio), White (Left Audio), and Yellow (Video).
- In this cable, the manufacturer appears to have used Green instead of White and Blue instead of Yellow, but the functions remain the same.
Connector Mapping
| Connector Color | Signal Type |
|---|---|
| Red ↔ Red | Right Audio Channel |
| Green ↔ Green | Left Audio Channel |
| Blue ↔ Blue | Composite Video Signal |
RCA Connector Pin Structure
| Pin Part | Function/Description |
|---|---|
| Center Pin | Signal Line (Audio or Video) |
| Outer Metal Shield | Ground (GND) / Signal Return |
Wiring Diagram
| RCA Connector | Center Pin | Outer Shield |
|---|---|---|
| Red RCA | Right Audio Signal | Ground |
| Green RCA | Left Audio Signal | Ground |
| Blue RCA | Composite Video Signal | Ground |
Applications
- Connecting DVD players to televisions.
- Linking gaming consoles to TVs or monitors.
- Connecting set-top boxes to display devices.
- Audio and video transmission in home theater systems.
- Connecting VCRs to televisions or recording equipment.
- Integrating AV receivers with multimedia devices.
- Educational and presentation AV setups.
- General analog audio and video connections.
Package Contents
- 1 x Audio Video 3 RCA Male to Male Cable 1.5 meter.
