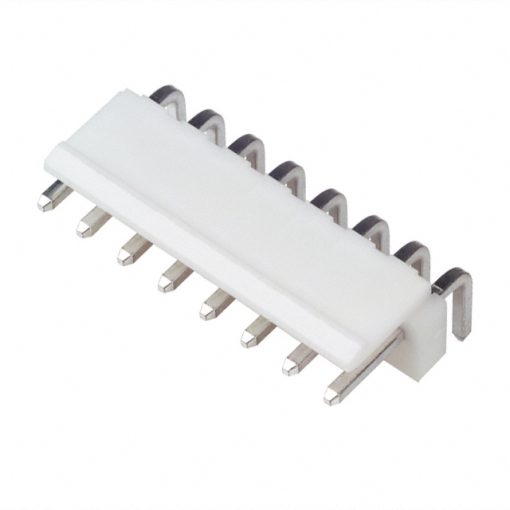

B8PS-VH JST VH Data Terminal Male 8 Pin Angle Connector Header 3.96mm
The B8PS-VH JST VH Data Terminal Male 8 Pin Angle Connector Header 3.96mm is a robust and reliable connector designed for wire-to-board applications. Part of the JST VH series, this side-entry through-hole header features an 8-pin configuration with a 3.96mm pitch, making it ideal for applications requiring multiple connections in a compact space. The angle design optimizes PCB real estate, while tin-plated contacts ensure excellent electrical conductivity and durability. With a current rating of 10A AC/DC and a voltage rating of 250V AC/DC, the B8PS-VH delivers consistent performance in demanding environments.
Features
- Side-entry design for space-saving PCB mounting.
- 8-pin configuration for multiple connections.
- 3.96mm pitch for compatibility with standard VH series components.
- Shrouded header for secure and reliable mating.
- Through-hole mounting ensures strong mechanical connection.
- Tin-plated contacts for excellent conductivity.
Specifications
| Parameter | Value |
|---|---|
| Number of Positions | 8 |
| Pitch | 3.96mm |
| Current Rating | 10A AC/DC (AWG #16) |
| Voltage Rating | 250V AC/DC |
| Operating Temperature | -25°C to +85°C |
| Contact Resistance | Initial: 10mΩ max. After environmental tests: 20mΩ max. |
| Insulation Resistance | 1,000MΩ min. |
| Withstanding Voltage | 1,500VAC for 1 minute |
| Applicable Wire Range | AWG #22 to #16, Insulation O.D. 1.7mm to 3.0mm |
| PC Board Thickness | 1.6mm |
| Material | Post: Brass, tin-plated Housing: PA 66, natural (white) |
Dimensions
Applications
- Industrial equipment
- Consumer electronics
- Automotive systems
- Power supply units
- Any application requiring reliable wire-to-board connections
Package Contents
- 1x B8PS-VH JST VH Data Terminal Male 8 Pin Angle Connector Header 3.96mm.
