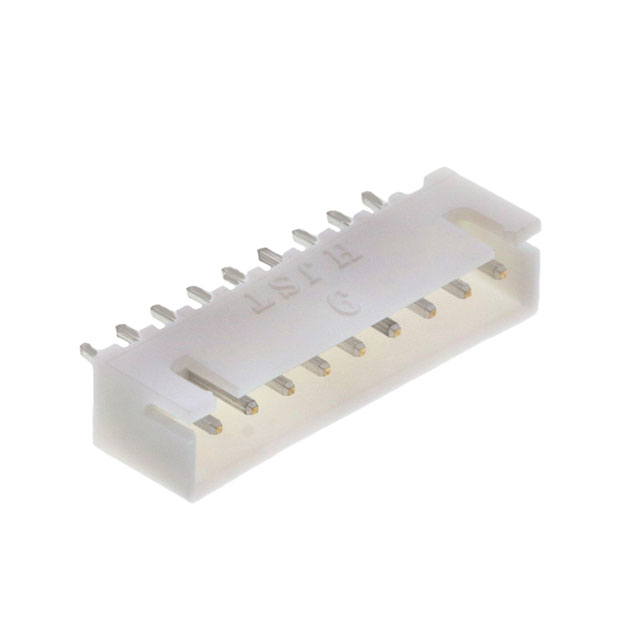

B9B-XH-A JST XH Data Terminal Male 9 Pin Connector Header 2.5mm
The B9B-XH-A is an 9-position, 2.5mm pitch, through-hole, top-entry connector header from JST XH series, designed for reliable wire-to-board connections in compact, high-density applications.
1.80 EGP
In stockSKU 2449222800308
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
B9B-XH-A JST XH Data Terminal Male 9 Pin Connector Header 2.5mm
The B9B-XH-A JST XH Data Terminal Male 9 Pin Connector Header 2.5mm is a robust and versatile connector header from JST’s XH series, widely used for wire-to-board connectivity. Featuring a 2.5mm pitch, this 9-pin, top-entry, through-hole header is ideal for space-constrained PCB layouts. Its shrouded design ensures secure mating with corresponding XH series housings, while its tin-plated copper alloy posts provide excellent conductivity and durability. With a current rating of 3A AC/DC (using AWG #22) and a voltage rating of 250V AC/DC, the B9B-XH-A is well-suited for a variety of applications, including consumer electronics, industrial equipment, automotive systems, and medical devices.
Features
- Top-Entry Design: Optimized for vertical PCB mounting.
- 2.5mm Pitch: Enables high-density circuit board layouts.
- Through-Hole Mounting: Ensures a strong mechanical bond to the PCB.
- Tin-Plated Copper Alloy Posts: Delivers excellent electrical conductivity and resistance to corrosion.
- Natural (White) Housing: Made from durable PA 66 material for long-term reliability.
Specifications
| Parameter | Value |
|---|---|
| Number of Positions | 9 |
| Pitch | 2.5mm |
| Current Rating | 3A AC/DC (AWG #22) |
| Voltage Rating | 250V AC/DC |
| Operating Temperature | -25°C to +85°C |
| Contact Resistance | Initial: 10mΩ max. After tests: 20mΩ max. |
| Insulation Resistance | 1,000MΩ min. |
| Withstanding Voltage | 1,000VAC for 1 minute |
| Applicable Wire Range | AWG #30 to #22 Insulation O.D. 1.1mm to 1.9mm |
| PC Board Thickness | 0.8mm to 1.6mm |
| Material | Posts: Copper alloy, tin-plated Housing: PA 66, natural (white) |
Dimensions
Applications
- Consumer Electronics: Powers devices such as TVs, audio equipment, and household appliances.
- Industrial Equipment: Used in control systems and machinery for reliable connectivity.
- Automotive Electronics: Suitable for in-vehicle wiring and sensor applications.
- Medical Devices: Ideal for compact diagnostic and monitoring equipment.
- General Wire-to-Board Needs: Perfect for any scenario requiring dependable, space-efficient connections.
Datasheet
