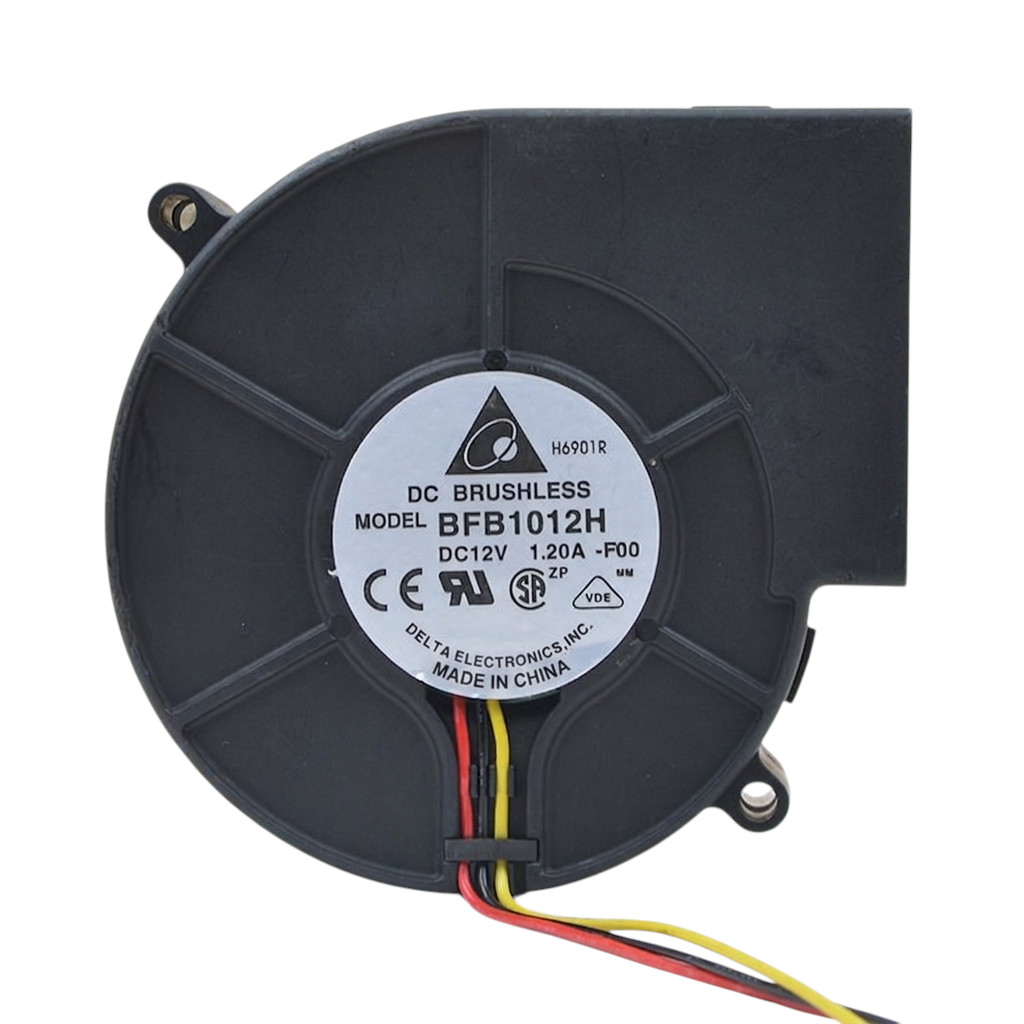

DELTA BFB1012H DC Blower Fan 12V 1.2A 97x94x33mm (USED LIKE NEW)
The DELTA BFB1012H DC Blower Fan is a high-performance brushless centrifugal blower engineered to provide focused airflow in applications where conventional axial fans are not suitable. Its blower-style design generates high static pressure, making it ideal for directing air through heat sinks, ventilation ducts, power supplies, projectors, communication equipment, and industrial control systems. The dual ball bearing construction ensures reliable operation, long service life, and dependable performance under continuous-duty conditions.
This unit is offered in USED LIKE NEW condition, meaning it has been tested and verified to operate correctly while exhibiting minimal cosmetic wear. Operating from a 12V DC supply with a rated current of 1.2A, It’s an excellent replacement blower for OEM equipment and custom cooling projects that require concentrated airflow and high cooling efficiency.
Features
- Durable Bearing System
- High Static Pressure
- Advanced Protection
- Flame Retardant Housing
- Reliable Performance
Specifications
| Technical Specifications: Delta BFB1012H | |
|---|---|
| Manufacturer | Delta Electronics, Inc. |
| Model Number | BFB1012H |
| Rated Voltage | 12 VDC |
| Operating Voltage | 4.0 – 13.8 VDC |
| Input Current | 0.80 A (Max. 1.20 A) |
| Input Power | 9.60 W (Max. 14.40 W) |
| Rated Speed | 3600 R.P.M. |
| Maximum Air Flow | 25.43 CFM (0.720 m³/min) |
| Maximum Air Pressure | 1.000 inchH2O (25.40 mmH2O) |
| Acoustical Noise | 52.0 dB-A (Max. 55.0 dB-A) |
| Bearing Type | Two Ball Bearing |

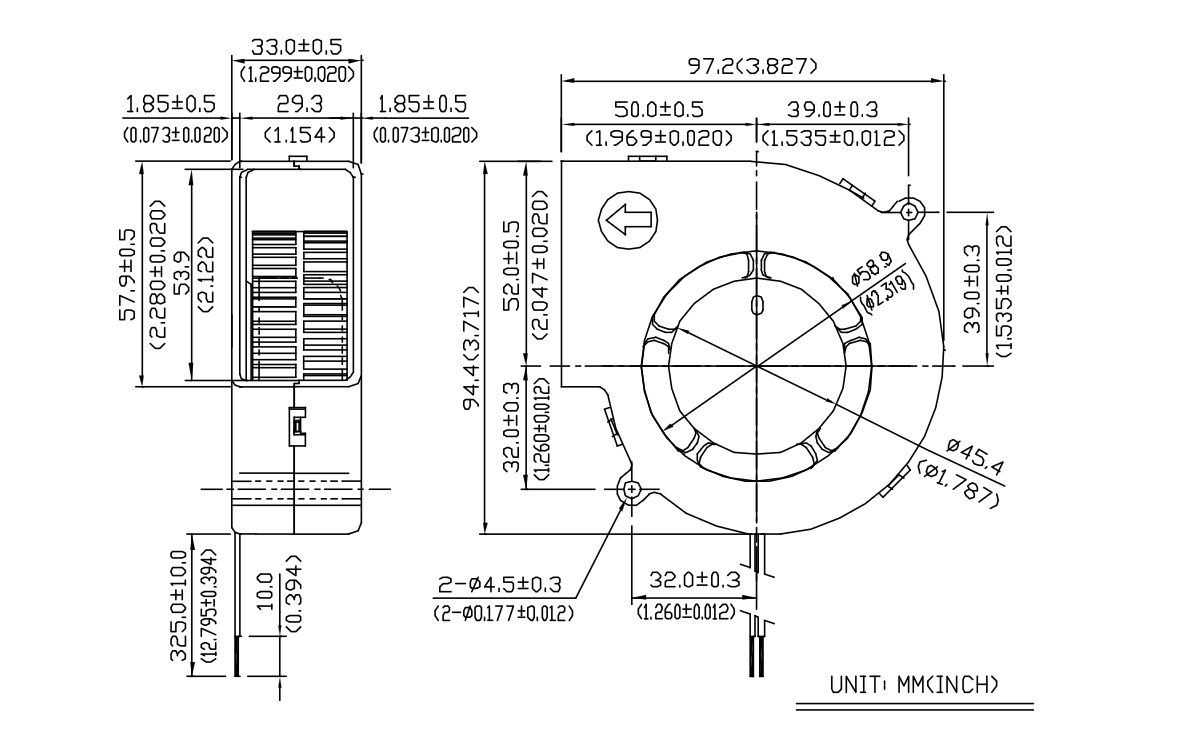

| Dimensions | 97.2 x 94.4 x 33.0 mm |
| Weight | 160 ± 10 grams |
| Frame / Impeller Material | Plastic UL: 94V-0 |
| Lead Wires | UL 1007 AWG #24 (Red: +, Black: -, Yellow: Signal) |
| Life Expectancy | 50,000 Hours @ 40°C |
Applications
- 3D Printers
- Server & Network Gear
- Projectors & Stage Lighting
- Automotive Cooling
- DIY Electronics
Package Content
- 1 x DELTA BFB1012H DC Blower Fan 12V 1.2A 97x94x33mm (USED LIKE NEW)
