Bluetooth Module Adapter

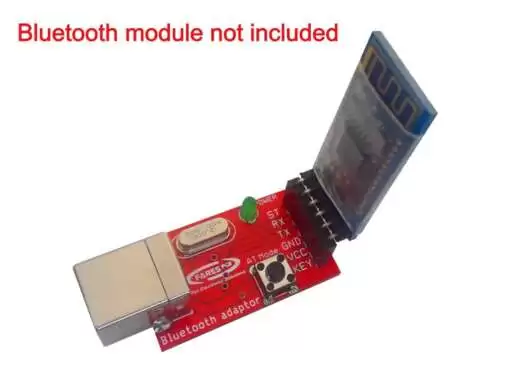

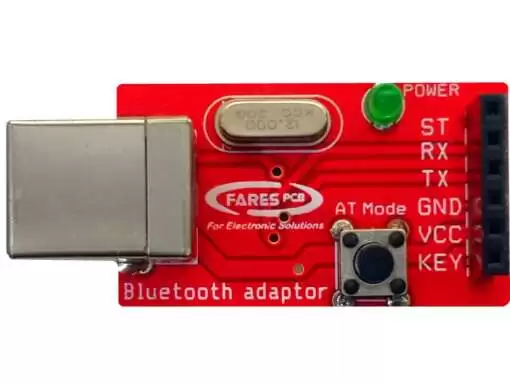

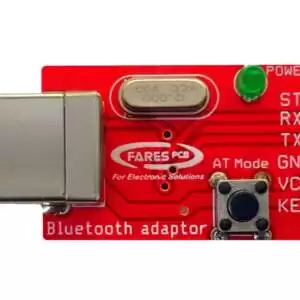

Bluetooth adapter module is a hardware tool suitable for configuring Bluetooth modules via PC using a HyperTerminal or any other configuration software. The Adapter is a dedicated USB‑to‑TTL interface for HC‑05/HC‑06 configuration. It accepts 5 V DC via a USB Type B socket and provides six female headers (ST, RX, TX, GND, VCC, KEY) plus an AT‑Mode switch for entering command mode. A green LED indicates power status, and an onboard 12 MHz crystal oscillator supplies the module clock. Designed on a compact 40 mm × 25 mm PCB, it streamlines AT‑command programming with any serial terminal.
Features
- USB Type B female input for 5 V DC power.
- Six TTL‑level female headers: ST, RX, TX, GND, VCC, KEY.
- AT‑Mode switch to toggle between data and command modes.
- Integrated green LED for clear power indication.
- Onboard 12 MHz crystal oscillator for module clock.
- Breadboard‑friendly 40 mm × 25 mm PCB layout.
Specifications
| Parameter | Value |
|---|---|
| Input Connector | USB Type B female |
| Output Headers | ST, RX, TX, GND, VCC, KEY |
| AT‑Mode Switch | Yes |
| Power Indicator | Green LED |
| Oscillator | 12 MHz crystal |
| Logic Voltage | 3.3 V |
| Supply Voltage | 5 V DC |
| Current Draw | ≤ 50 mA |
| PCB Dimensions | 40 mm × 25 mm |
Applications
- AT‑command configuration of HC‑05/HC‑06 Bluetooth modules.
- USB‑to‑TTL serial interfacing for embedded development.
- Rapid prototyping of wireless IoT and robotics projects.
- Educational and lab setups for Bluetooth communication experiments.
Package Contents
- 1x Bluetooth Module Adapter.
