General Description

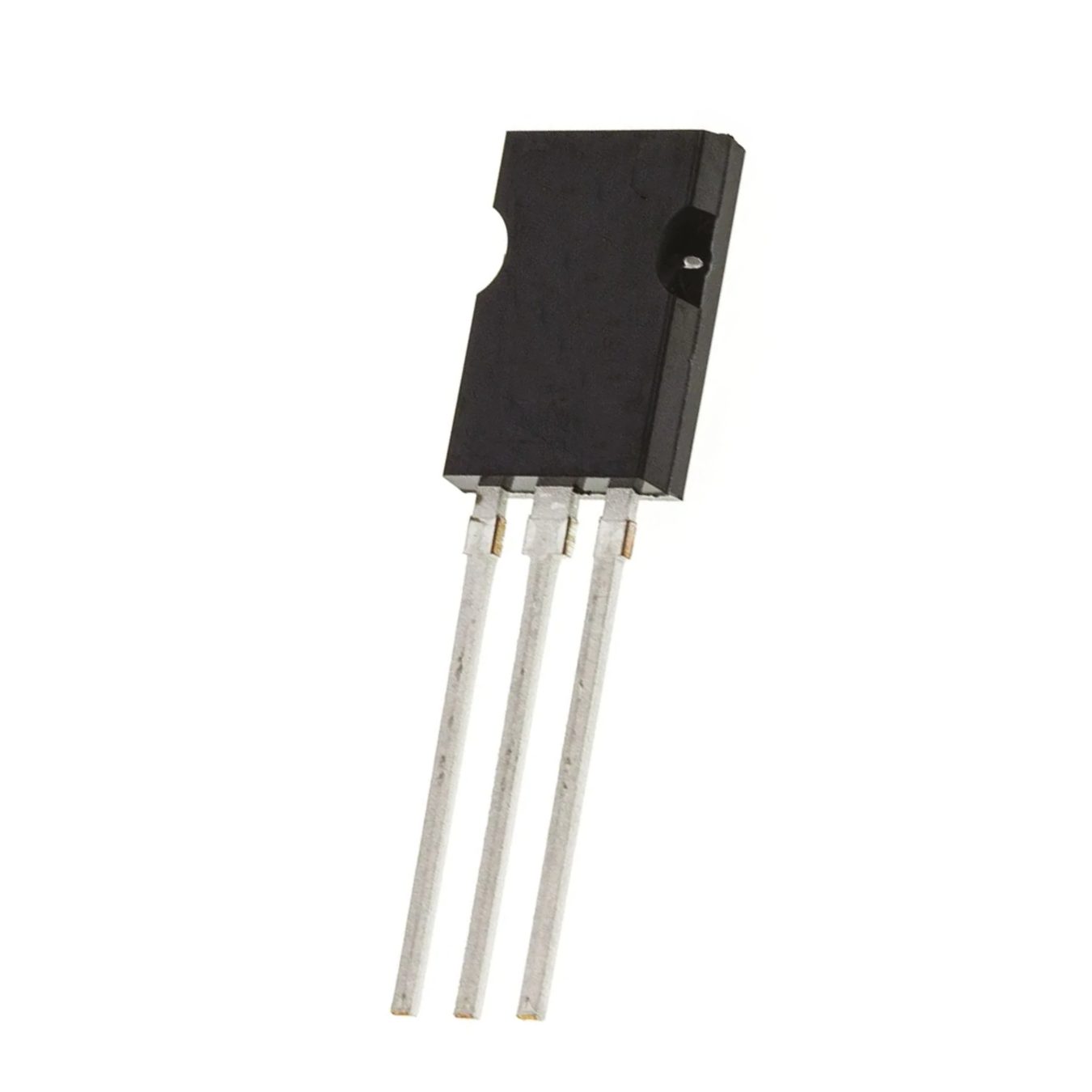

Planar passivated SCR with sensitive gate in a SIP3 (SOT82) plastic package intended
for use in general purpose switching and phase control applications. These devices are
intended to be interfaced directly to microcontrollers, logic integrated circuits and other
low power gate trigger circuits.
Features and benefits
- Sensitive gate
- Planar passivated for voltage ruggedness and reliability
- Direct triggering from low power drivers and logic ICs
Applications
- Adapters
- Battery powered applications
- Industrial automation
Technical Specifications
| Physical | |
| Case/Package | SOT-82 |
| Technical | |
| Current Rating | 2.5 A |
| Hold Current | 6 mA |
| Max Operating Temperature | 125 °C |
| Max Repetitive Reverse Voltage (Vrrm) | 600 V |
| Min Operating Temperature | -40 °C |
| RMS Current (Irms) | 4 A |
| Voltage Rating (DC) | 600 V |
