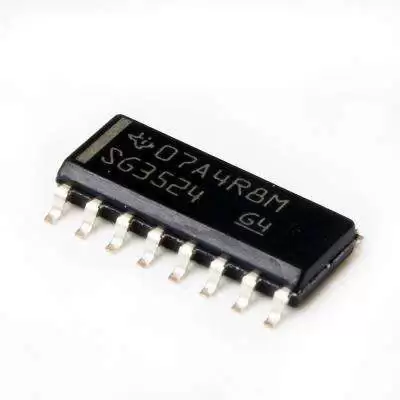

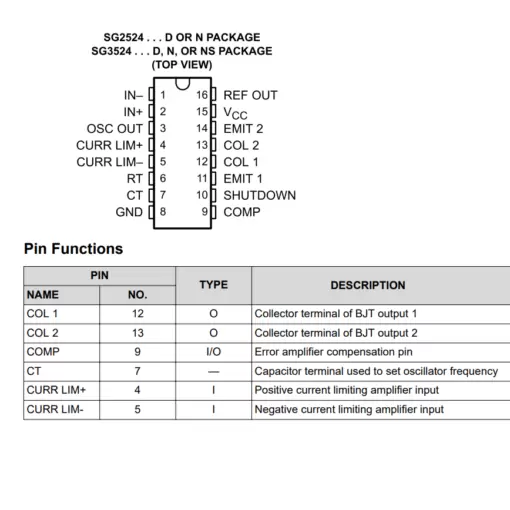

Description for the SG3524
The SG2524 and SG3524 devices incorporate all the functions required in the construction of a regulating power supply, inverter, or switching regulator on a single chip. They also can be used as the control element for high-power-output applications. The SG2524 and SG3524 were designed for switching regulators of either polarity, transformer-coupled dc-to-dc converters, transformerless voltage doublers, and polarity-converter applications employing fixed-frequency, pulse-width modulation (PWM) techniques. The complementary output allows either single-ended or push-pull application. Each device includes an on-chip regulator, error amplifier, programmable oscillator, pulse-steering flip-flop, two uncommitted pass transistors, a high-gain comparator, and current-limiting and shutdown circuitry.
Features for the SG3524
- Complete Pulse-Width Modulation (PWM) power-control circuitry
- Uncommitted outputs for single-ended or push-pull applications
- 8-mA (TYP) standby current
Specifications
| Product Attribute | Attribute Value |
| Product Category: | Switching Controllers |
| Topology: | Boost, Buck, Flyback, Forward, Push-Pull |
| Number of Outputs: | 2 Output |
| Switching Frequency: | 450 kHz |
| Duty Cycle – Max: | 45 % |
| Input Voltage: | 40 V |
| Output Voltage: | 4.6 V to 5.4 V |
| Output Current: | 50 mA |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| Mounting Style: | SMD/SMT |
| Package/Case: | SOIC-Narrow-16 |
| Fall Time: | 100 ns |
| Height: | 1.58 mm |
| Length: | 9.9 mm |
| Operating Supply Voltage: | 8 V to 40 V |
| Product Type: | Switching Controllers |
| Rise Time: | 200 ns |
