BUH1215 Bipolar BJT Transistor NPN 700V 22A 200W TO-3PN
The BUH1215 is a high-power NPN BJT transistor rated at 700V, 22A, 200W in a TO-3PN package, ideal for fast switching and CRT deflection.
130.00 EGP
In stockSKU 3496300087617
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
BUH1215 Bipolar BJT Transistor NPN 700V 22A 200W TO-3PN
The BUH1215 is a high-performance NPN bipolar junction transistor (BJT) designed for use in demanding power switching and high-voltage applications. It features a collector-emitter voltage of 700V, a collector current capability of 22A, and a maximum power dissipation of 200W, making it suitable for circuits requiring high efficiency and reliability. With its fast-switching characteristics, the BUH1215 is commonly used in horizontal deflection stages of CRT monitors and televisions, as well as in other high-voltage power conversion systems. Packaged in a TO-3PN case, it ensures excellent heat dissipation and robust operation, ideal for heavy-duty electronic applications.
Features
- High collector-emitter voltage rating up to 700V.
- High collector current capability up to 22A.
- Large power dissipation of 200W for heavy-duty operation.
- Fast switching speed for efficient performance in high-frequency circuits.
- Designed for horizontal deflection circuits in CRT monitors and TVs.
- Rugged TO-3PN package for excellent thermal stability and durability.
- Suitable for high-voltage power supply and power conversion applications.
- Reliable performance under high-stress operating conditions.
Pin Configuration
Specifications
| Parameter | Value |
| Category | BJT Transistor |
| Datasheet | BUH1215 |
| Package Type | TO-3PN |
| Mounting Type | Through Hole |
| Collector-Emitter Voltage (VCEO) | 700 V |
| Collector-Base Voltage (VCBO) | 1500 V |
| Emitter-Base Voltage (VEBO) | 9 V |
| Collector Current (IC) | 22 A |
| Base Current (IB) | 10 A |
| Power Dissipation (PD) | 200 W |
| DC Current Gain (hFE) | 5 – 40 |
| Transition Frequency (fT) | 4 MHz |
| Operating Junction Temperature (Tj) | 150 °C |
| Storage Temperature Range (Tstg) | -65 ~ +150 °C |

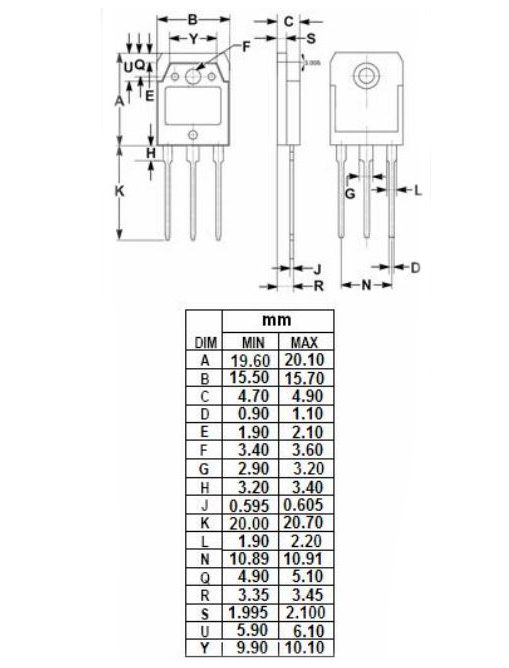

Dimensions
Applications
- Horizontal deflection circuits in CRT monitors and televisions.
- High-voltage, high-speed power switching applications.
- Power supply and inverter circuits.
- Pulse and line output stages in display systems.
- General-purpose high-current, high-voltage amplifiers.
- Industrial electronic equipment requiring fast switching and high reliability.
Package Contents
- 1 X BUH1215 Bipolar BJT Transistor NPN 700V 22A 200W TO-3PN
Datasheet
