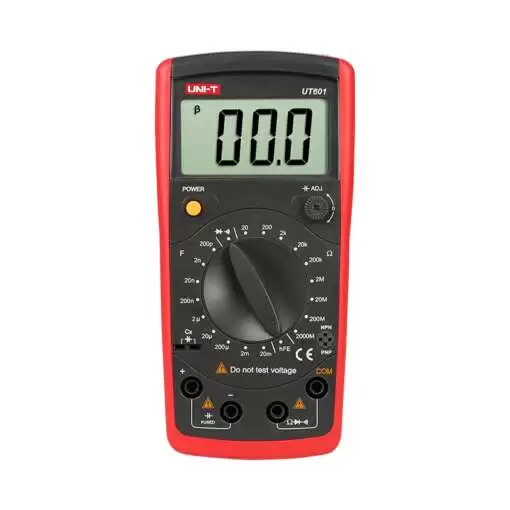

UT600 Series Digital Inductance Capacitance Meters
UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.
Features of UT600 Series Digital Inductance Capacitance Meters
Certifications: CE, UKCA
● Manual range
● Continuity buzzer
● Diode/transistor
● Low battery indication
Specifications of UT600 Series Digital Inductance Capacitance Meters
| Specifications | Range | UT601 | |
| Resistance (Ω) | 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ/2000MΩ | ±(0.8%+1) | |
| Capacitance (F) | 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2mF/20mF | ±(0.5%+10) | |
Features
| Display count | 2000 | |
| Manual range | √ | |
| Diode | √ | |
| Transistor | √ | |
| Continuity buzzer | √ | |
| Low battery indication | √ |
| General Characteristics | |
| Power | 9V battery (6F22) |
| Display | 61mm x 32 mm |
| Product color | Red and grey |
| Product net weight | UT601: 310g |
| Product size | 172mm x 83mm x 38mm |
Applications of UT600 Series Digital Inductance Capacitance Meters
