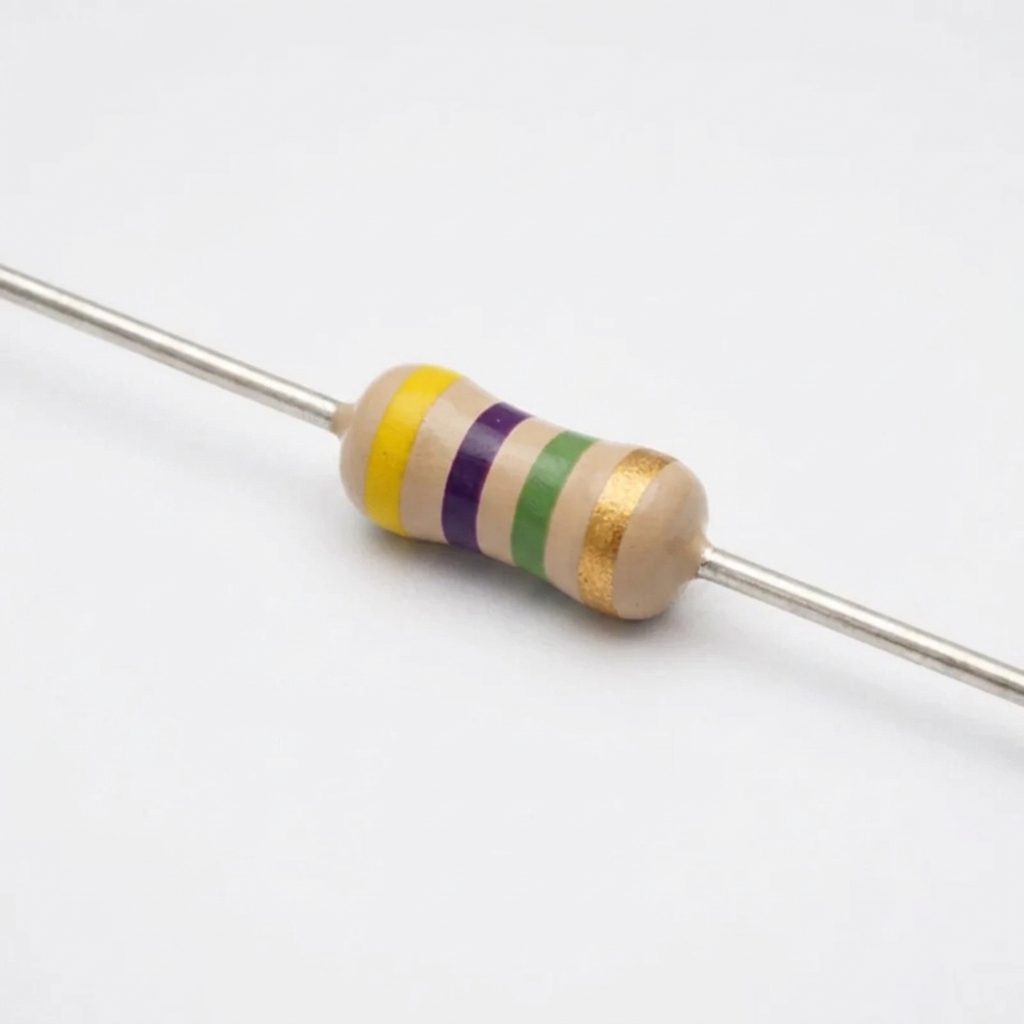

Carbon Resistor 4.7MΩ 0.125W Through Hole
The Carbon Resistor 4.7MΩ 0.125W Through Hole is a fixed-value axial carbon-film resistor designed for general-purpose electronic circuits. With a nominal resistance of 4.7MΩ and a 0.125W (1/8W) power rating, it is suitable for low-power applications where a high resistance value is required. Maker’s Electronics uses the same 0.125W through-hole carbon resistor format across its resistor range.
Features:
- 4.7MΩ nominal resistance.
- 0.125W (1/8W) power rating.
- ±5% tolerance.
- Carbon-film resistive element.
- Axial through-hole construction.
Specifications:
| Parameter | Value |
|---|---|
| Resistance | 4.7MΩ |
| Power Rating | 0.125W (1/8W) |
| Tolerance | ±5% |
| Technology | Carbon Film |
| Resistor Type | Fixed Resistor |
| Mounting Type | Through-Hole |
| Lead Configuration | Axial |
| Operating Temperature | -55°C to +155°C |
Applications:
- Voltage-divider circuits.
- Biasing networks.
- Pull-up and pull-down resistor networks.
- Signal conditioning circuits.
- Low-current electronic circuits.
- High-resistance feedback networks.
- Sensor interface circuits.
- Analog electronic circuits.
- Digital logic circuits.
- PCB prototyping and electronic repairs.
Package Include:
1x Carbon-Resistor 4.7MΩ 0.125W Through Hole.
