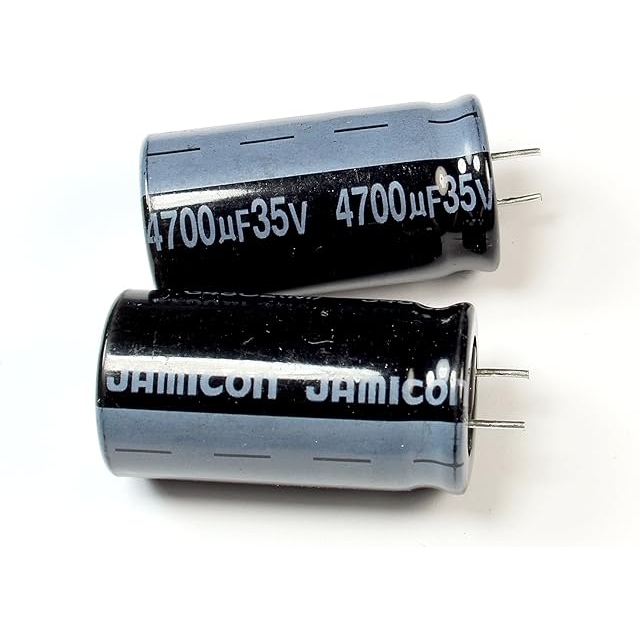

JAMICON Aluminum Electrolytic Capacitor 4700uF 35V 18x35mm Made in Taiwan (Short pins)
JAMICON Aluminum Electrolytic-Capacitor 4700uF 35V 18x35mm Made in Taiwan (Short Pins) is a high-capacitance radial electrolytic capacitor engineered for filtering, decoupling, and energy storage applications. With its large capacitance value and stable performance characteristics, it is widely used in switching power supplies, audio amplifiers, motor controllers, and industrial electronic equipment.
Features:
- High-capacitance aluminum electrolytic capacitor.
- 4700µF capacitance value.
- 35VDC rated voltage.
- Made in Taiwan.
- Radial through-hole mounting.
- Compact 18x35mm package size.
- Short-pin lead configuration.
Specifications:
| Capacitance | 4700μF |
| Rated Voltage | 35VDC |
| Capacitance Tolerance | ±20% |
| Construction | Radial Can |
| Mounting Type | Through Hole |
| Can Diameter | 18mm |
| Can Height | 35mm |
| Lead Spacing | 7.5mm |
| Lead Length | Short Pins |
| Polarity | Polar |
| Temperature Rating | 85°C |
Dimension:
Applications:
- Voltage smoothing in switch-mode power supplies.
- Filtering in audio amplifiers and crossover networks.
- Energy storage in DC motor start circuits.
- Bulk capacitance in LED drivers and battery chargers.
- Stabilization in automotive electronics and industrial controls.
Package Include:
1x JAMICON Aluminum Electrolytic-Capacitor 4700uF 35V 18x35mm Made in Taiwan (Short pins)
