chang Electrolytic Capacitor 100uF 50V 8x12mm
100µF 50V polarized aluminum electrolytic capacitor with 8x12mm body, radial through-hole construction, and 105°C rating.
1.50 EGP
Buy Nowchang Electrolytic Capacitor 100uF 50V 8x12mm
The Electrolytic-Capacitor 100uF 50V 8x12mm is a polarized aluminum electrolytic capacitor designed for general-purpose electronic circuits. It provides a capacitance of 100µF with a rated voltage of 50VDC and is suitable for applications requiring energy storage, filtering, smoothing, and decoupling. Matching component references identify this format as a general-purpose radial electrolytic capacitor.
Features:
- 100µF capacitance.
- 50VDC rated voltage.
- ±20% capacitance tolerance.
- 105°C maximum operating temperature.
- Aluminum electrolytic construction.
- Polarized capacitor.
- Radial through-hole design.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Aluminum Electrolytic-Capacitor |
| Capacitance | 100µF |
| Rated Voltage | 50VDC |
| Tolerance | ±20% |
| Temperature Rating | 105°C |
| Polarity | Polarized |
| Mounting Type | Through Hole |
| Lead Configuration | Radial |

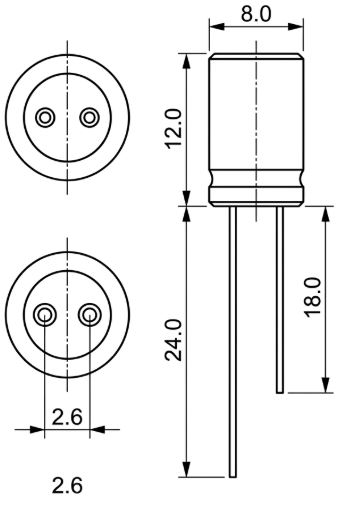

| Body Diameter | 8mm |
| Body Length | 12mm |
| Lead Pitch | 2.6mm |
| Long Pin Length | 24mm |
| Short Pin Length | 18mm |
Applications:
- Power supply filtering.
- DC voltage smoothing.
- Power rail decoupling.
- Voltage stabilization circuits.
- General-purpose electronic circuits.
- Through-hole PCB assemblies.
- Electronic repair and maintenance.
- DIY electronics projects.
- Audio and signal circuits.
- Consumer electronic equipment.
Package Include:
1x chang Electrolytic-Capacitor 100uF 50V 8x12mm
