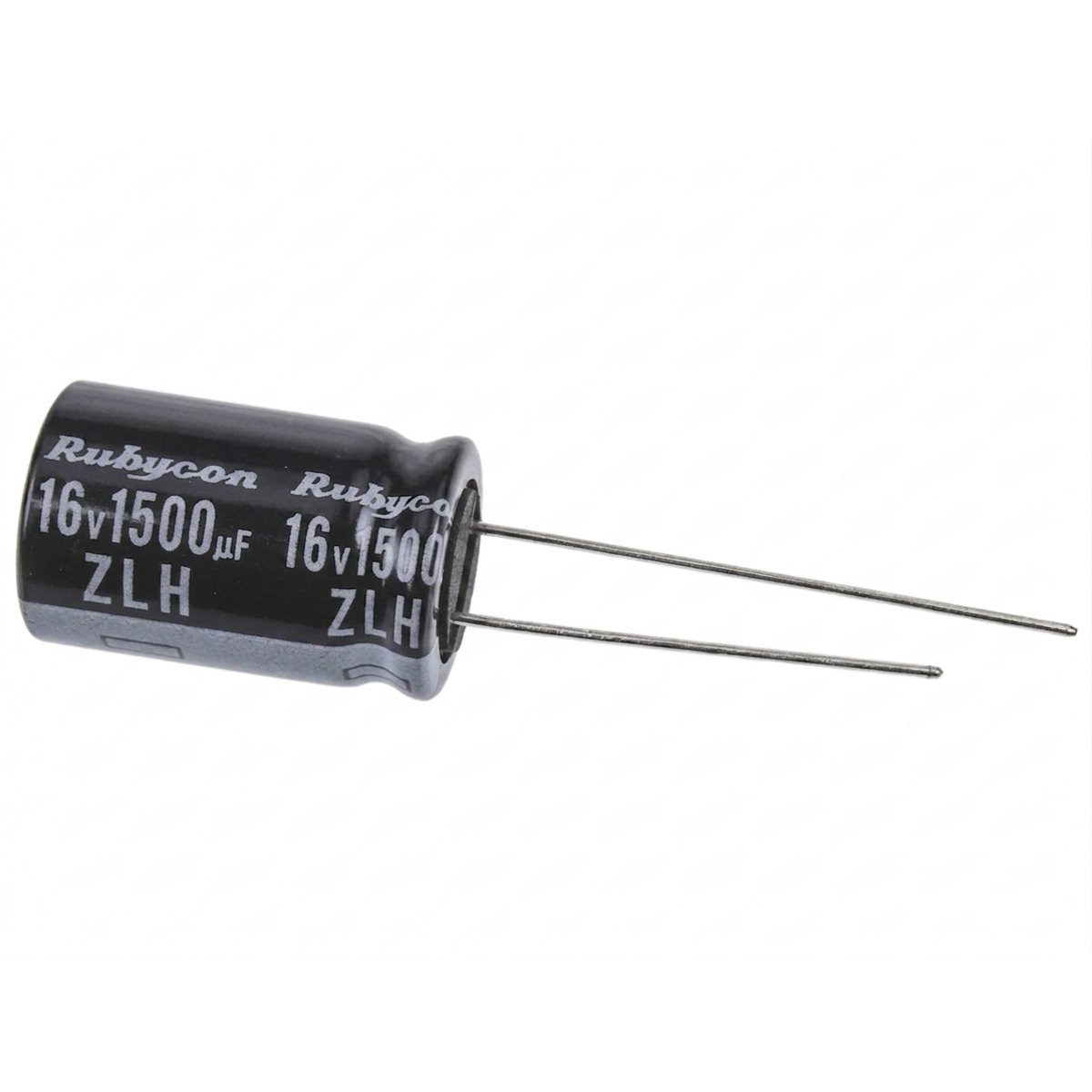

Rubycon Aluminum Electrolytic Capacitor 1500uF 16V 10x16mm
The Rubycon ZLH series features premium, miniaturized radial lead aluminum electrolytic capacitors engineered for low impedance and an exceptionally long operational lifespan. This high-reliability component is fully RoHS compliant and comes equipped with a protective PET sleeve. It is designed to deliver stable performance across a wide temperature range, making it ideal for demanding electronic circuits.
Features
- Miniaturized Size
- Ultra-Long Life
- Low Impedance
- Eco-Friendly Construction
- Excellent Temperature Stability
Specifications
| Specification Item | Technical Details / Value |
|---|---|
| General Product Information | |
| Brand | Rubycon |
| Series | ZLH Series |
| Configuration | Radial Lead Aluminum Electrolytic Capacitor |
| Electrical Characteristics | |
| Nominal Capacitance | 1500 µF |
| Rated Voltage | 16 Vdc |
| Capacitance Tolerance | ±20% |
| Category Temperature Range | -40°C to +105°C |
| Rated Endurance Life | 10,000 Hours at 105°C |
| Max Leakage Current | I = 0.01CV or 3 µA, whichever is greater (After 2 minutes of applying rated voltage) |

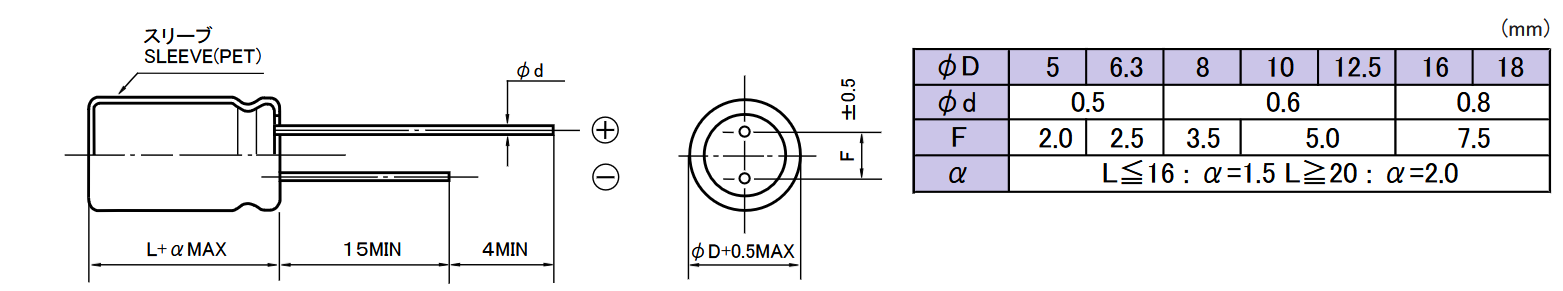

| Physical & Dimensions Data | |
| Actual Stock Dimensions | 10 x 16 mm (Diameter x Length) |
| Body Diameter (⌀D) | 10 mm (+0.5 mm MAX) |
| Lead Wire Diameter (⌀d) | 0.6 mm |
| Lead Spacing (F) | 5.0 mm (±0.5 mm tolerance) |
Applications
- High-Frequency Filtering
- Long-Life Electronic Designs
- Low-Impedance Power Rails
Package Content
- 1 x Rubycon Aluminum Electrolytic Capacitor 1500uF 16V 10x16mm
