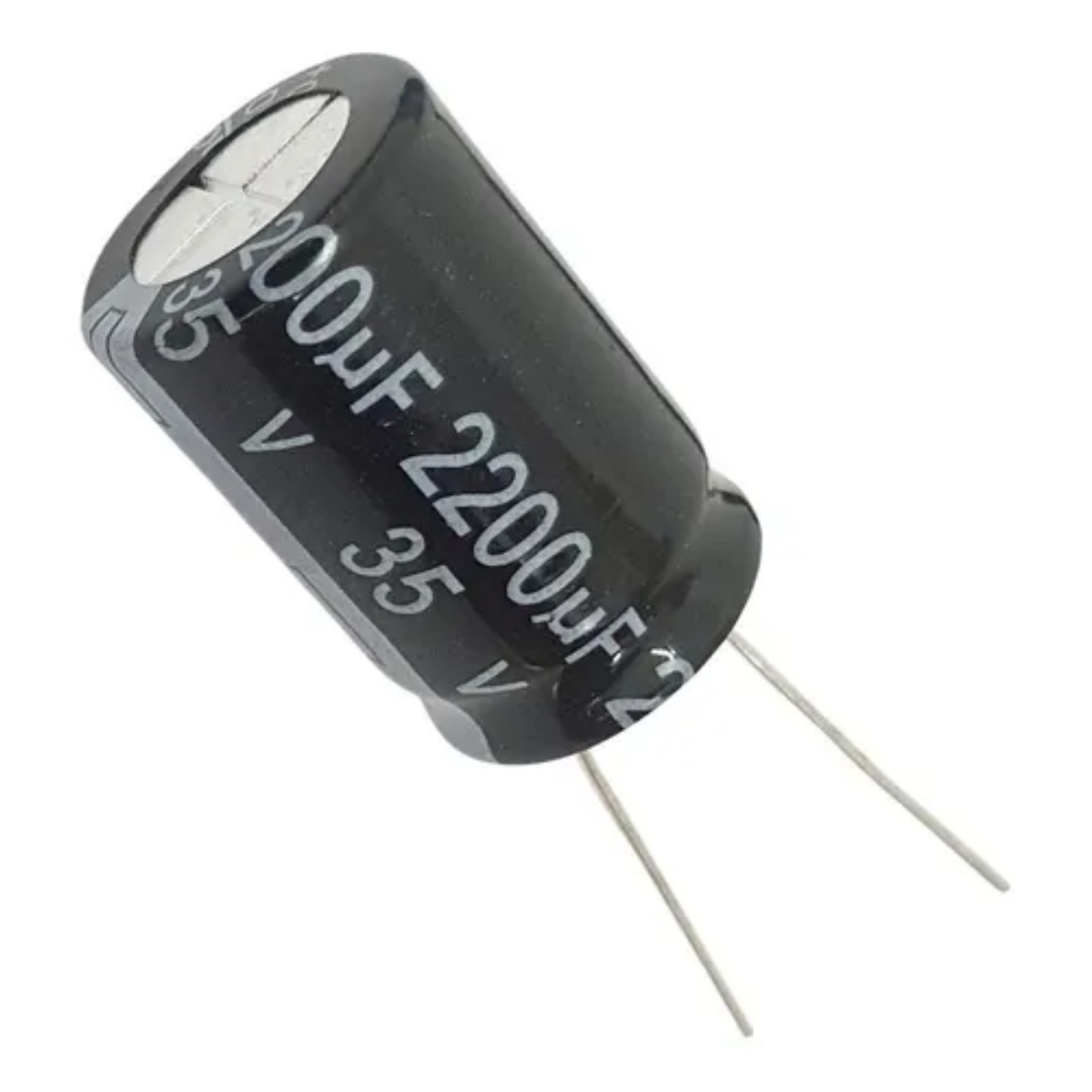

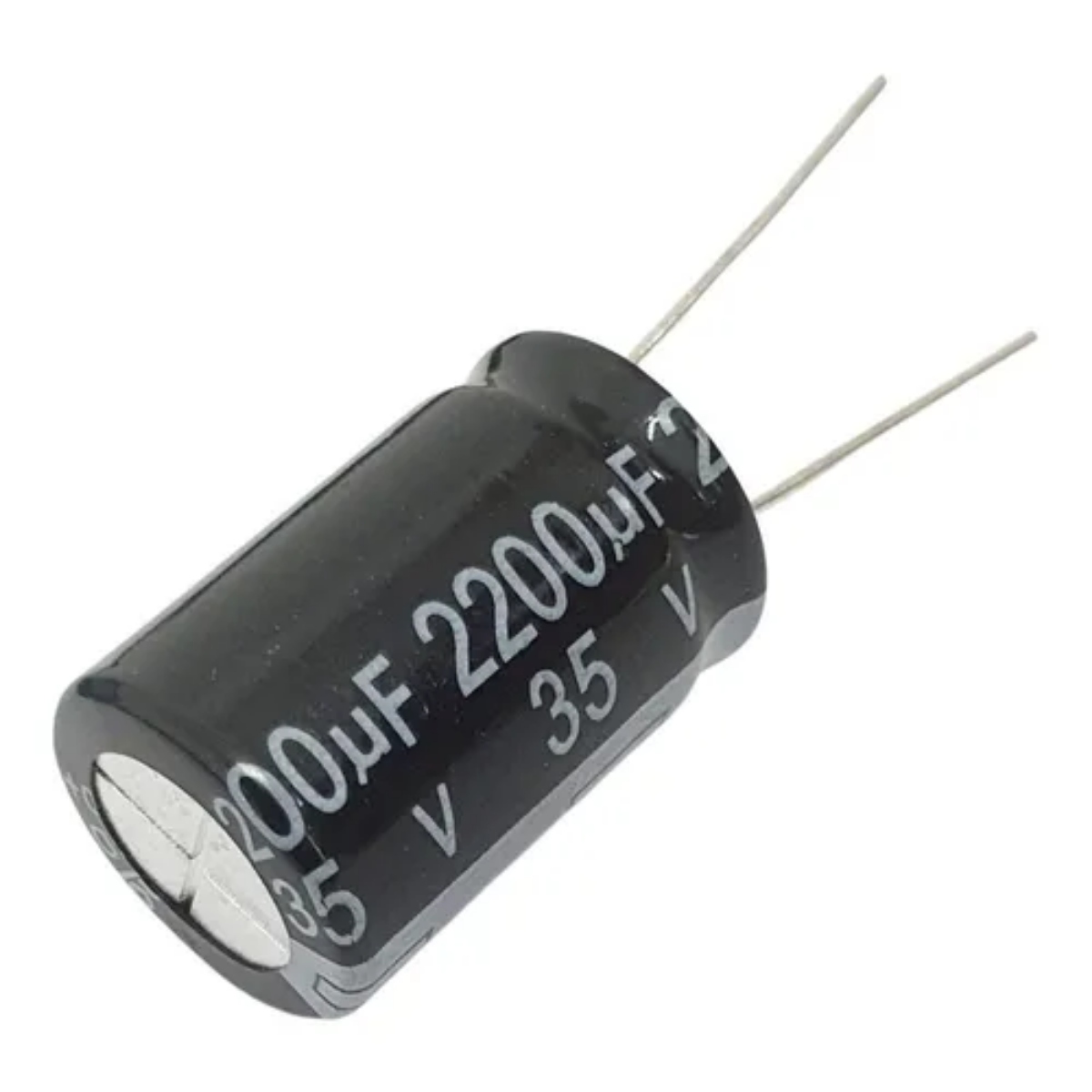

Chong Electrolytic Capacitor 2200uF 35V 16x25mm
The Chong 2200uF 35V Electrolytic Capacitor is a polarized through-hole capacitor designed for filtering and smoothing applications in electronic circuits and power supplies. With a capacitance value of 2200 microfarads and a 35V rating, this capacitor is commonly used to reduce voltage ripple, stabilize DC output, and improve power quality in amplifiers, SMPS circuits, motor drivers, and embedded electronics. The radial lead design and compact 16x25mm package make it suitable for PCB mounting in general electronic applications.
This capacitor is widely used in consumer electronics, industrial control systems, audio equipment, LED drivers, and repair projects where reliable energy storage and filtering are required. Typical specifications for similar 2200uF 35V capacitors include radial through-hole mounting, 7.5mm lead spacing, and operating temperatures up to 105°C. Electronics communities frequently recommend matching capacitance values and using equal or higher voltage ratings when replacing electrolytic capacitors in repair applications.
Features:
- High capacitance electrolytic capacitor.
- Polarized radial through-hole design.
- Suitable for power supply filtering.
- Compact cylindrical aluminum body..
- Stable DC voltage smoothing
- Reliable energy storage capability.
- Suitable for PCB mounting.
- Designed for electronic circuit applications.
- Low leakage characteristics.
- High-temperature operation support.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Electrolytic Capacitor |
| Brand | Chong |
| Contry | China |
| Capacitance | 2200uF |
| Rated Voltage | 35V |
| Capacitor Type | Polarized Electrolytic |
| Mounting Type | Through Hole (THT) |
| Lead Type | Radial |
| Body Size | 16 × 25 mm |
| Lead Pitch | 7.5 mm |
| Tolerance | ±20% |
| Operating Temperature | Up to 105°C |
Mechanical Drawing:
Applications:
- Power supply filtering.
- DC voltage smoothing.
- Audio amplifier circuits.
- SMPS power circuits.
- Motor driver boards.
- LED power supplies.
- Embedded electronics.
- Industrial control systems.
- Consumer electronics repair.
- Arduino and DIY electronics projects.
Package Included:
- 1x Chong Electrolytic Capacitor 2200uF 35V 16x25mm.
