SAMYOUNG Aluminum Electrolytic Capacitor 100µF 450V 18x36mm Made in South Korea
The SAMYOUNG Aluminum Electrolytic Capacitor 100µF is designed for electronic circuits that require capacitance for filtering, smoothing, and energy storage. Its polarized construction makes it suitable for DC power supply circuits, where it helps reduce voltage ripple and stabilize voltage after rectification. Manufactured in South Korea, this capacitor is suitable for various electronic equipment and power conversion applications.
With its radial through-hole construction, this capacitor can be mounted directly onto compatible printed circuit boards. It is suitable for power supply repairs, electronic equipment maintenance, and circuit assembly where a 100µF capacitor with a high voltage rating is required. Correct polarity and operating voltage must be observed during installation to ensure safe and reliable operation.
Features
- 100 µF capacitance with ±20 % tolerance.
- 450 VDC voltage rating for high-voltage circuits.
- Endurance of 5,000 h at 105 °C for long life.
- High ripple-current capacity.
- Low-impedance design to minimize power loss and heat.
- Operating temperature range from –40 °C to +105 °C.
Specifications
| Specification | Value |
|---|---|
| Brand | SAMYOUNG |
| Component Type | Aluminum Electrolytic Capacitor |
| Capacitance | 100µF |
| Rated Voltage | 450V DC |
| Polarity | Polarized |
| Mounting Type | Through-Hole |
| Terminal Style | Radial |

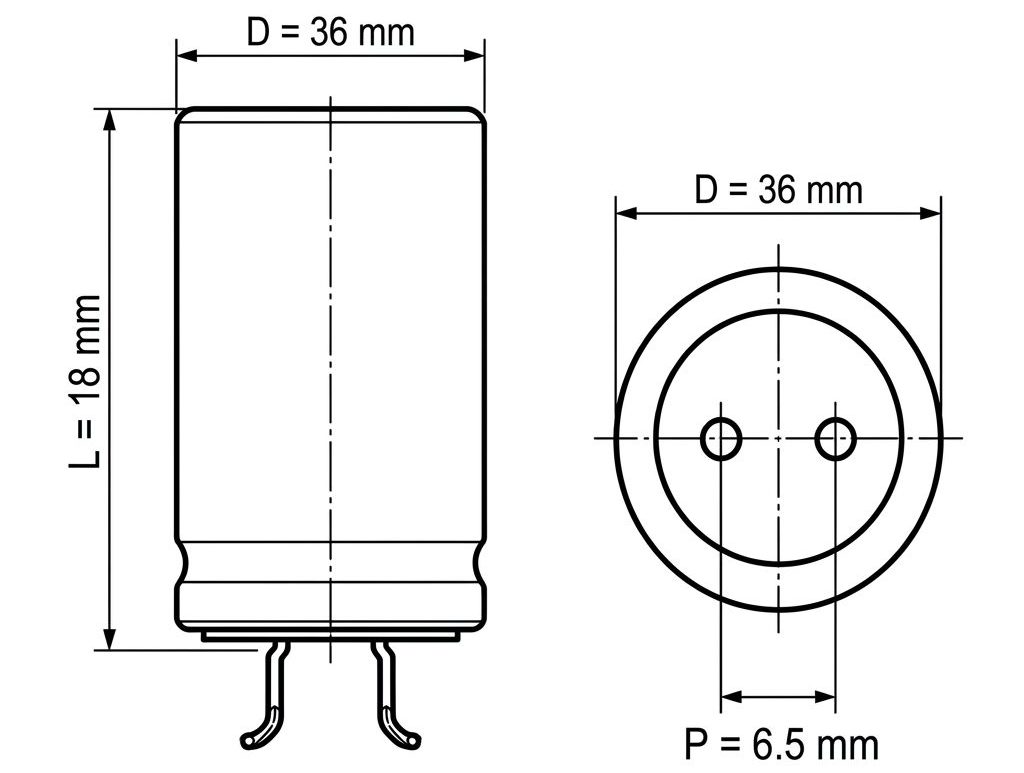

| Dimensions | 18 × 36mm |
| Country of Origin | South Korea |
Applications
- Bulk filtering and smoothing in high-voltage power supplies.
- Snubber circuits and surge suppression.
- Industrial inverters and UPS systems.
- High-voltage LED drivers and lighting power supplies.
- General-purpose high-voltage electrolytic applications.
Package Contents
- 1x SAMYOUNG Aluminum Electrolytic Capacitor 100µF 450V 18x36mm Made in South Korea.
