CC-40700C Slim Waterproof LED Driver 5-40VDC 0.7A 28W IP67

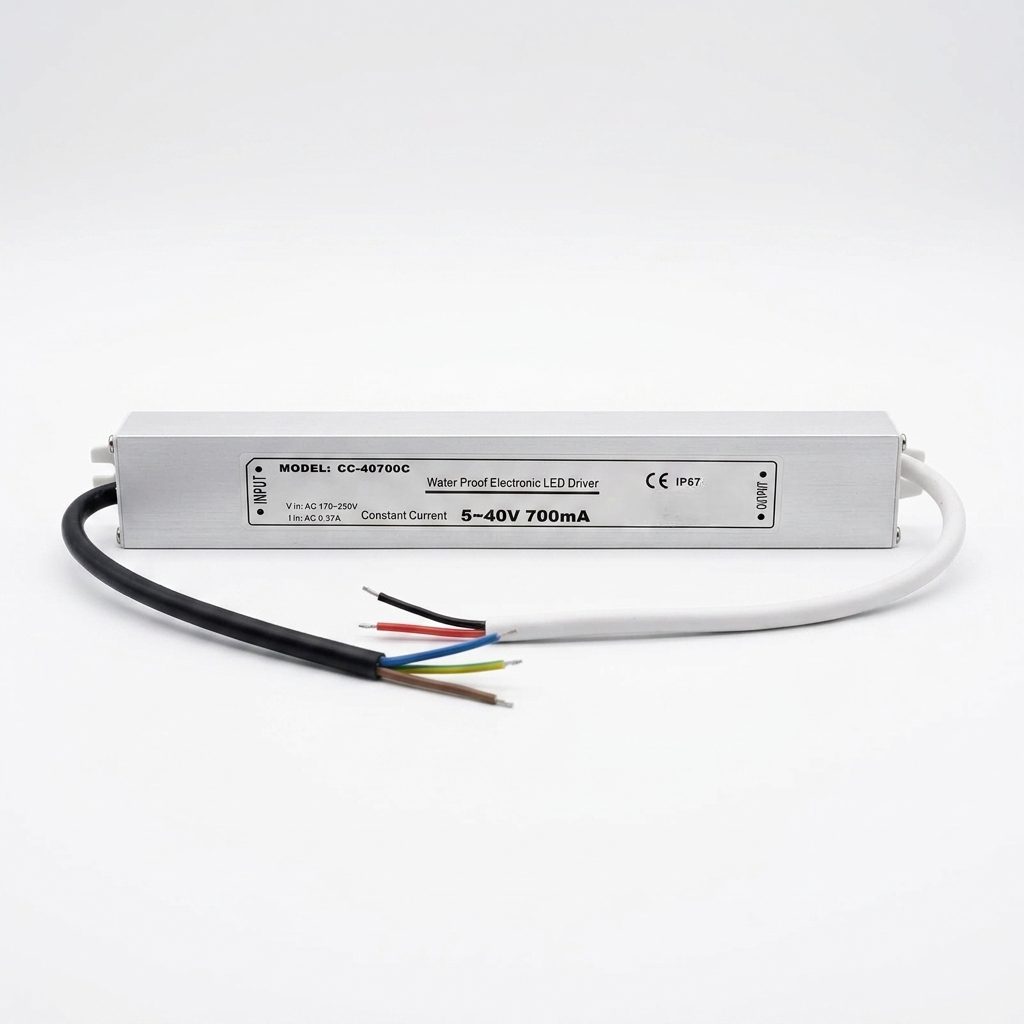

The CC-40700C Slim Waterproof LED Driver 5-40VDC 0.7A 28W IP67 is a compact constant-current electronic LED driver designed to provide a regulated current output for compatible LED lighting applications. The model number CC-40700C is clearly marked on the supplied product label, which also identifies the unit as a Water Proof Electronic LED Driver and specifies Constant Current, 5–40V, 700mA, and 28W.
Features:
- CC-40700C constant-current LED driver.
- 700mA rated constant-current output.
- 700±30mA output current according to the product label.
- 5–40VDC output voltage range.
- 28W rated output power.
- 170–250VAC input voltage range.
- 0.37A labeled input current.
- IP67-rated waterproof enclosure.
- Slim 200mm-long housing.
- Compact 21mm width and 30mm height.
Specifications:
| Parameter | Value |
|---|---|
| Model | CC-40700C |
| Product Type | Waterproof Electronic LED Driver |
| Driver Type | Constant Current |
| Input Voltage | 170–250VAC |
| Input Current | 0.37A |
| Output Voltage | 5–40VDC |
| Output Current | 700±30mA |
| Nominal Output Current | 0.7A |
| Output Power | 28W |
| Protection Rating | IP67 |
| Certification Marking | CE |
| Input Conductors | Brown, Blue, Yellow/Green |
| Output Conductors | Brown, Blue |
| Input Cable Length | 18cm |
| Output Cable Length | 18cm |
| Housing Length | 200mm |
| Housing Width | 21mm |
| Housing Height | 30mm |
Wire Configuration:
| Wire Configuration | Function |
| Brown – Input | AC Live (L) input. |
| Blue – Input | AC Neutral (N) input. |
| Yellow/Green – Input | Protective Earth (PE) / Ground. |
| Brown – Output | DC Positive (+) output. |
| Blue – Output | DC Negative (−) output. |
Applications:
- Constant-current LED lighting systems.
- High-power LED modules requiring 700mA drive current.
- Compatible LED arrays.
- Architectural LED lighting.
- Decorative LED lighting.
- Display and cabinet LED lighting.
- Signage and advertising LED lighting.
- Other compatible LED loads requiring approximately 700mA constant-current
Package Include:
1x CC-40700C Slim Waterproof LED-Driver 5-40VDC 0.7A 28W IP67
