CC-80350C Slim Waterproof LED Driver 55-80VDC 0.35A 30W IP67

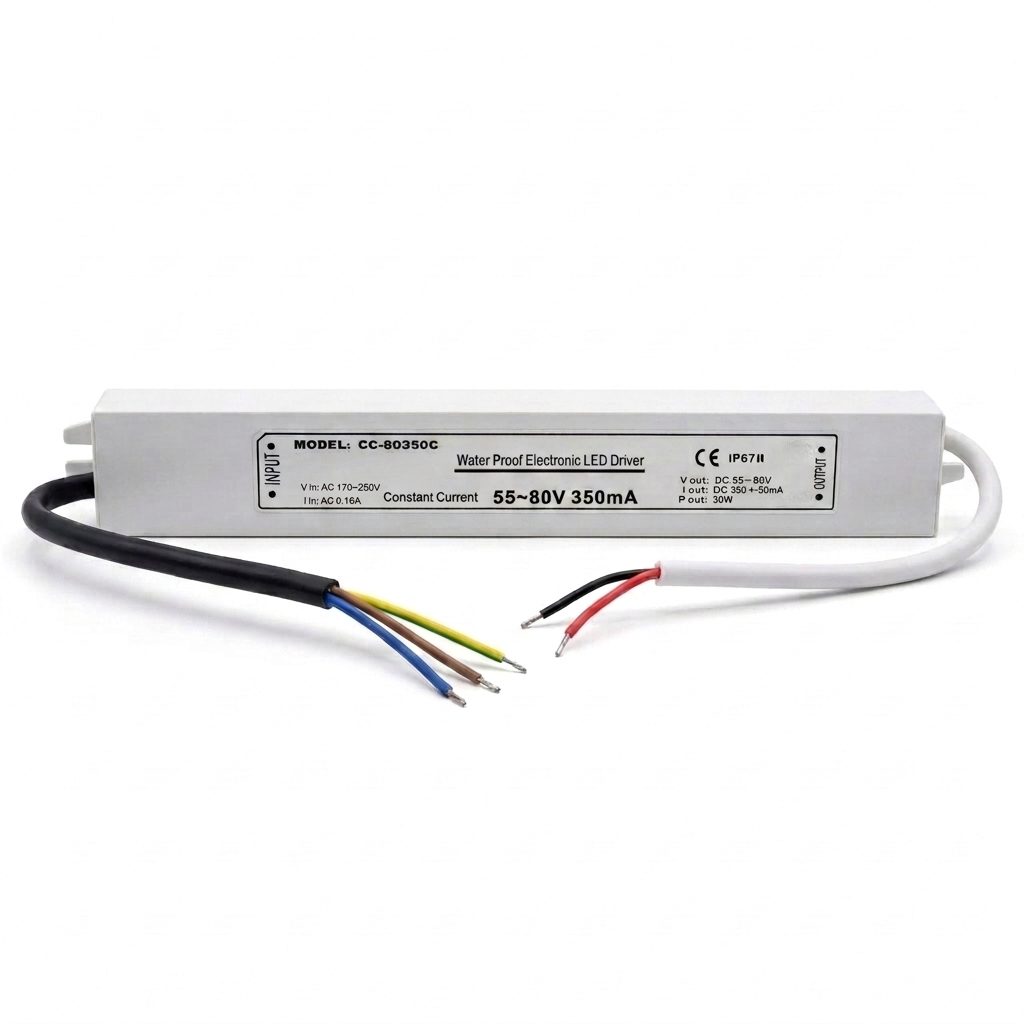

The CC-80350C Slim Waterproof LED Driver 55-80VDC 0.35A 30W IP67 is a compact constant-current electronic LED driver designed to provide a regulated current supply for compatible LED lighting systems. The product label identifies the unit as model CC-80350C and specifies Constant Current, 55–80V, 350mA, and 30W output characteristics.
Features:
- CC-80350C constant-current LED driver.
- 350mA nominal constant-current output.
- 350±50mA output current according to the product label.
- 55–80VDC output voltage range according to the supplied unit.
- 30W rated output power.
- 170–250VAC input voltage range.
- IP67-rated waterproof enclosure.
Specifications:
| Parameter | Value |
|---|---|
| Model | CC-80350C |
| Product Type | Waterproof Electronic LED Driver |
| Driver Type | Constant Current |
| Input Voltage | 170–250VAC |
| Output Voltage | 55–80VDC |
| Output Current | 350±50mA |
| Nominal Output Current | 0.35A |
| Output Power | 30W |
| Output Type | Constant Current |
| Protection Rating | IP67 |
| Input Conductors | Brown, Blue, Yellow/Green |
| Output Conductors | Brown, Blue |
| Input Cable Length | 18cm |
| Output Cable Length | 18cm |
| Housing Length | 200mm |
| Housing Width | 21mm |
| Housing Height | 30mm |
Wire Configuration:
| Wire Configuration | Function |
|---|---|
| Brown – Input | AC Live (L) input. |
| Blue – Input | AC Neutral (N) input. |
| Yellow/Green – Input | Protective Earth (PE) / Ground. |
| Brown – Output | DC Positive (+) output. |
| Blue – Output | DC Negative (−) output. |
Applications:
- 350mA constant-current LED lighting systems.
- High-voltage LED modules requiring approximately 350mA.
- Compatible LED arrays.
- Architectural LED lighting.
- Decorative LED lighting.
- Display and cabinet LED lighting.
- Signage and advertising LED lighting.
- Indoor LED lighting installations.
- Suitable outdoor LED lighting installations when the complete installation meets the required environmental protection.
- Other compatible 350mA constant-current LED applications.
Package Include:
1x CC-80350C Slim Waterproof LED-Driver 55-80VDC 0.35A 30W IP67.
