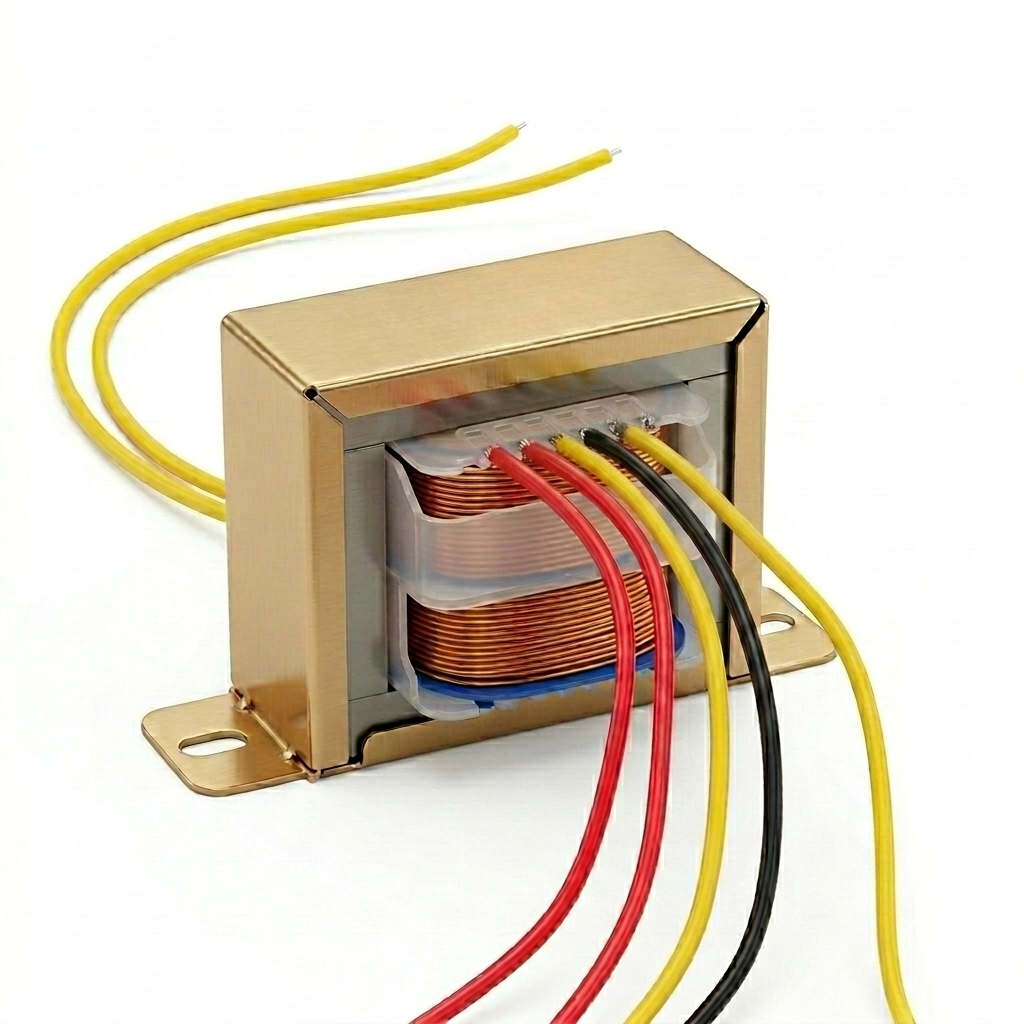

Center Tapped Step Down Transformer 220V 18V-0-18V / 9V 2A
The Center Tapped Step Down Transformer 220V 18V-0-18V / 9V 2A is a laminated EI-core power transformer designed for AC voltage conversion in audio amplifiers, analog power supplies, DIY electronics projects, rectifier circuits, and industrial control systems. The transformer converts standard 220VAC mains voltage into multiple low-voltage AC outputs suitable for dual-rail and auxiliary power applications.
Features:
- 220VAC primary input operation.
- Multi-tap center-tapped secondary winding.
- 18V-0-18VAC center-tapped output.
- Additional 9VAC intermediate taps.
- 2A maximum output current.
- Laminated EI-core transformer construction.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Center Tapped Step Down Transformer |
| Primary Voltage | 220VAC 50Hz |
| Primary Connection Wires | 2 Wires |
| Secondary Output 1 | 18V-0-18VAC |
| Secondary Output 2 | 9VAC |
| End-to-End Voltage | 36VAC |
| Maximum Output Current | 2A |
| Secondary Configuration | Dual Secondary |
| Center Tap Output | Yes |
| Secondary Connection Wires | 5 Wires |
| Transformer Type | EI Laminated Core |
| Output Type | AC |
| Connection Type | Flying Leads |
| Frequency | 50Hz |
| Mounting Type | Chassis Mount |
| Application Type | Linear Power Supply |
Configuration:
| Wire Color | Function/Description |
|---|---|
| Yellow Primary Wires | 220VAC mains input connection. |
| Yellow Secondary Wires | 18VAC outer secondary outputs. |
| Black Secondary Wire | Center Tap (0V Reference). |
| Red Secondary Wires | Separate isolated 9VAC output winding. |
Applications:
- Audio amplifier power supplies.
- Dual-rail DC power supply circuits.
- Battery charging systems.
- DIY electronics projects.
- Analog circuit applications.
- Rectifier and regulator circuits.
- Laboratory power systems.
- Industrial control electronics.
Package Include:
1x Center Tapped Step Down Transformer 220V 18V-0-18V / 9V 2A
