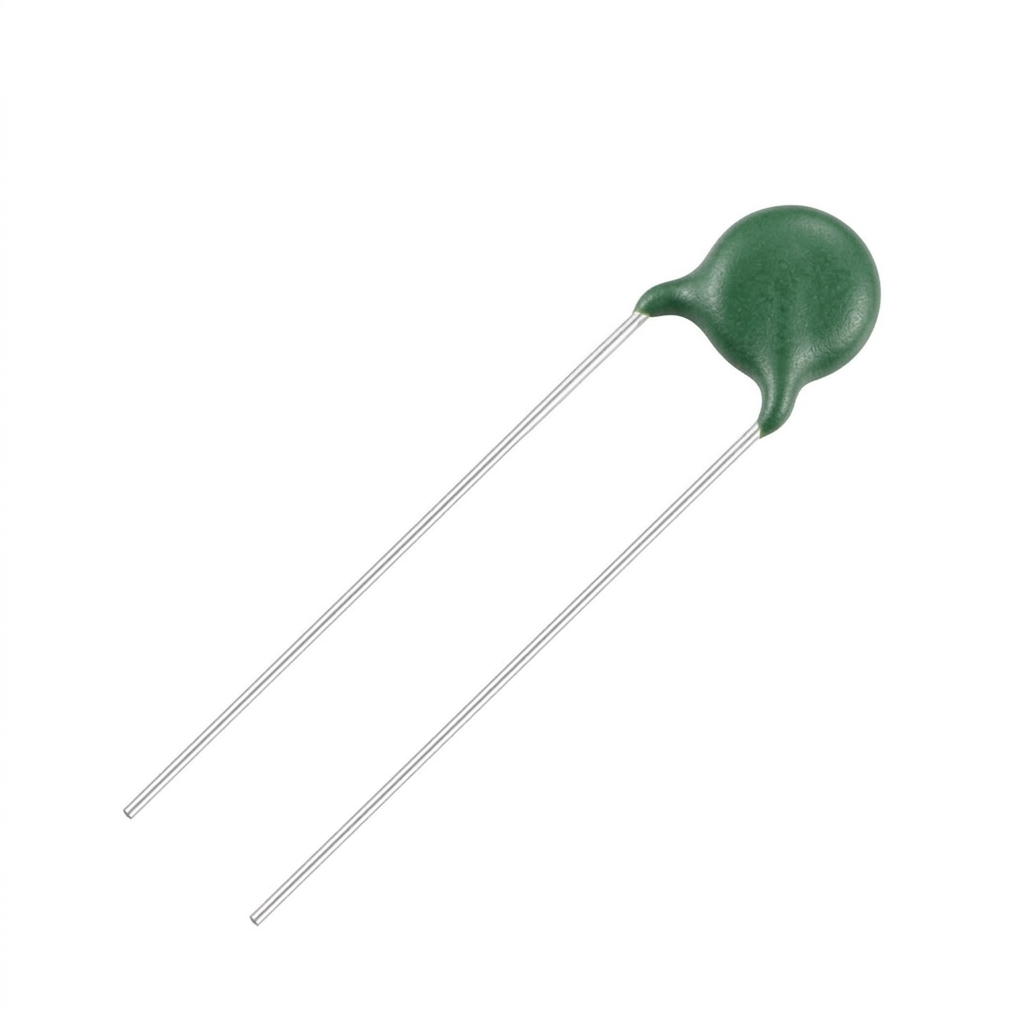

Ceramic Capacitor 1.2pF 50V
The Ceramic Capacitor 1.2pF 50V is a compact through-hole capacitor designed for high-frequency coupling, filtering, tuning, bypass, and RF signal applications. It utilizes a ceramic dielectric material that provides stable capacitance characteristics, low loss performance, and reliable long-term operation in electronic circuits. The capacitor is suitable for use in communication equipment, oscillators, RF circuits, signal processing stages, and general-purpose electronic applications.
Features:
- Stable ceramic disc construction for reliable performance.
- Low cost for economical designs.
- Compact 4mm body diameter for space-constrained applications.
- RoHS compliant for environmentally friendly designs.
- Suitable for high-frequency and RF applications.
- Standard through-hole mounting for easy assembly.
Specifications:
| Parameter | Value |
|---|---|
| Capacitor Type | Ceramic Disc Capacitor |
| Capacitance | 1.2pF |
| Voltage Rating | 50V |
| Tolerance | ±20% |
| Typical Marking Code | 1.2 |
| Body Diameter | 4mm |
| Lead Pitch | 2mm (measured) / 3mm (typical spec) |
| Operating Temperature Range | +10°C to +85°C |
| Dielectric Withstand Voltage | 2.5x rated voltage (125V) |
| Mounting Style | Through-Hole |
| Package Type | Ceramic Disc with Radial Leads |
Applications:
- High-frequency circuit tuning.
- RF and microwave applications.
- Oscillator and timing circuits.
- Filter networks.
- Coupling and decoupling circuits.
- General purpose electronic projects.
Package Include:
1x Ceramic Capacitor 1.2pF 50V.
