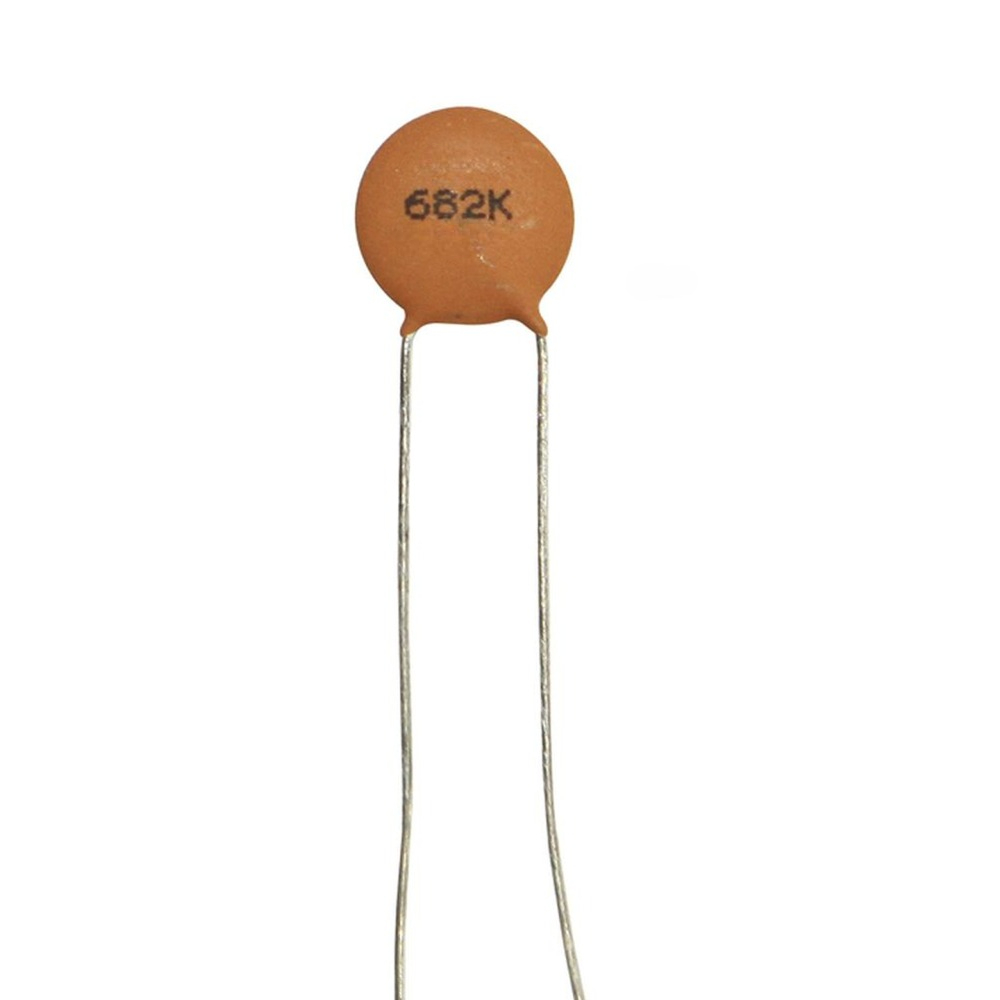

Ceramic Capacitor 6.8nF 50V
The Ceramic-Capacitor 6.8nF 50V is a through-hole ceramic-capacitor designed for general-purpose electronic circuits requiring a 6.8nF capacitance value and a 50V rated voltage. Its compact construction makes it suitable for installation on printed circuit boards, breadboards, and other through-hole electronic assemblies.
Features:
- 6.8nF nominal capacitance.
- 50V rated voltage.
- ±20% capacitance tolerance.
- Through-hole mounting.
- Ceramic capacitor construction.
- Compact 5mm diameter body.
Specifications:
| Parameter | Value |
|---|---|
| Component Type | Ceramic-Capacitor |
| Capacitance | 6.8nF |
| Rated Voltage | 50V |
| Tolerance | ±20% |
| Capacitance Range | 5.44nF–8.16nF |
| Mounting Type | Through Hole |

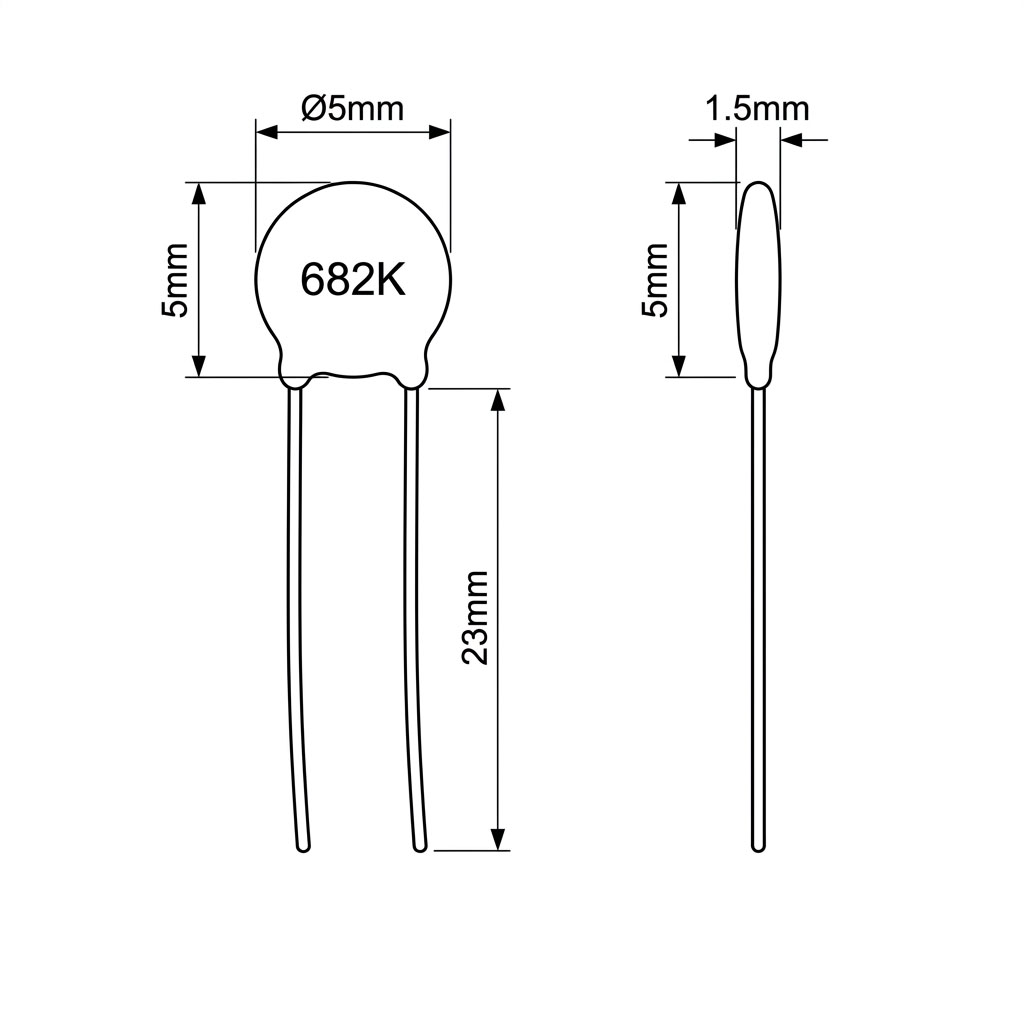

| Body Diameter | 5mm |
| Body Height | 5mm |
| Body Thickness | 1.5mm |
| Lead Length | 23mm |
| Pitch | 5mm |
Applications:
- Signal filtering circuits.
- Noise suppression circuits.
- Signal coupling circuits.
- Bypass circuits.
- Decoupling applications.
- Oscillator and timing circuits.
- Signal conditioning circuits.
- Control circuits.
- Electronic prototyping.
- Breadboard projects.
- PCB assemblies.
- General-purpose electronic repair.
Package Include:
1x Ceramic-Capacitor 6.8nF 50V.
