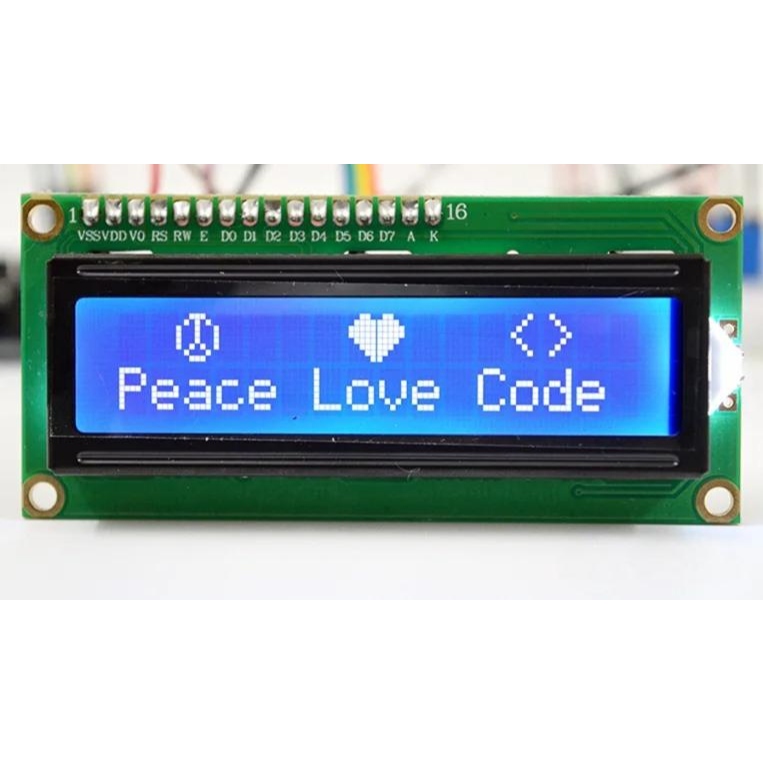

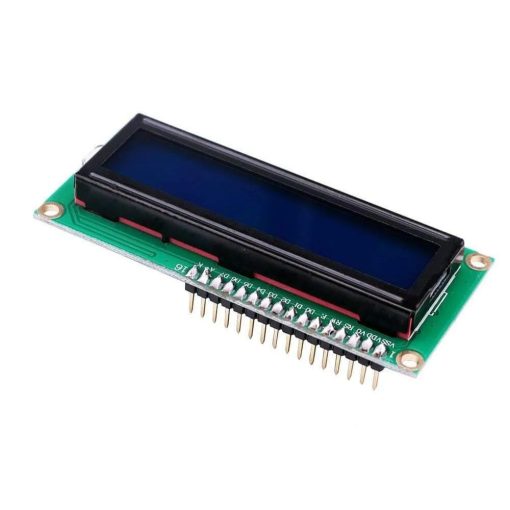

Character LCD Blue 2×16 with Pin Header
The Character LCD Blue 2×16 is a high-quality display module that features a 2-row by 16-character layout. This module is designed for use in a variety of electronic applications, especially in projects involving microcontrollers such as Arduino. It is equipped with a blue backlight that provides clear visibility in low-light environments.
Features:
- 2×16 character display with blue backlight.
- HD44780 compatible controller for ease of use with Arduino and other platforms.
- Supports both I2C and parallel communication modes.
- Low power consumption for energy-efficient operation.
- Easy integration with breadboards thanks to soldered male pin headers.
Specifications:
| Parameter | Value |
|---|---|
| Display Format | 16×2 |
| Backlight | Blue LED |
| Controller | HD44780 compatible |
| Supply Voltage | 5V |
| Interface | 4-bit/8-bit parallel |

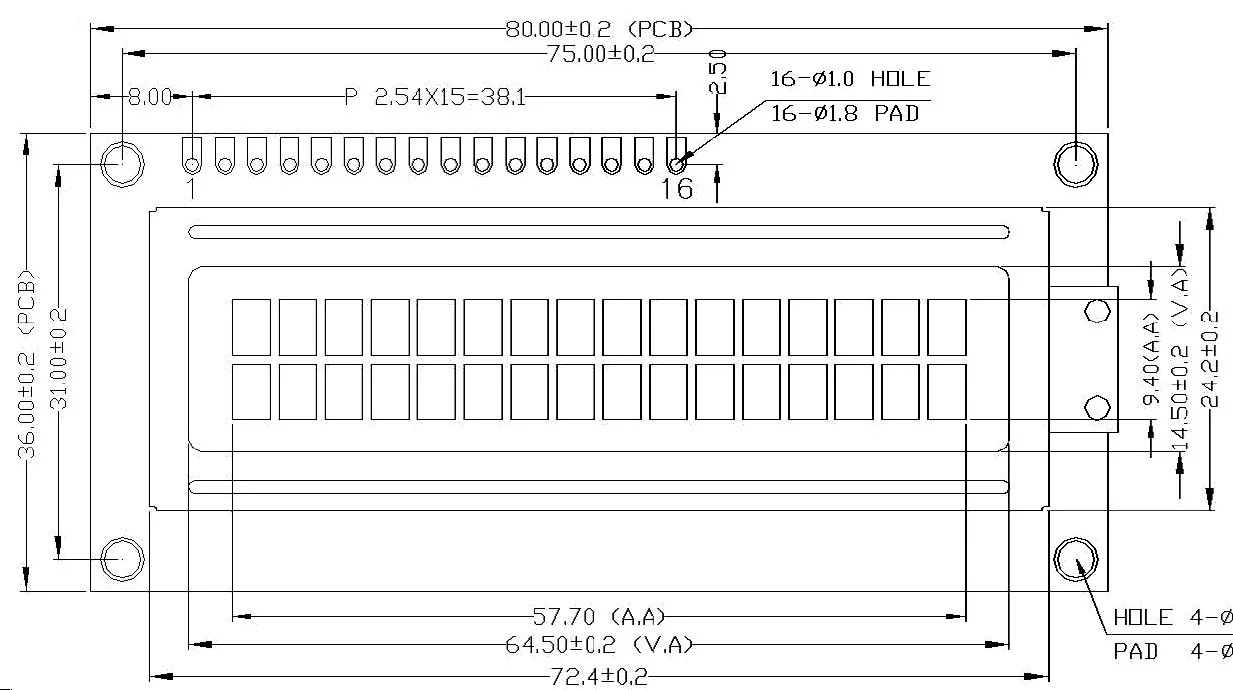

| Module Dimensions | 80mmx36mmx13.5mm |
| Operating Temperature | -20°C to 70°C |
| Pin Header | Soldered male 16-pin |
Pin Configuration:
Applications:
- Arduino and microcontroller status displays.
- Measurement and testing instruments.
- DIY electronics and hobbyist projects.
- Embedded system user interfaces.
- Robotics and automation panels.
- Real-time data monitoring devices.
- Educational and prototyping applications.
Package Include:
1x Character LCD Blue 2×16 Display Module with Soldered Male Pin Header.
