Chip Resistor SMD 10kΩ ±1% 62.5mW ±100ppm/℃ 0402
The Chip-Resistor SMD 10kΩ ±1% 62.5mW ±100ppm/℃ 0402 is a high-quality surface-mount thick-film resistor designed for precision current limiting, voltage division, pull-up and pull-down networks, signal conditioning, and general-purpose electronic applications. Its ultra-compact 0402 (1005 Metric) package makes it ideal for high-density PCB layouts used in modern consumer, industrial, automotive, and communication equipment.
Features
- Thick-film chip resistor.
- Surface-mount (SMD/SMT) package.
- 10kΩ resistance value.
- ±1% resistance tolerance.
- 62.5mW (1/16W) power rating.
- 50V maximum working voltage.
Specifications
| Attribute | Value |
| Category | Resistors/Chip Resistor – Surface Mount |
| Power(Watts) | 62.5mW |
| Type | Thick Film Resistors |
| Overload Voltage (Max) | 50V |
| Temperature Coefficient | ±100ppm/℃ |
| Tolerance | ±1% |
| Operating Temperature Range | -55℃~+155℃ |
| Resistance | 10kΩ |

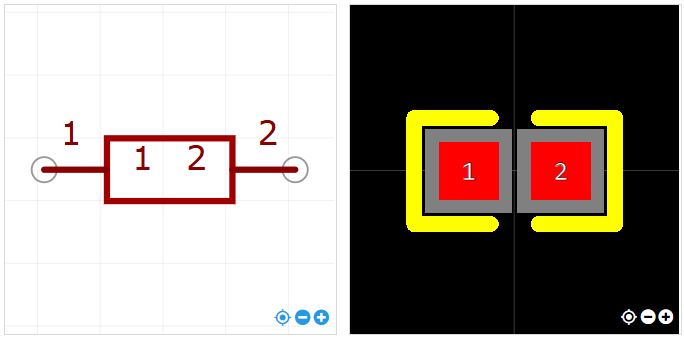

Foot print
Applications:
- Voltage divider circuits.
- Pull-up and pull-down resistors.
- Current limiting circuits.
- Signal conditioning.
- Microcontroller circuits.
- Consumer electronics.
- Communication equipment.
- Industrial control systems.
- Embedded electronic devices.
- General-purpose PCB designs.
Package Include:
1x Chip-Resistor SMD 10kΩ ±1% 62.5mW ±100ppm/℃ 0402
