Chip Resistor SMD 14Ω ±1% 0.125W ±100ppm/℃ 0805
The Chip Resistor SMD 14Ω ±1% 0.125W ±100ppm/°C 0805 is a compact thick-film surface-mount resistor designed for reliable resistance control in electronic circuits. It provides a nominal resistance of 14Ω with a ±1% tolerance and a rated power of 125mW, making it suitable for a wide range of general-purpose electronic applications.
Features:
- 14Ω nominal resistance.
- ±1% resistance tolerance.
- 125mW rated power.
- 0805 surface-mount package.
- Thick-film resistor construction.
- ±100ppm/°C temperature coefficient.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | FOJAN. |
| Model Number | FRC0805F14R0TS. |
| Component Type | Thick-film chip resistor. |
| Resistance | 14Ω. |
| Tolerance | ±1%. |
| Rated Power | 125mW. |
| Package | 0805. |
| Maximum Overload Voltage | 150V. |
| Temperature Coefficient | ±100ppm/°C. |
| Operating Temperature Range | -55°C to +155°C. |
| Mounting Type | Surface mount. |
| Construction | Thick film. |
| Compliance | RoHS. |

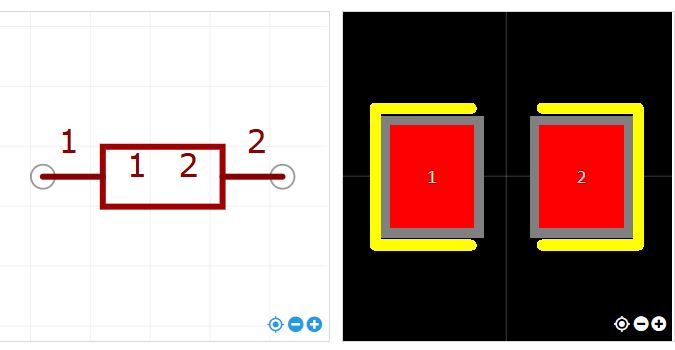

Foot print:
Applications:
- Current limiting circuits.
- Signal damping circuits.
- Voltage divider networks.
- Biasing circuits.
- Signal conditioning circuits.
- Termination networks.
- Analog electronic circuits.
- Digital electronic circuits.
- Communication equipment.
- Industrial control systems.
- Consumer electronics.
- General-purpose PCB assemblies.
Package Include:
1x Chip-Resistor SMD 14Ω ±1% 0.125W ±100ppm/℃ 0805
