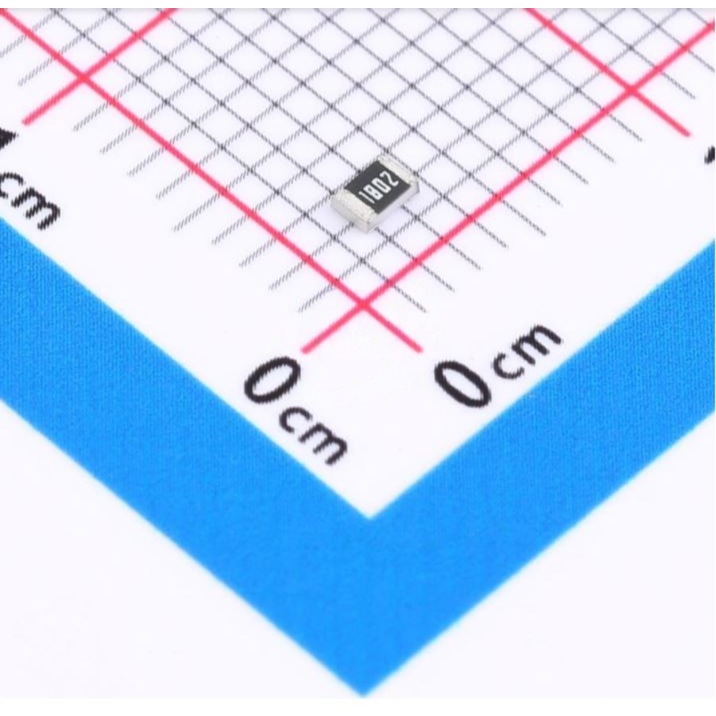

Chip Resistor SMD 18kΩ ±1% 0.125W 0805
The Chip Resistor SMD 18kΩ ±1% 0.125W ±100ppm/℃ 0805 is a compact surface-mount thick-film resistor designed for general-purpose electronic circuits and PCB assemblies. It provides a nominal resistance of 18kΩ with a precise ±1% tolerance, making it suitable for applications where controlled resistance values and consistent circuit performance are required.
Features:
- 18kΩ nominal resistance for general-purpose electronic applications.
- ±1% resistance tolerance for accurate circuit designs.
- 125mW rated power for low-power PCB applications.
- 0805 surface-mount package for compact circuit layouts.
- Thick-film resistor construction.
Specifications:
| Parameter | Value |
|---|---|
| Component Type | Thick Film Chip Resistor |
| Resistance | 18kΩ |
| Tolerance | ±1% |
| Rated Power | 125mW |
| Package | 0805 |
| Temperature Coefficient | ±100ppm/°C |
| Voltage Rating | 150V |
| Operating Temperature Range | -55°C to +155°C |
| Mounting Type | Surface Mount |
| Manufacturer | FOJAN |
| Part Number | FRC0805F1802TS |

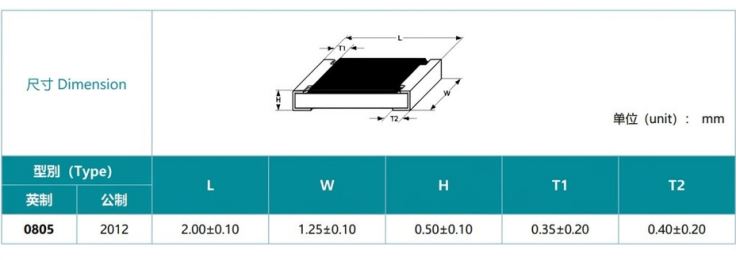

Foot print:
Application:
- Voltage-divider circuits.
- Feedback and gain-setting networks.
- Biasing circuits.
- Pull-up and pull-down resistor networks.
- Signal conditioning circuits.
- Sensor interface circuits.
- Analog electronic circuits.
- Digital electronic circuits.
- Communication equipment.
- Consumer electronic products.
- Computer and peripheral circuits.
- Industrial automation electronics.
- General-purpose PCB assemblies.
Package Include:
1x Chip Resistor SMD 18kΩ ±1% 0.125W 0805.
