Chip Resistor SMD 1kΩ ±5% 0.25W ±100ppm/℃ 1206
The Chip Resistor SMD 1kΩ ±5% 0.25W ±100ppm/℃ 1206 is a compact surface-mount thick-film resistor designed for general-purpose electronic circuits and PCB assemblies. It provides a nominal resistance of 1kΩ with a ±5% tolerance, making it suitable for applications requiring a standard resistance value with practical tolerance performance.
Features:
- 1kΩ nominal resistance for general-purpose electronic circuit applications.
- ±5% resistance tolerance for practical circuit designs.
- 250mW rated power for low-power electronic applications.
- 1206 surface-mount package for compact PCB layouts.
- Thick-film resistor construction.
Specifications:
| Parameter | Value |
|---|---|
| Component Type | Thick Film Chip Resistor |
| Resistance | 1kΩ |
| Tolerance | ±5% |
| Rated Power | 250mW |
| Package | 1206 |
| Temperature Coefficient | ±100ppm/°C |
| Voltage Rating | 200V |
| Operating Temperature Range | -55°C to +155°C |
| Mounting Type | Surface Mount |
| Manufacturer | FOJAN |
| Part Number | FRC1206J102 TS |

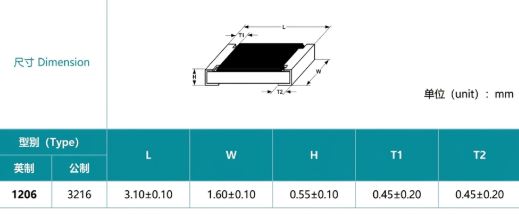

Foot Print:
Package Include:
1x Chip-Resistor SMD 1kΩ ±5% 0.25W ±100ppm/℃ 1206.
