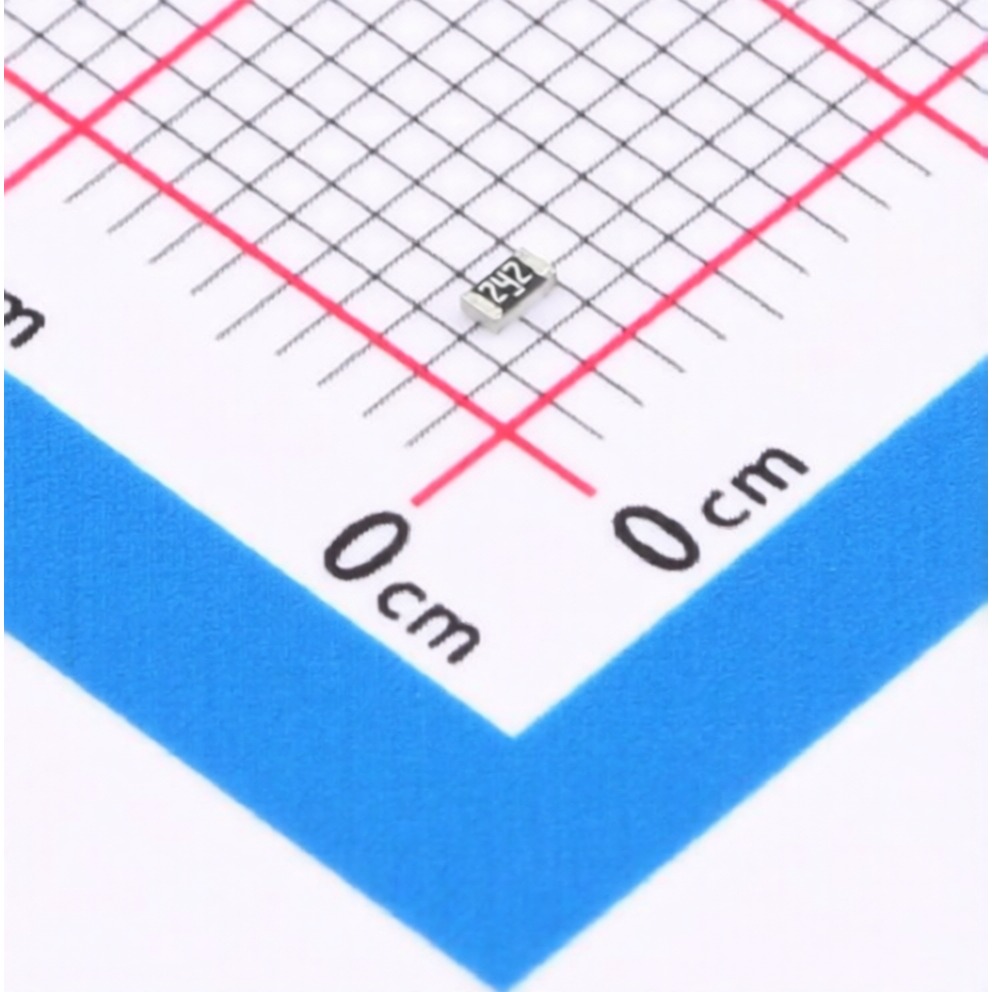

Chip Resistor SMD 2.4kΩ ±1 100mW ±100ppm/℃ 0603
The Chip Resistor SMD 2.4kΩ ±1% 0.1W ±100ppm/℃ 0603 is a compact surface-mount thick-film resistor designed for accurate and reliable resistance control in electronic circuits. It provides a nominal resistance of 2.4kΩ with a ±1% tolerance, making it suitable for circuit designs requiring a precise and consistent resistance value.
Features:
- 2.4kΩ nominal resistance.
- ±1% resistance tolerance.
- 100mW rated power.
- 0603 surface-mount package.
- Thick-film resistor construction.
- ±100ppm/℃ temperature coefficient.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | FOJAN |
| Model Number | FRC0603F2401TS |
| Component Type | Chip Resistor – Surface Mount |
| Resistance | 2.4kΩ |
| Tolerance | ±1% |
| Rated Power | 100mW |
| Package | 0603 |
| Resistor Type | Thick Film Resistor |
| Temperature Coefficient | ±100ppm/℃ |
| Voltage Rating | 75V |
| Operating Temperature | -55℃ to +155℃ |
| Mounting Type | Surface Mount |
Foot print:
Applications:
- General-purpose PCB circuit design.
- Signal conditioning circuits.
- Voltage divider networks.
- Transistor and amplifier biasing.
- Pull-up and pull-down networks.
- LED and indicator circuits.
- Control and interface circuits.
- Sensing and measurement circuits.
- Consumer electronic equipment.
- Embedded electronic systems.
- Compact high-density PCB assemblies.
Package Include:
1x Chip-Resistor SMD 2.4kΩ ±1 100mW ±100ppm/℃ 0603.
