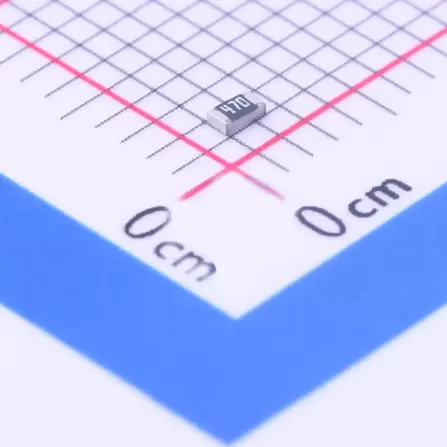

Chip Resistor SMD 47Ω ±5 0.125W ±100ppm/℃ 0603
The Chip Resistor SMD 47Ω ±5% 0.125W ±100ppm/°C 0603 from FOJAN Electronics is a high-performance thick film surface-mount device (SMD) resistor designed for reliable operation in demanding electronic applications. Part of the FRC series, this compact component offers precise resistance control and stability, making it an ideal choice for modern circuit designs where space efficiency and performance are paramount. Fabricated using advanced thick film technology on a ceramic substrate, it ensures low noise, high reliability, and consistent electrical characteristics across a wide temperature range.
Features:
- Compact 0603 size (1.60 × 0.80 × 0.45 mm) for high-density PCB designs.
- Thick film construction using RuO2 for low noise and high stability.
- ±5% tolerance and ±100 ppm/°C TCR for precise circuit performance.
- Power rating of 0.125W with maximum working voltage of 75V.
- ROHS compliant with matte tin terminations for excellent solderability.
Specifications:
| Category | Passives/Resistors/Chip Resistor – Surface Mount |
|---|---|
| Manufacturer | FOJAN |
| Package | 0603 |
| Power (Watts) | 100mW |
| Resistance | 47Ω |
| Voltage Supply (Max) | 75V |
| Temperature Coefficient | ±100ppm/℃ |
| Type | Thick Film Resistor |
| Tolerance | ±5% |
| Operating Temperature | -55℃ ~ +155℃ |

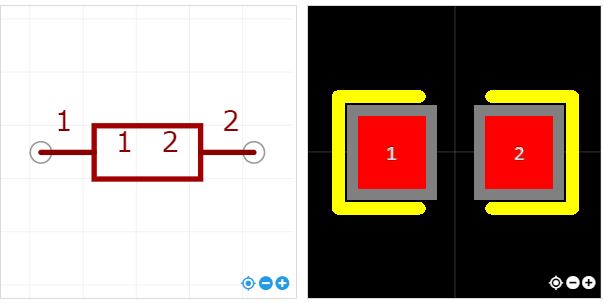

Foot Print:
Applications:
- Entertainment devices such as stereo systems, TV tuners, and tape recorders.
- Household appliances including air conditioners and refrigerators.
- Computer and peripheral products like main boards and PDAs.
- Communication equipment such as cell phones and fax machines.
- Power supplies and illumination equipment.
- Measuring instruments including electric meters and navigation devices.
