Chip Resistor SMD 47Ω ±5% 1W ±100ppm/℃ 2512
The Chip Resistor SMD 47Ω ±5% 1W ±100ppm/℃ 2512 is a high-power surface-mount thick-film resistor designed for electronic circuits requiring a 47Ω resistance value and higher power handling capability. It provides a nominal resistance of 47Ω with a ±5% tolerance, making it suitable for a wide range of general-purpose and power-related PCB applications.
Features:
- 47Ω nominal resistance.
- ±5% resistance tolerance.
- 1W rated power.
- 2512 surface-mount package.
- Thick-film resistor construction.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | FOJAN |
| Model Number | FRC2512J470TS |
| Component Type | Chip Resistor – Surface Mount |
| Resistance | 47Ω |
| Tolerance | ±5% |
| Rated Power | 1W |
| Package | 2512 |
| Resistor Type | Thick Film Resistor |
| Temperature Coefficient | ±100ppm/℃ |
| Overload Voltage | 200V |
| Operating Temperature | -55℃ to +155℃ |
| Mounting Type | Surface Mount |

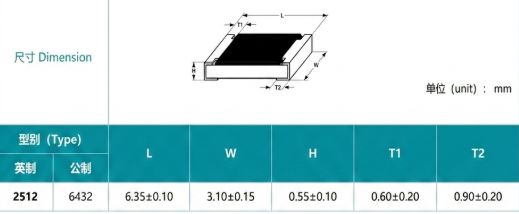

Foot print:
Applications;
- Power supply circuits.
- Current-limiting circuits.
- LED driver circuits.
- Voltage-divider networks.
- Signal conditioning circuits.
- Transistor and amplifier biasing.
- Load and termination circuits.
- Control circuits.
- Sensing and measurement circuits.
- Consumer electronic equipment.
- Industrial electronic equipment.
- High-density surface-mount PCB assemblies.
Package Include:
1x Chip-Resistor SMD 47Ω ±5% 1W ±100ppm/℃ 2512.
