Chip Resistor SMD 560Ω ±1% 0.125W ±100ppm/℃ 0805
The Chip Resistor SMD 560Ω ±1% 0.125W ±100ppm/℃ 0805 is a compact surface-mount thick-film resistor designed for general-purpose electronic circuit applications. It provides a nominal resistance of 560Ω with a tight ±1% resistance tolerance, making it suitable for circuits where controlled resistance values and consistent electrical performance are required.
Features:
- 560Ω nominal resistance for general-purpose circuit applications.
- ±1% resistance tolerance for improved resistance accuracy.
- 125mW rated power for compact electronic circuits.
- 0805 surface-mount package for space-efficient PCB layouts.
- Thick-film resistor construction for general-purpose electronic applications.
- ±100ppm/°C temperature coefficient for controlled resistance stability over temperature.
Specifications:
| Parameter | Value |
|---|---|
| Component Type | Thick Film Chip Resistor |
| Resistance | 560Ω |
| Tolerance | ±1% |
| Rated Power | 125mW |
| Package | 0805 |
| Temperature Coefficient | ±100ppm/°C |
| Voltage Rating | 150V |
| Operating Temperature Range | -55°C to +155°C |
| Mounting Type | Surface Mount |
| Manufacturer Part Number | FRC0805F5600TS |

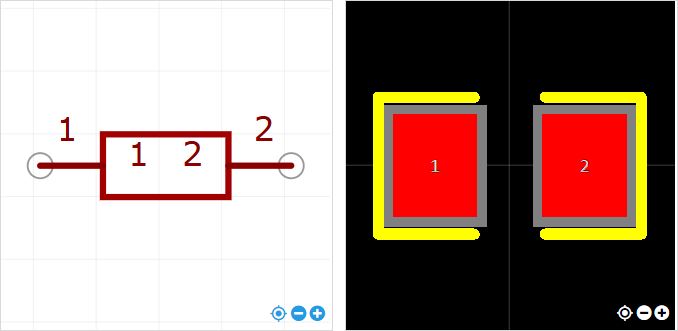

Foot print:
Applications:
- Voltage divider and signal conditioning circuits.
- Biasing networks in electronic circuits.
- Pull-up and pull-down resistor networks.
- LED and indicator current-limiting circuits where the calculated resistance and power requirements are suitable.
- Analog and digital signal circuits.
- Sensor interface and control circuits.
- Consumer electronic equipment.
- Computer and communication equipment.
- General-purpose PCB designs.
Package Include:
1x Chip Resistor SMD 560Ω ±1% 0.125W ±100ppm/℃ 0805
