CNC Router 4030 PRO With 500W Spindle Kit And 40W Laser Head Engraver Milling Machine
CNC Router 4030 PRO Desktop CNC router with 500W spindle, 300x400x73mm work area, GRBL support, offline control, Z-probe, and laser engraving support.
45,000.00 EGP
Buy NowCNC Router 4030 PRO With 500W Spindle Kit And 40W Laser Head Engraver Milling Machine
The CNC Router 4030 PRO With 500W Spindle Kit And 40W Laser Head Engraver Milling Machine is a compact desktop CNC machine designed for engraving, carving, and light milling tasks. It is suitable for makers, hobbyists, workshops, and small production environments that need a practical machine for processing different materials with controlled movement and accurate tool positioning. The machine provides a working area of 300 x 400 x 73 mm, making it useful for small to medium creative and technical projects.

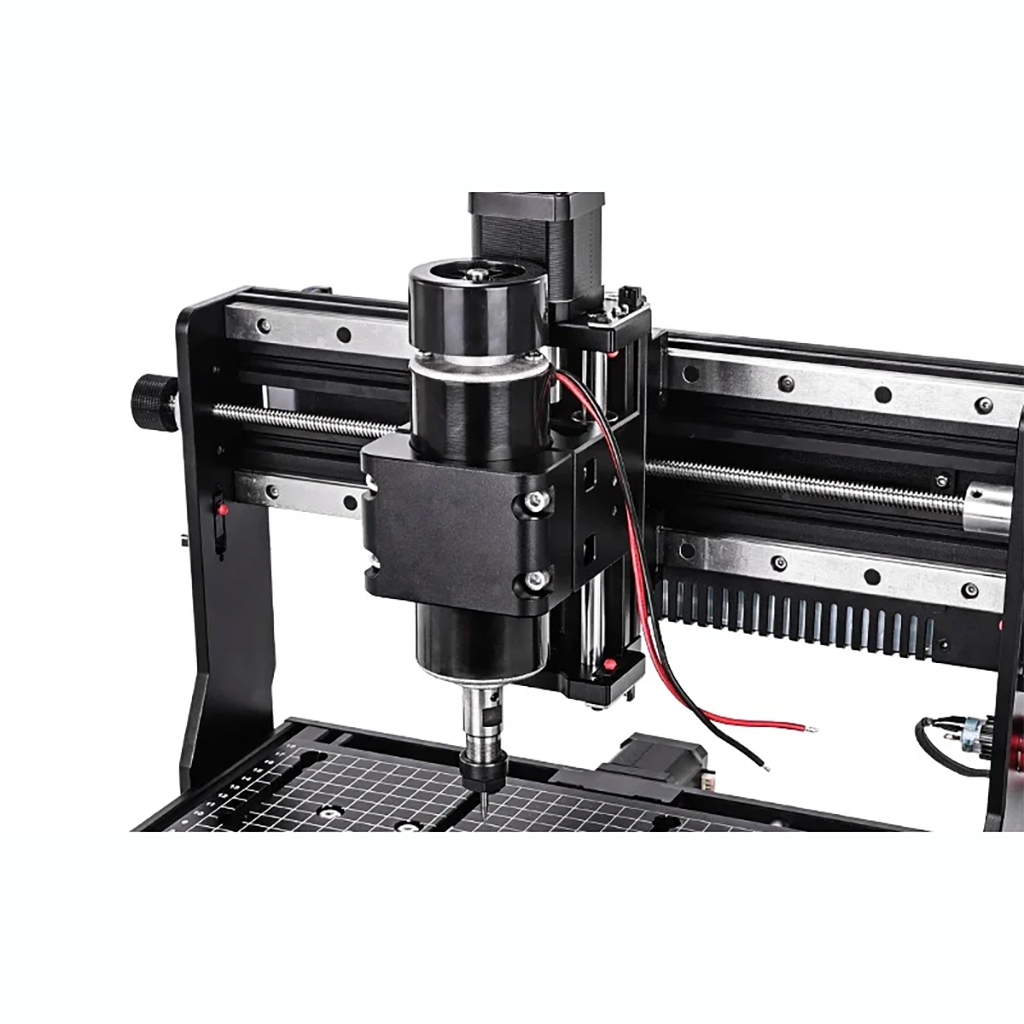

This CNC machine is equipped with a 500W spindle motor that operates at 11000 rpm/min, allowing it to handle engraving and milling operations with stable cutting performance. The structure includes an X-Z axis gantry, base assembly, spindle clamps, limit switches, emergency stop button, controller board, and power supply. The included control system supports GRBL-compatible software, allowing users to run G-code files through a computer or offline controller.

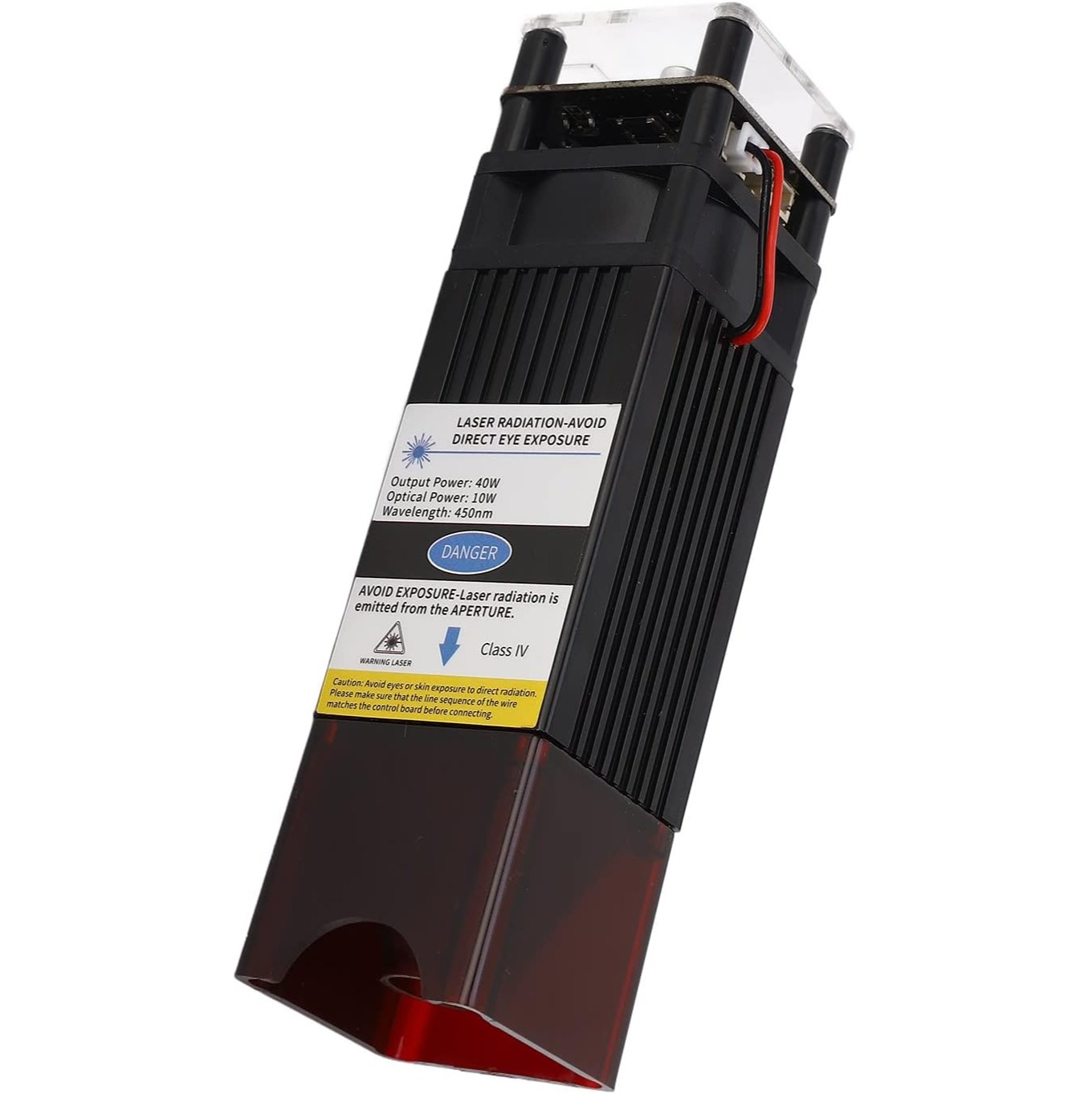

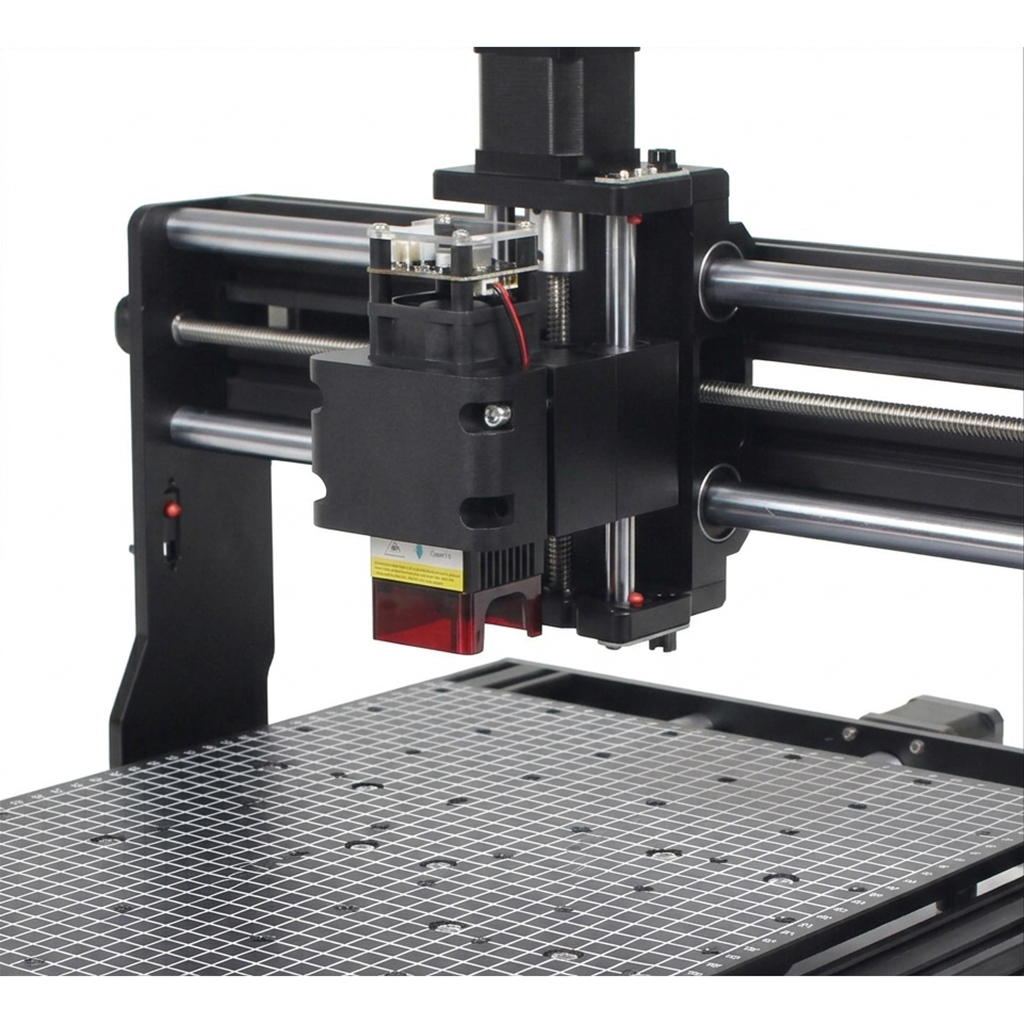

The machine also supports laser add-ons, including 33 x 33 mm and 40 x 40 mm laser module installation methods shown in the manual. This makes it suitable for both mechanical engraving and laser engraving applications when the laser module is installed correctly. With its 48V 10.4A power supply, USB connection, Z-probe support, and offline operation capability, the CNC Router 4030 PRO is a versatile machine for accurate desktop engraving, carving, cutting, and prototyping work.
Features:
- Compact desktop CNC machine design for engraving, carving, and milling projects.
- 500W spindle motor for stable cutting and engraving performance.
- Spindle motor speed reaches 11000 rpm/min.
- Working area of 300 x 400 x 73 mm for small and medium projects.
- 0.1 mm precision for accurate tool movement.
- Supports GRBL-compatible software such as Grblcontrol Candle.

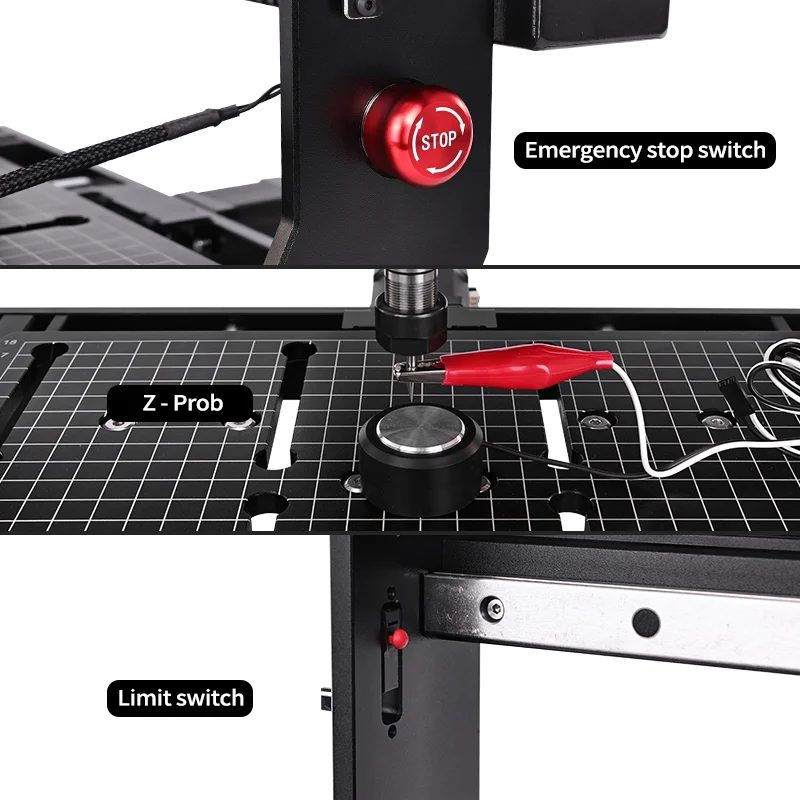

- Includes limit switches for X, Y, and Z axis protection.
- Emergency stop button included for safer machine operation.
- Supports offline controller operation.
- USB connection for computer-based control.
- Z-probe support for automatic tool zero setup.
- Compatible with laser add-ons for engraving applications.
- Supports 33 x 33 mm laser module installation with conversion collar.
- Supports 40 x 40 mm laser module direct mounting.
- Includes spindle clamps for 52 mm spindle installation.
- Can support 65 mm spindle clamp replacement when using a compatible compact router.
- Supplied with clamps for securing workpieces on the workbench.
- Includes engraving bits, milling cutters, wrenches, cable ties, and assembly accessories.
- Designed for Windows XP, Windows 7, Windows 8, Windows 10, and Mac OS systems.
- Suitable for indoor workshop and desktop use.
Specifications:
| Specification | Value |
|---|---|
| Product Type: | Desktop CNC Router Engraver Milling Machine |
| Model: | 4030 PRO |

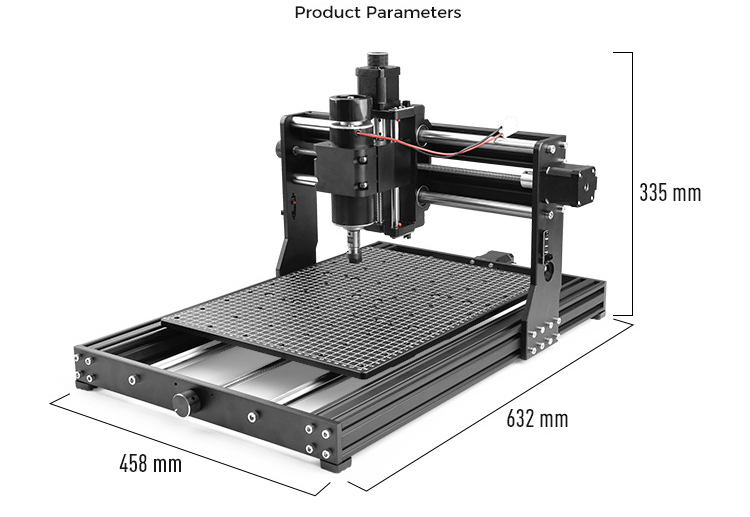

| Overall Size: | 632 x 458 x 355 mm / 24.9 x 18 x 14 inch |
| Working Area: | 300 x 400 x 73 mm / 11.8 x 15.7 x 2.8 inch |
| Power Supply: | 48V 10.4A |
| Stepper Motor: | 42 x 48 mm, 0.55 Nm |
| Limit Switch: | X, Y, Z axis, both ends |
| Precision: | 0.1 mm |
| Emergency Stop Switch: | Yes |
| Power of Spindle Motor: | 500W |
| Speed of Spindle Motor: | 11000 rpm/min |
| Offline Controller: | Yes |
| Weight: | 14.8 kg / 32.6 pounds |
| System Compatibility: | Windows XP, Windows 7, Windows 8, Windows 10, Mac OS |
| Software: | Grblcontrol Candle / Other GRBL-compatible software |
| USB Cable: | 1.5 m |
| Z-Probe: | Included |
| Standard Spindle Clamp: | 52 mm |
| Optional Spindle Clamp Support: | 65 mm spindle clamp replacement |
| Laser Module Mounting Support: | 33 x 33 mm and 40 x 40 mm laser module installation methods |
Applications:
- Wood Engraving.
- Acrylic Engraving.
- Plastic Milling.
- PCB Engraving.
- Sign Making.
- Nameplate Engraving.
- DIY Craft Projects.
- Prototype Manufacturing.
- Laser Engraving.
- Light Cutting Projects.
- Small Workshop Production.
- Educational CNC Training.
Package Contents:
- 1x Base Assembly
- 1x X-Z Axis Gantry
- 1x 500W Spindle With ER11 Collet
- 1x 52mm Front Spindle Clamp
- 1x 52mm Rear Spindle Clamp
- 1x 65mm Front Spindle Clamp
- 1x 65mm Rear Spindle Clamp
- 3x Stepper Motor Cable
- 6x Limit Switch Cable
- 1x Spindle Cable
- 1x USB Cable 1.5m
- 1x Controller Board
- 1x Power Supply 48V 10.4A
- 1x Power Cord
- 4x Clamp
- 1x Brush
- 1x Allen Wrench 2.5mm
- 1x Allen Wrench 4mm
- 2x Limit Switch Board
- 1x Emergency Stop Button With Cable 60cm
- 1x Cable Ties Set
- 2x Wrench 13mm / 17mm
- 1x Laser Fixing Plate
- 1x Three Flute Milling Cutter 6.35mm
- 6x Engraving Bit Kit 3.175mm / 20° / 0.1mm
- 2x Flute Ball Nose End Mill 3.175mm / 22mm / 38mm
- 2x Flute Flat Nose End Mill 3.175mm / 22mm / 38mm
- 1x Z-Probe
- 1x Screwdriver
- 1x Spindle Connector
- 1x Cable Protector 1m
- 1x Velcro
- 2x Power Fixing Plate
- 1x Laser Conversion Collar
- 16x M5 x 25 Screw
- 4x M5 x 10 Screw
- 4x M3 x 8 Screw
- 4x M4 x 6 Screw
- 2x M5 x 8 Screw
- 4x M5 x 30 Screw
- 4x M5 x 16 Screw
- 4x M5 Gasket
- 6x M5 T Nut
- 1x Collet 6.35mm
