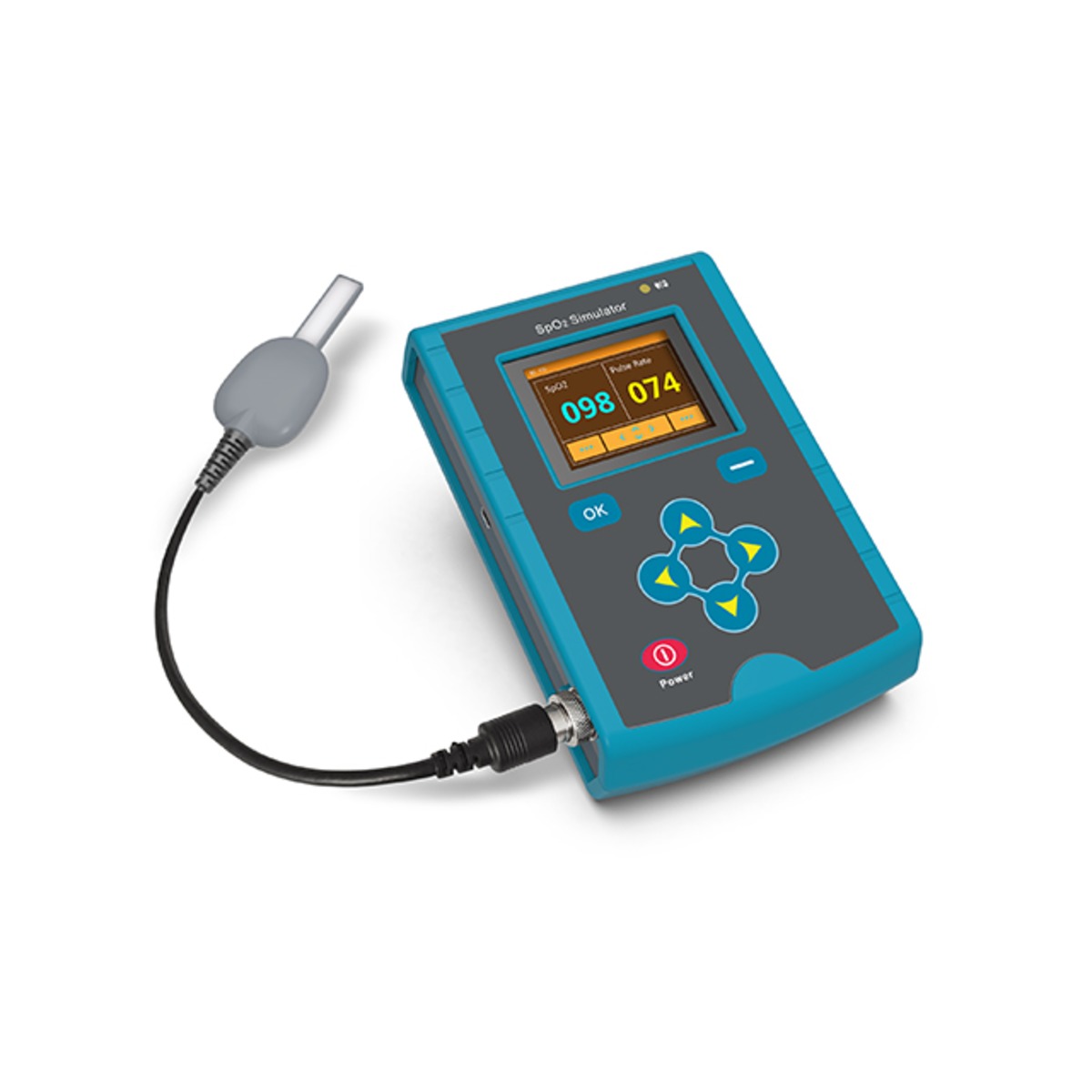

CONTEC MS100 SpO2 Simulator Pulse Rate Blood Oxygen Simulator Pulse Oximeter reaction time

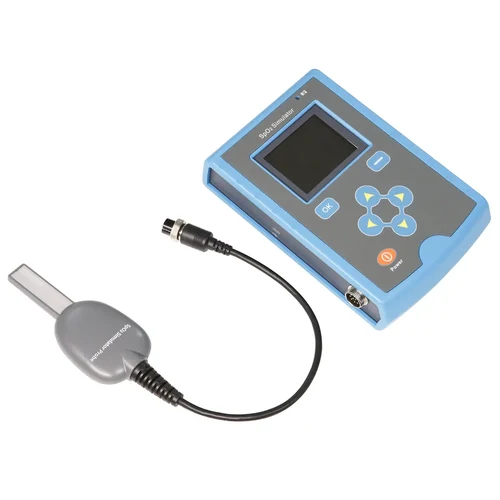

The CONTEC MS100 SpO₂ Simulator is a small, lightweight, separated SpO₂ simulator designed for testing pulse oximeters under controlled simulated conditions. The simulator probe connects separately to the host, making testing more convenient, while built-in R-curves support compatibility with oximeters using different technologies.
The CONTEC MS100 can simulate oxygen saturation, pulse rate, preset patient states, and different signal amplitudes. It can also test the performance of a pulse oximeter under different interference sources and measure the reaction time of the tested device. Its Alarm Limits function provides dedicated tests for SpO₂ alarm, pulse-rate alarm, and asystole, with the elapsed reaction time displayed in second
The simulator supports a wide range of simulated SpO₂ values from 35% to 100% and pulse rates from 25 to 250 BPM. It can simulate different patient conditions, signal amplitudes, and interference sources, while built-in R-curves such as BCI, Masimo, and Nellcor improve compatibility with different pulse oximeter designs. The CONTEC MS100 can also test the reaction time of SpO₂, pulse rate, and cardiac-arrest detection.
As different manufacturers may use different R-curve, current popular R curves (such as BCI, Masimo, Nellcor, etc.) are embedded into the simulator in advance.
Features:
- Oxygen saturation simulation.
- Pulse-rate simulation.
- Preset patient-state simulation.
- Pulse oximeter reaction-time testing.
- SpO₂ alarm reaction-time testing.
- Pulse-rate alarm reaction-time testing.
- Asystole reaction-time testing.
- Different signal amplitude simulation.
- Different interference-source testing.
- Selectable R-curves.

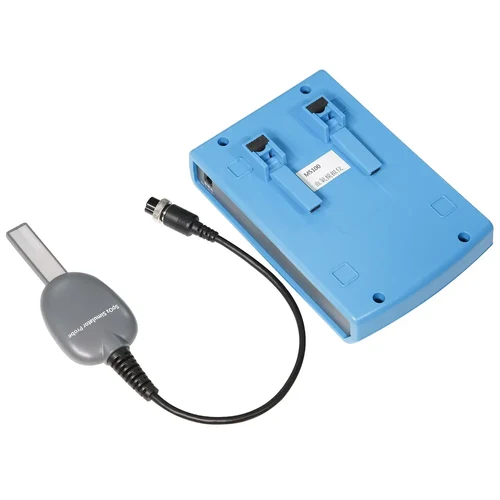

- Separated simulator probe and host.
- 262K-color TFT display.
- Adjustable display brightness.
- Rechargeable lithium battery.
- Selectable key volume.
- 24 preset patient conditions.
- 8 patient conditions available as the default state.
- Multiple manufacturer R-curves.
Specifications:
| Specification | Value |
|---|---|
| Brand | CONTEC |
| Model | MS100 |
| Product Type | SpO₂ Simulator |
| SpO₂ Simulation Range | 35%–100% |
| SpO₂ Resolution | 1% |
| SpO₂ Error | ±2% or ±P, whichever is greater, from 50%–100% |
| Pulse Rate Range | 20–250 BPM |
| Pulse Rate Resolution | 5 BPM |
| Pulse Rate Error | ±1% ±1 BPM |
| Amplitude Range | 0.000%–20.000% |
| Perfusion Index | Adjustable |
| Patient States | 24 presetting conditions |
| Default Patient States | 8 |
| R-Curves | 10 built-in compatible R-curves |
| Interference Simulation | 50 Hz / 60 Hz and light interference |
| Display | 320 × 240 TFT |
| Display Colors | 262K |
| Power Supply | 3.7 V rechargeable lithium battery |
| Battery Voltage Range | 3.6–4.2 V |
| Battery Quantity | 1 × rechargeable lithium battery |
| Battery Life | ≥500 charge/discharge cycles |
| Charging Adapter | 5.0 V |
| Reaction-Time Testing | SpO₂, pulse rate, cardiac arrest |
| Operation | Film key-press |
| Volume | Key volume, selectable On/Off |
| Weight | 600g (with the lithium battery x1) |

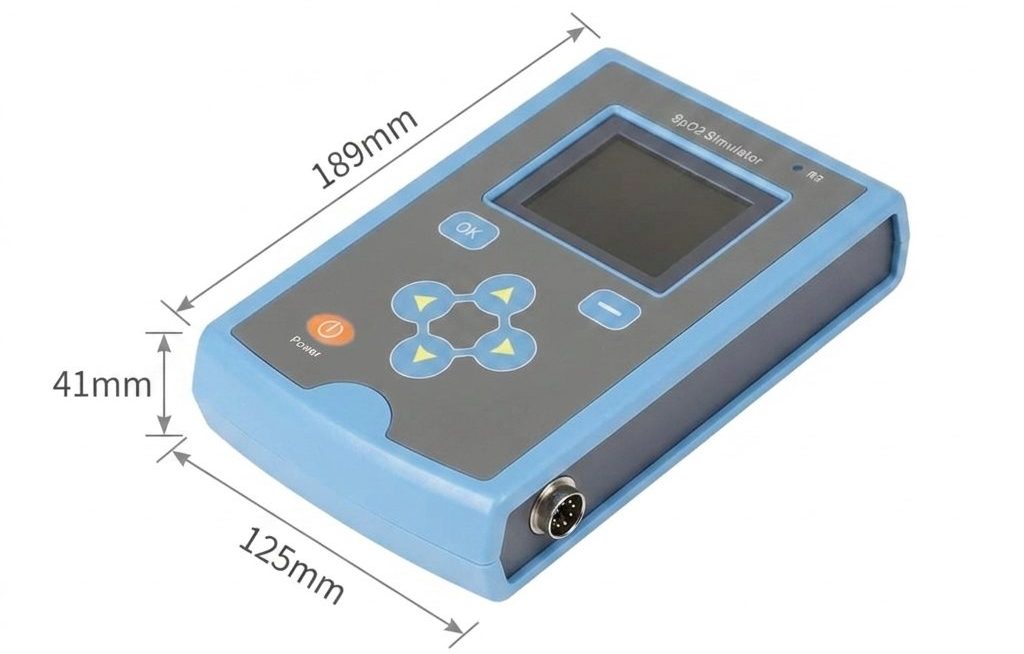

| Dimensions | 189x125x41mm |
Main Parameters:
- SpO2
Measuring range: 35%~100%
Resolution:1%
Error: When SpO2 is 75%~100%, the error is the larger between ±2% and ±P(P denotes the precision of the tested oximeter); when SpO2 is 74%~50%, the error is the larger between ±2% and ±P; no define when SpO2 is less than 50%. - Pulse rate
Measuring range:20bpm~250bpm
Resolution:5bpm
Error:1%±1bpm - Amplitude
Measuring range:0.000%~20.000%
Resolution:1% for 1.000%~20.000%; 0.1% for 0.100%~0.900%; 0.025% for 0.000%~0.075%. - Patient state
24 conditions presetting and 8 conditions as default after start. The number of condition can be adjusted by Motion level setup. - Voltage
DC 3.6V~4.2V - Power Supply
Voltage 3.7 rechargeable lithium battery × 1 - Battery working life
Charge and discharge no less than 500 times.
Function:
- Simulation of SpO2 and pulse rate.
- Support SpO2 and pulse rate simulation under 60 Hz/50 Hz interference and light interference.
- Adjustable perfusion index (PI), support SpO2 and pulse rate simulation under different PI.
- The reaction time of SpO2, PR and cardiac arrest can be tested.
- Built-in 10 compatible R curves (such as BCI, Masimo, Nellcor, etc.), meet the test requirements (R curve can be customized).
- Preset 24 patient states, such as weak pulse, bradycardia, hypoxia, infant, tachycardia, the aged, obesity, etc.
- Multiple language switching.
Applications:
- Pulse oximeter testing.
- SpO₂ monitor testing.
- Pulse-rate monitor testing.
- SpO₂ alarm verification.
- Pulse-rate alarm verification.
- Asystole alarm testing.
- Reaction-time testing.
- Biomedical equipment testing.
- Medical equipment maintenance.
- Performance testing under interference conditions.
- Testing different oximeter technologies.
Package Includes:
- 1 × CONTEC MS100 SpO₂ Simulator.
- 1 × MS100 User Manual.
- 1 × Power Adapter.
- 1 × Certificate.
- 1 × Simulator Probe.
