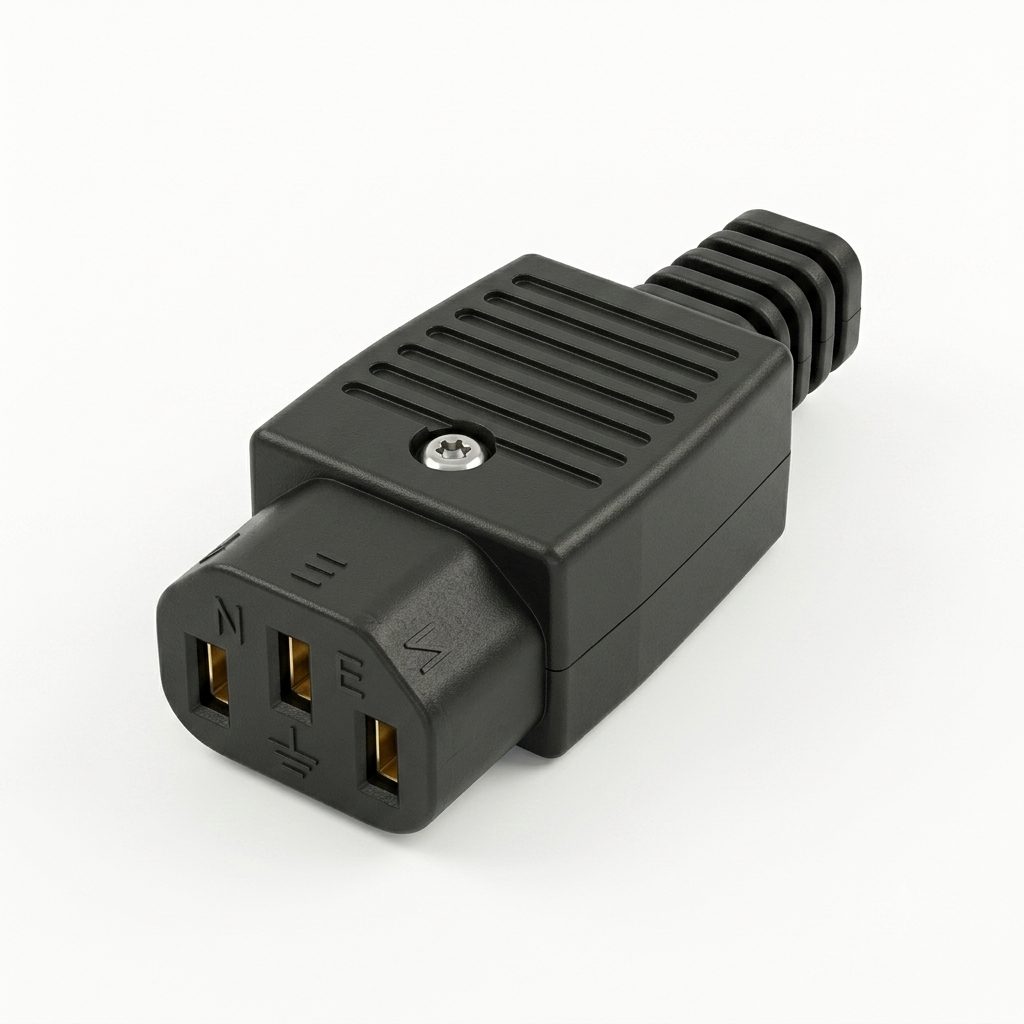

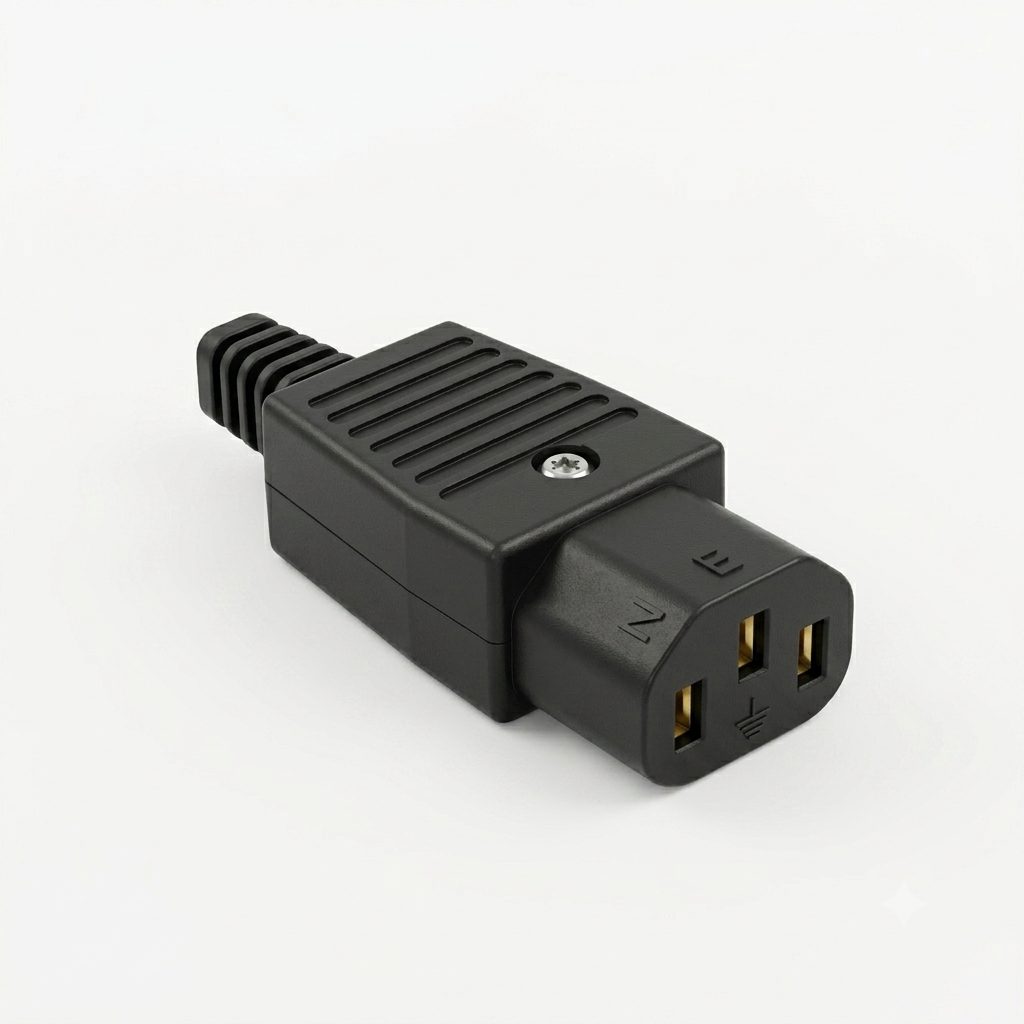

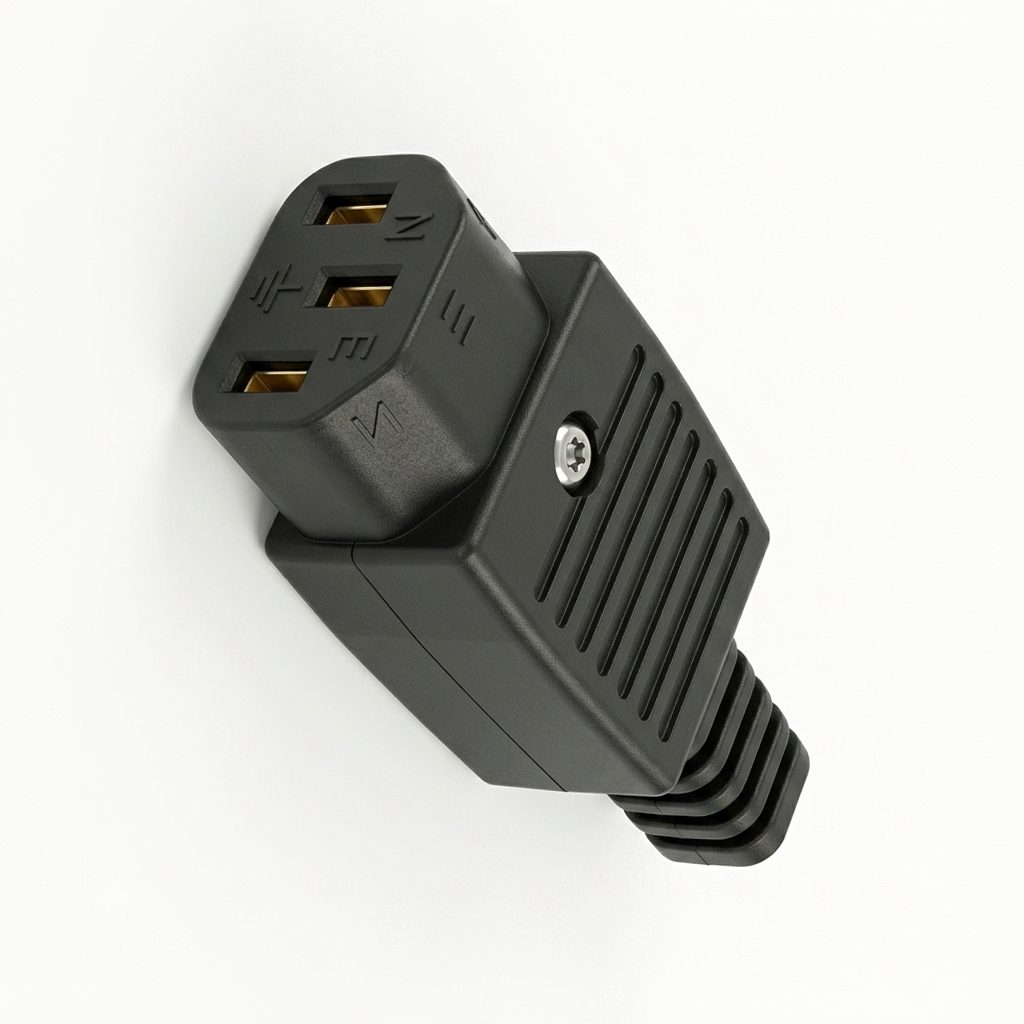

CP-22S Female AC Power Cable Connector 250V 10A 3-Pin
CP-22S Female AC Power Cable Connector 250V 10A 3-Pin Heavy-Duty Secure Power Socket is a durable and dependable power connector designed for secure AC electrical connections. Featuring a 3-pin female configuration, it supports up to 250VAC and 10A, making it ideal for power cables, electronic equipment, industrial machinery, power supplies, and custom electrical assemblies.
Its rugged construction ensures long-lasting performance, while the secure contact design provides stable electrical transmission and enhanced safety.
Suitable for both professional installations and DIY projects requiring reliable AC power connectivity.
Features
- Supports operating voltages up to 250VAC.
- Rated for currents up to 10A for reliable power handling.
- Durable housing provides excellent mechanical protection.
- Secure 3-pin female design ensures stable electrical contact.
- Easy wire termination allows quick installation.
- Compact and lightweight construction saves space.
- Suitable for industrial and consumer electrical applications.
- Provides reliable and safe AC power connections.
- Designed for long service life and repeated use.
- Ideal for replacement and custom wiring projects.
Specifications
| Parameter | Details |
|---|---|
| Model | CP-22S |
| Connector Type | Female AC Power Connector |
| Pin Count | 3Pin |
| Rated Voltage | 250VAC |
| Rated Current | 10A |
| Contact Type | Screw Terminal |
| Housing Material | High-Strength Plastic |
| Contact Material | Metal Alloy |
| Mounting Style | Cable Mount |
| Color | Black |
| Operating Frequency | 50Hz/60Hz |
| Application | AC Power Connection |

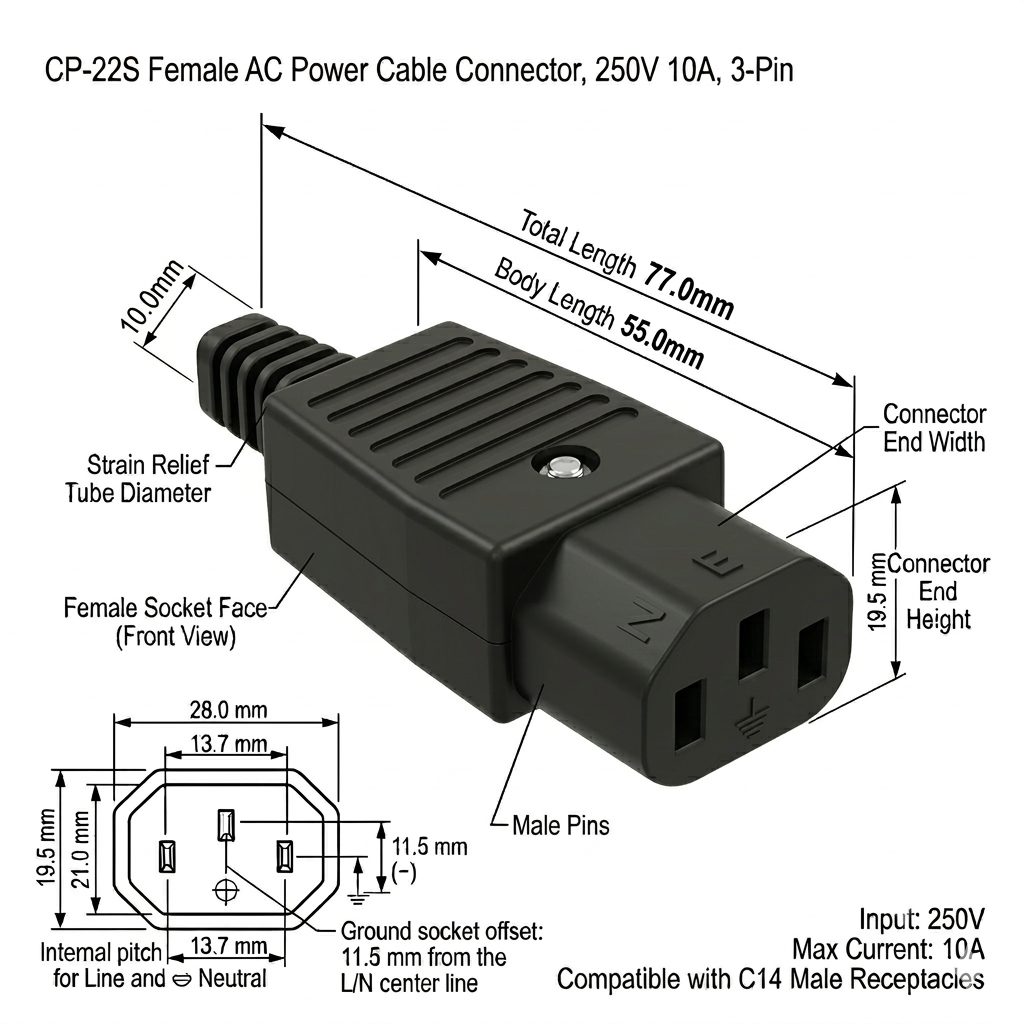

Dimensions

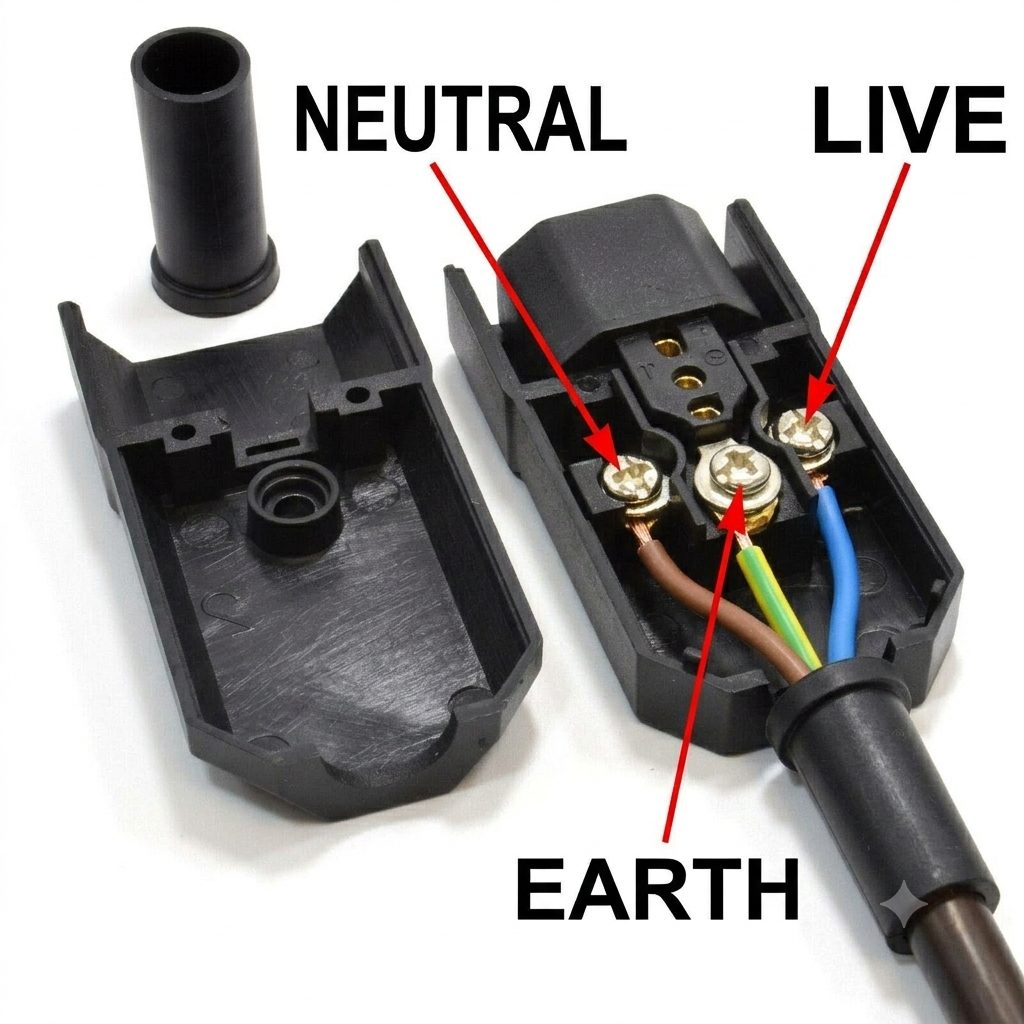

Pinout Configuration
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | Live (L) | Receives the AC supply voltage from the power source. |
| 2 | Neutral (N) | Completes the AC circuit return path. |
| 3 | Earth (E/GND) | Provides protective grounding for enhanced safety. |
Application
- AC power cable assemblies.
- Industrial automation equipment.
- Power supply units.
- Laboratory instruments.
- Test and measurement devices.
- Consumer electronic equipment.
- Audio and video systems.
- Electrical maintenance and repairs.
- DIY electrical wiring projects.
- Replacement power cable terminations.
Package Contents
- 1 x CP-22S Female AC Power Cable Connector 250V 10A 3-Pin.
