CR2032 3V Lithium Coin Cell Battery with Pins – Reliable, Compact Power Solution

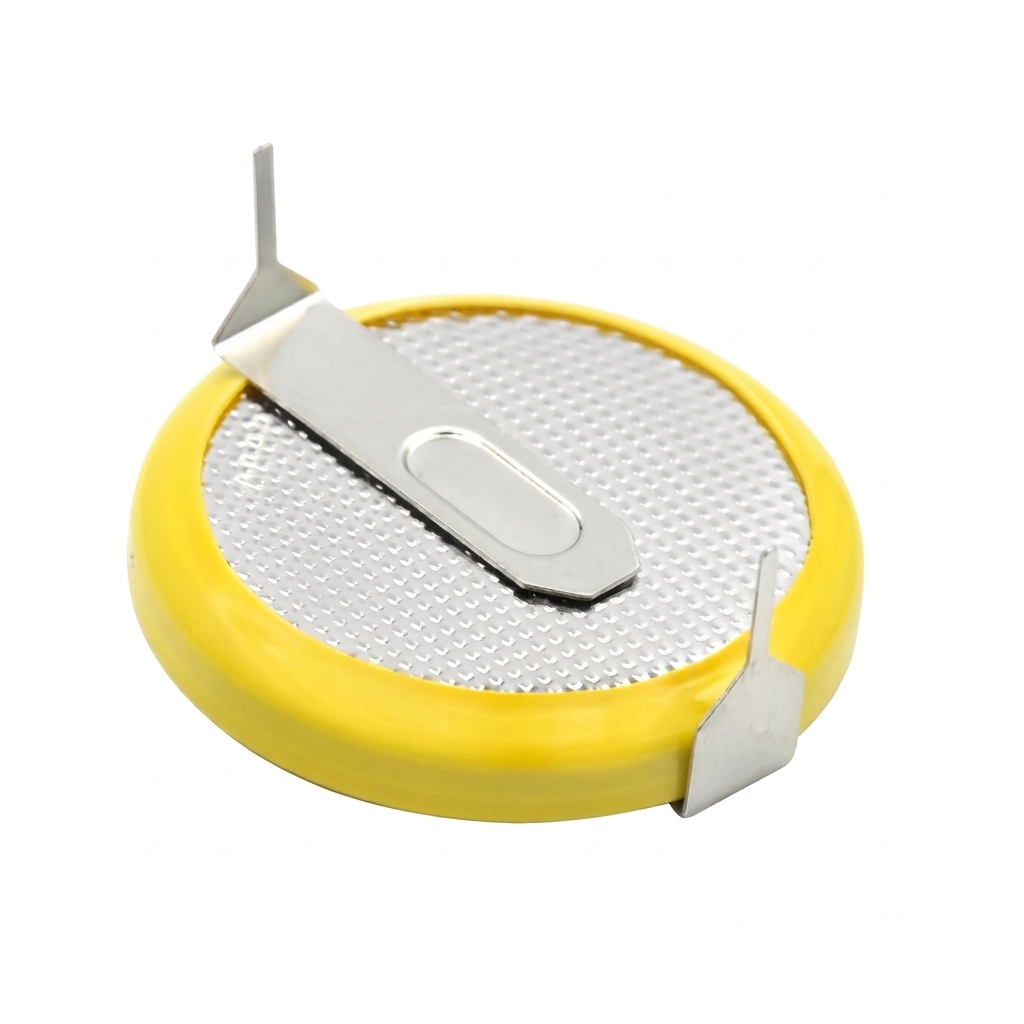

The CR2032 Lithium Coin Cell Battery with solderable tab pins is designed for direct mounting onto printed circuit boards (PCBs). Enclosed in a yellow protective insulation ring around its perimeter, this compact 3V battery provides reliable power with built-in terminals, eliminating the need for a separate battery holder.
Features
- Integrated Solder Pins
- Insulated
Specifications
| Feature | Specification |
|---|---|
| Battery Chemistry | Lithium |
| Nominal Voltage | 3V |
| Capacity | 220mAh |
| Terminal Type | Pins |

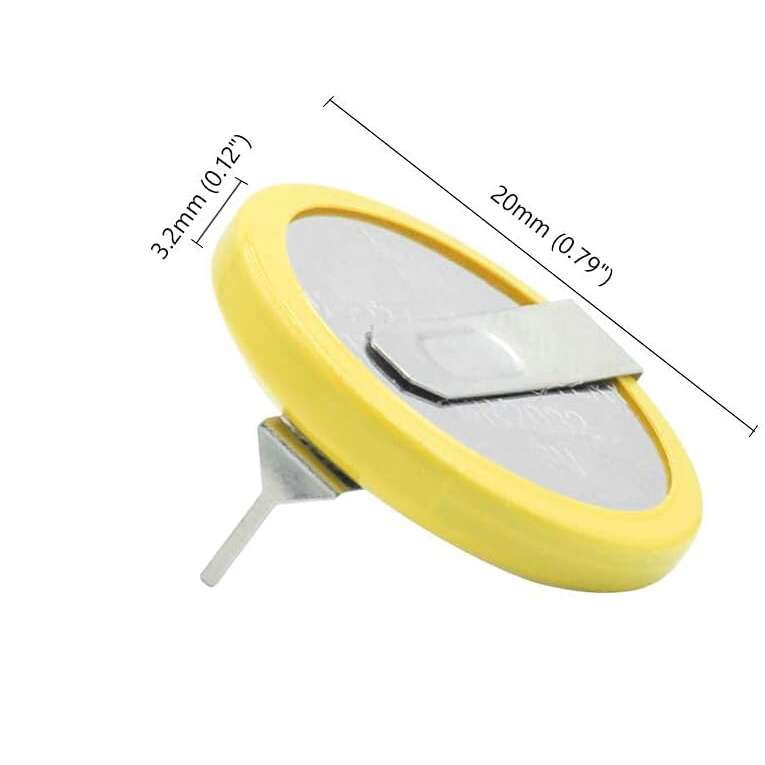

| Dimensions (Diameter) | 20 mm |
| Height | 3.2 mm |
| Weight | 3 g |
| Operating Temperature Range | -20°C to +60°C |
| Shelf Life | Up to 10 years |
| Self-Discharge Rate | <1% per year |
Applications
- PCB-mounted memory backup systems and Real-Time Clock (RTC) circuits.
- Compact electronic devices requiring direct-solder 3V power without a battery holder.
Package Included
- 1 x CR2032 Coin Cell Battery 3V Lithium With Pins
