CV-12030C Slim Waterproof LED Driver 12VDC 2.5A 30W IP67
Slim IP67 constant-voltage LED driver providing 12VDC output at 2.5A and 30W, with a compact 200mm housing and pre-attached input and output cables.
250.00 EGP
Buy NowCV-12030C Slim Waterproof LED Driver 12VDC 2.5A 30W IP67

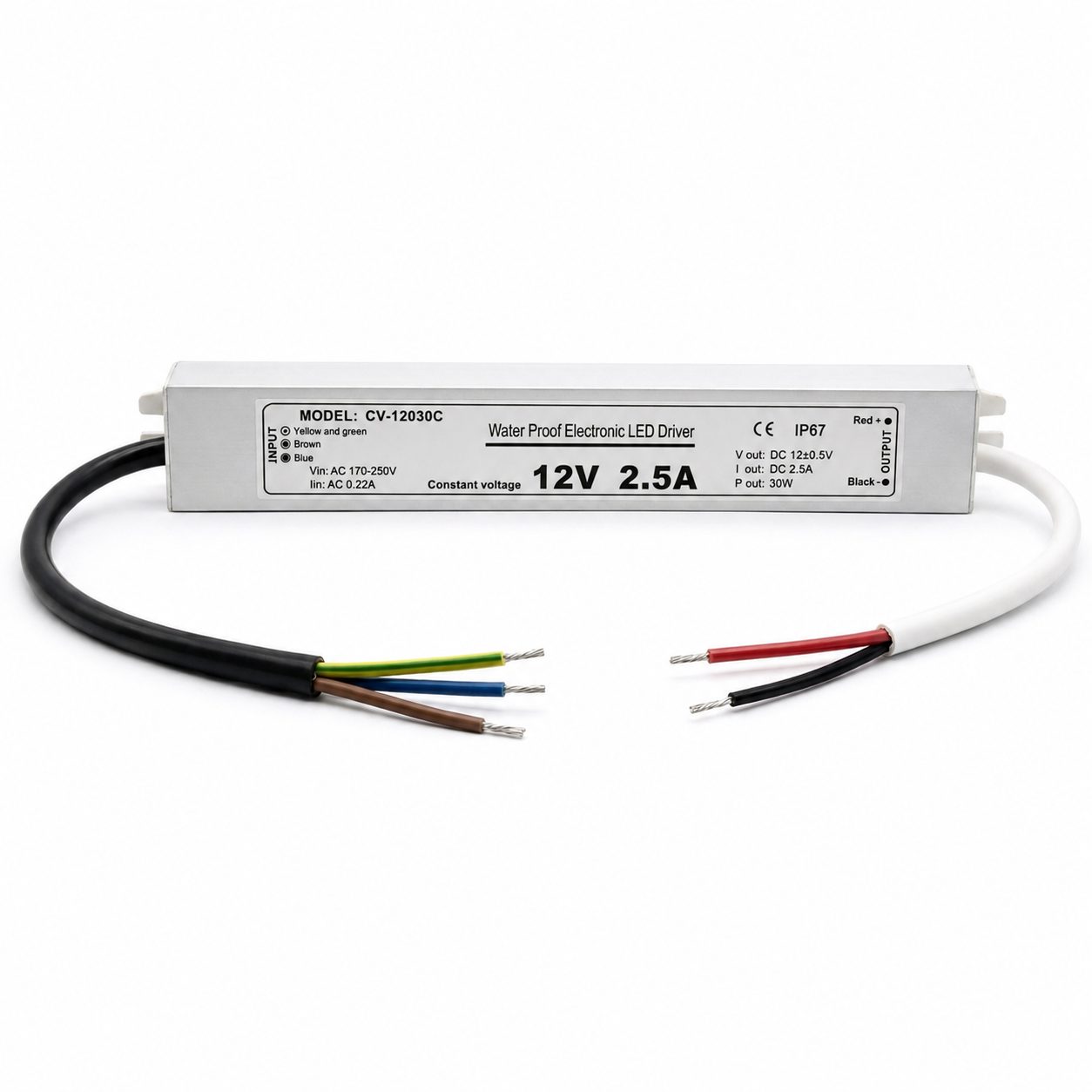

The CV-12030C Slim Waterproof LED Driver 12VDC 2.5A 30W IP67 is a compact constant-voltage electronic LED driver designed to convert AC mains power into a regulated 12VDC output for compatible LED lighting systems. The product label identifies the unit as model CV-12030C and specifies a 12VDC, 2.5A, 30W constant-voltage output.
Features:
- CV-12030C constant-voltage LED driver.
- 12VDC regulated output.
- 2.5A maximum output current.
- 30W maximum output power.
- 12VDC±0.5V specified output voltage.
- 170–250VAC input voltage range.
- 0.22A labeled input current.
- IP67-rated waterproof enclosure.
Specifications:
| Parameter | Value |
|---|---|
| Model | CV-12030C |
| Product Type | Waterproof Electronic LED Driver |
| Driver Type | Constant Voltage |
| Input Voltage | 170–250VAC |
| Input Current | 0.22A |
| Input Frequency | 47–63Hz |
| Output Voltage | 12VDC±0.5V |
| Output Current | 2.5A |
| Output Power | 30W |
| Output Type | Constant Voltage |
| Protection Rating | IP67 |
| Certification Marking | CE |
| Input Wire Count | 3 Wires |
| Input Conductors | Brown, Blue, Yellow/Green |
| Input Cable Length | 16cm |
| Output Wire Count | 2 Wires |
| Output Conductors | Red, Black |
| Output Cable Length | 17cm |
| Housing Length | 200mm |
| Housing Width | 20mm |
| Housing Height | 30mm |
Wire Configuration:
| Wire Configuration | Function |
|---|---|
| Brown – Input | AC Live (L) input. |
| Blue – Input | AC Neutral (N) input. |
| Yellow/Green – Input | Protective Earth (PE) / Ground. |
| Red – Output | DC Positive (+) output. |
| Black – Output | DC Negative (−) output. |
Applications:
- 12VDC LED strip lighting systems.
- 12VDC LED modules.
- Architectural LED lighting.
- Decorative LED lighting.
- Cabinet and display lighting.
- Signage and advertising lighting.
- Indoor LED lighting installations.
- Suitable outdoor LED lighting installations when the complete installation maintains the required environmental protection.
- Other compatible 12VDC constant-voltage LED lighting applications.
Package Include:
1x CV-12030C Slim Waterproof LED Driver 12VDC 2.5A 30W IP67.
