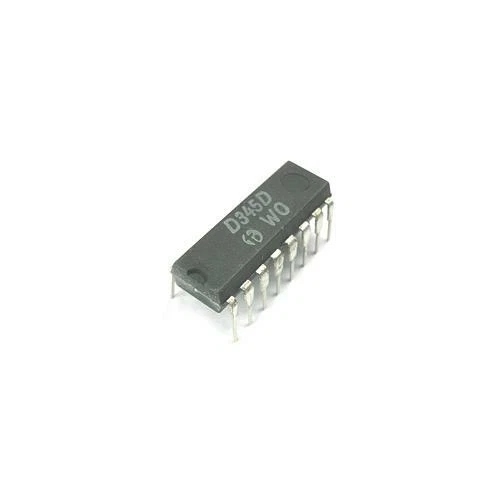

D345D decoder BCD to 7 segment LED DIP16
The D345D is a TTL-based BCD to 7-Segment Decoder/Driver integrated circuit designed for digital display systems, counters, embedded electronics, industrial control panels, and educational electronic projects. The IC converts 4-bit Binary-Coded Decimal (BCD) input data into the corresponding 7-segment display outputs required for driving common-anode LED displays.
Features:
- BCD to 7-segment decoder and driver.
- Compatible with SN7447N and 7447 IC families.
- Designed for common-anode LED displays.
- Open-collector output configuration.
- Lamp test function support.
- Ripple blanking control inputs.
- TTL-compatible logic levels.
- Standard DIP16 through-hole package.
Specifications:
| Parameter | Value |
|---|---|
| Model | D345D |
| Equivalent IC | SN7447N / 7447 / SN74LS47 |
| Logic Function | BCD to 7-Segment Decoder/Driver |
| Display Type | Common-Anode 7-Segment LED |
| Output Type | Open-Collector |
| Technology | TTL Logic |
| Package Type | DIP16 |
| Operating Voltage | 4.75V~5.25V |
| Typical Supply Voltage | 5VDC |
| Input Type | BCD |
| Number of Outputs | 7 Segment Outputs |
| Lamp Test Function | Supported |
| Ripple Blanking Function | Supported |
| Operating Temperature | 0°C~70°C |

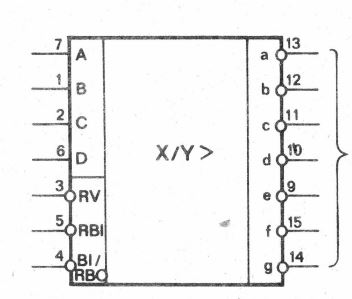

Pin Configuration:
Applications:
- Digital counter displays.
- 7-segment LED driving systems.
- Industrial control panels.
- Embedded electronic displays.
- Digital clock circuits.
- Measurement instruments.
- Educational electronics projects.
- Breadboard prototyping.
- Numeric display systems.
- TTL digital display applications.
Package Include:
1x D345D Decoder BCD to 7-Segment LED IC DIP16.
