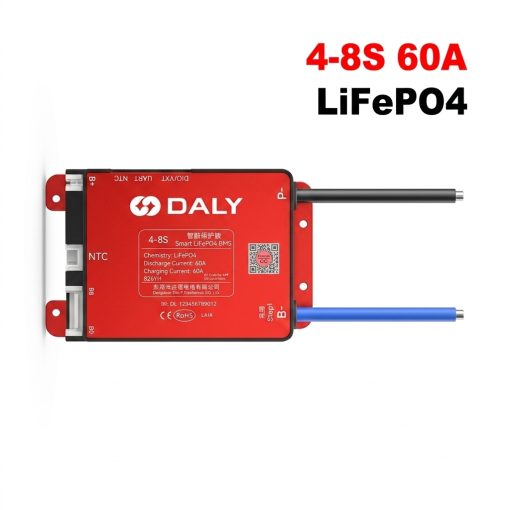

DALY Smart BMS lifepo4 Battery Charger Protection Module 4-8S 60A with Bluetooth and Cell Balancing
The DALY Smart BMS Lithium Battery Charger Protection Module 4-8S 60A with Bluetooth with Cell Balancing is a YH-series smart battery management system designed for lithium battery packs configured with 4 to 8 cells connected in series. This 60A version provides battery monitoring, charge and discharge protection, temperature protection, short-circuit protection, and cell voltage balancing while allowing battery operating data to be monitored through a Bluetooth-connected mobile application.
Features:
- DALY YH-series Smart BMS for 4–8S lithium battery packs.
- 60A continuous discharge current rating.
- 60A charging current rating according to the supplied product variant.
- Overcharge protection.
- Over-discharge protection.
- Over-current protection.
Specifications:
| Parameter | Value |
|---|---|
| Brand | DALY. |
| Series | YH Series. |
| BMS Type | Smart BMS. |
| Battery Series Range | 4–8S. |
| Battery Voltage | 14.8–29.6V nominal for Li-ion; 12.8–25.6V nominal for LiFePO4. |
| Maximum Charging Voltage | 16.8–33.6V for Li-ion; 14.6–29.2V for LiFePO4. |
| Continuous Discharge Current | 60A. |
| Charging Current | 60A. |
| Balance Type | Passive Cell Balancing. |
| Balance Current | 60mA. |
| Bluetooth | Built-in. |
| Communication Interface | UART. |
| Temperature Interface | NTC. |
| Protection Functions | Overcharge, over-discharge, over-current, temperature, disconnect, and short circuit. |
| Battery Connection | B+, B−, P−. |
| Cell Sampling | 4–8S. |

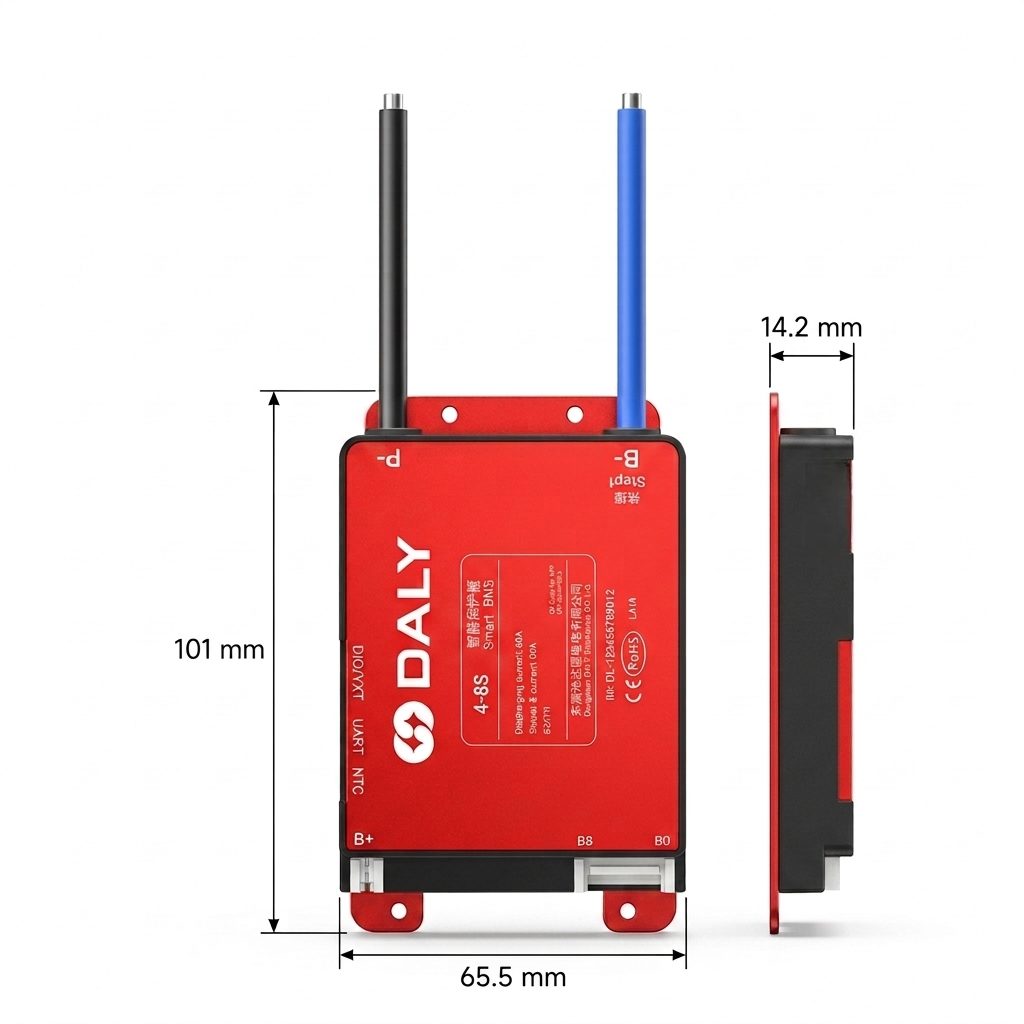

| BMS Dimensions | 101×65.5×14.2mm. |

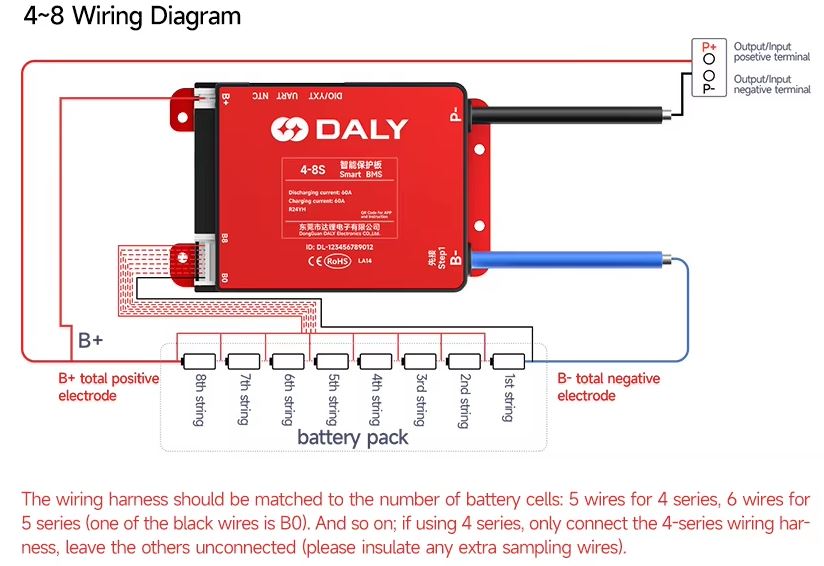

Wiring Diagram:
Applications:
- 4–8S lithium battery packs.
- Electric bicycles and electric motorcycles.
- Electric vehicles and small electric mobility systems.
- Battery energy-storage systems.
- Solar energy-storage systems.
- UPS and backup-power systems.
- Electric tools and portable power systems.
- AGV and robotic power systems.
- RV and outdoor energy-storage systems.
- Battery-pack assembly and development projects.
Package Include:
- 1x DALY Smart BMS Lithium Battery Charger Protection Module 4-8S 60A with Bluetooth.
- 1x Cell Sampling Cable.
- 1x B+ Cable.
- 1x UART Communication Cable.
- 1x BMS Connection Cables/Connectors.
- 1x English Instruction Manual.
