Description:
Dimmer is a controller that can adjust brightness infinitely, its control mode is knob-operated control, you could adjust light to the approriate lighting brightness in accordance with your actual need.
- Great dimmer for the LED lights
- Solid and durable, works stably
- Easy to install and simple to use

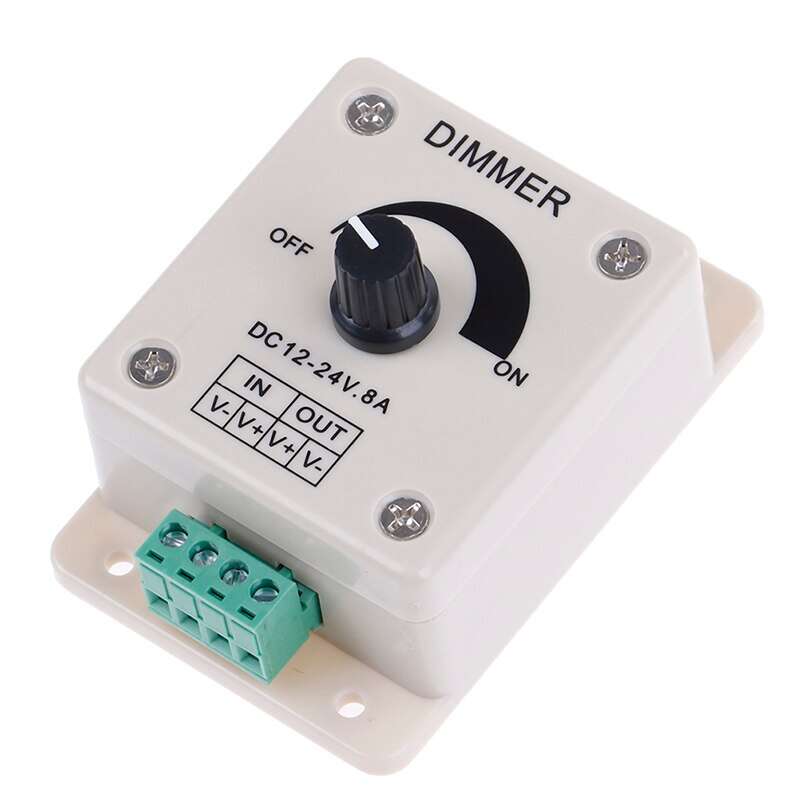

- There is a black knob, just twirl it to adjust the brightness of LED lights
Technical parameters
- Working temperature: [ -20℃—60℃ ]
- Supply voltage: DC 12-24V
- Output: 1 channel
- Dimension: 89(L) x 59(W) x 48(H) mm
- Net weight: 75g
- Static power consumption: <1w
- Output current: 8A
- Power output: 96-192W
- Color: Beige
Direction for use

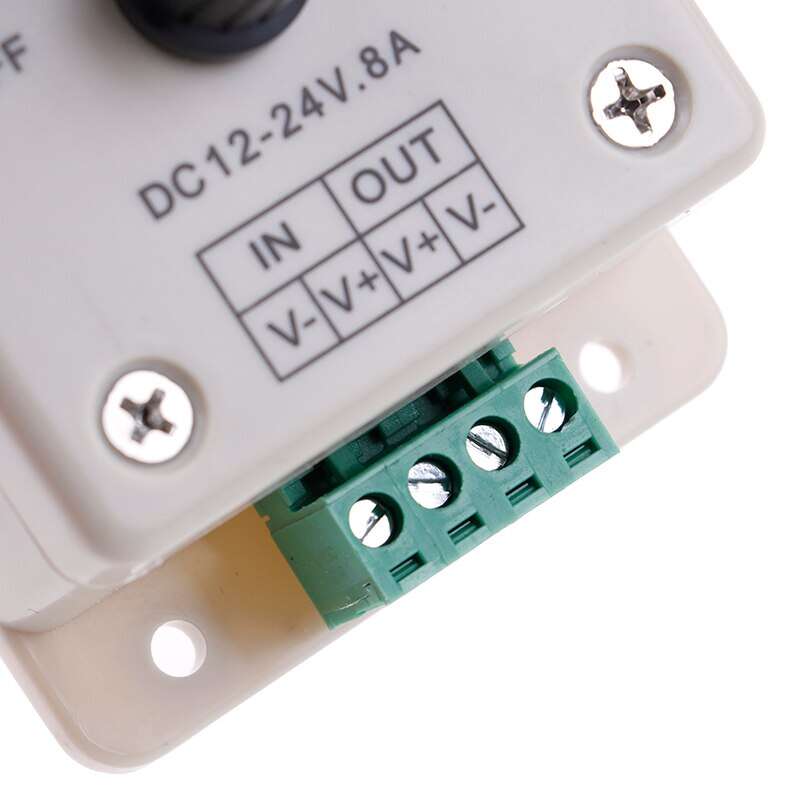

- Connect the Load wire at first, following by the power wire. Please ensure short circult can net occur betwwen connecting wire before you turn on the power.
- Adopt rotary button, it’s function as follows:
- Rotate button to the right, brightness will be brighter,when you rotate it to the far right, the brightness is greatest.
- Rotate button to the left, brightness will be darker,when you rotate it to the far left, the light will be turned off.
