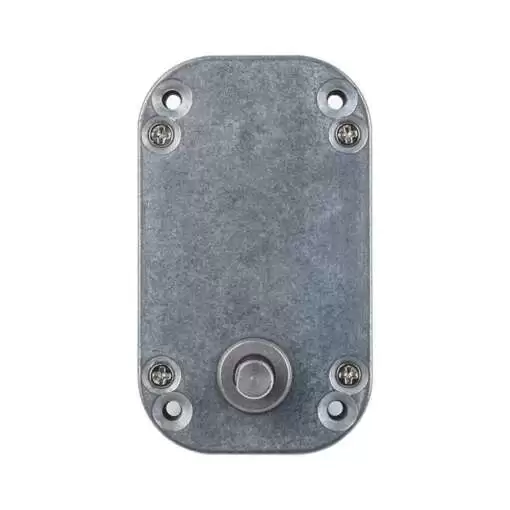

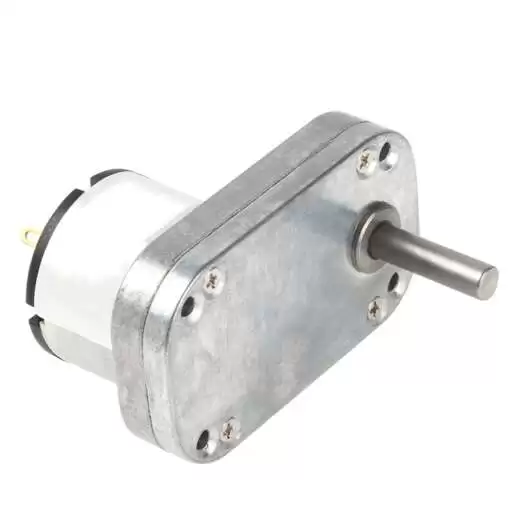

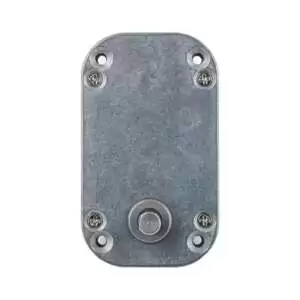

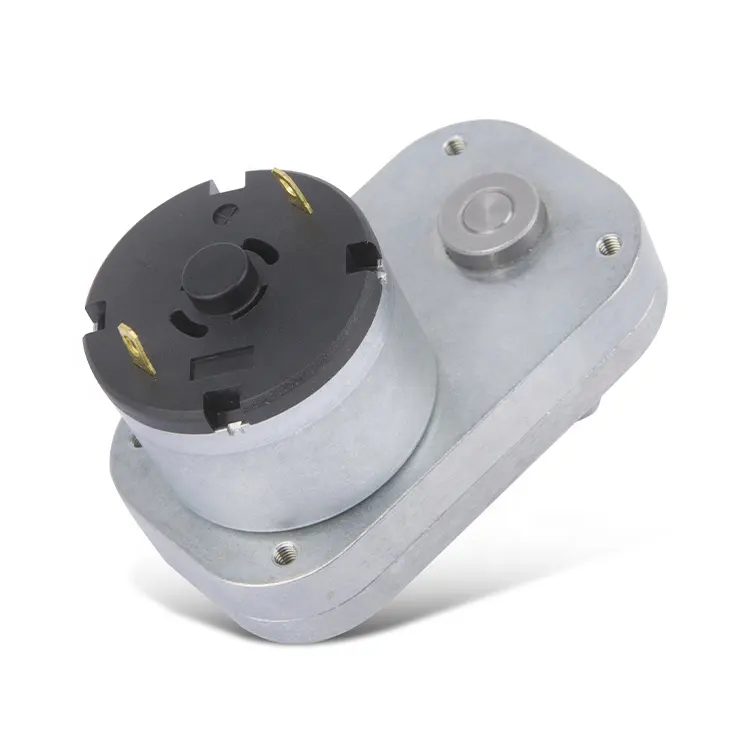

6438-520 DC Gear Motor 12V 95RPM 18kg.cm
A 6438-520 high-torque 12V DC geared motor commonly used in robotics, automation, and motion control applications requiring low-speed, high-power output.
750.00 EGP
Buy Now6438-520 DC Gear Motor 12V 95RPM 18kg.cm
The DC Motor 6438-520 is a brushed DC geared motor designed to deliver high torque with a low output speed of 95RPM. Featuring an integrated metal gearbox, it converts the motor’s high-speed rotation into powerful mechanical output, making it suitable for applications where lifting force and controlled movement are more important than speed.
With an output torque of up to 18kg·cm, this geared motor is ideal for robotic platforms, conveyor systems, automatic doors, DIY mechanical projects, and industrial automation. It operates from a 12V DC supply and provides reliable performance with stable operation, making it an excellent choice for both hobbyists and professional engineers.
Features:
- High torque geared DC motor.
- Low-speed output for precise motion.
- Integrated metal reduction gearbox.
- Smooth and stable operation.
- Compact and durable construction.
- Suitable for continuous rotation.
- Reversible rotation by changing supply polarity.
- Easy integration into automation projects.
- Ideal for robotics and mechanical systems.
- Long service life with reliable performance.
Specifications:
| Parameter | Specification |
|---|---|
| Nominal Voltage | 12 V |
| Free-run Speed (at 12 V) | 95 RPM |
| Free-run Current (at 12 V) | 300 mA |
| Efficiency | 80% |
| Power | 2.88 W |
| Screw Size | M3 |
| Rated Speed (at 12 V) | 76 RPM |
| Rated Current (at 12 V) | 800 mA |
| Rated Load Torque (at 12 V) | 3.6 kg·cm |
| Stall Current (at 12 V) | 2.8 A |
| Stall Torque (at 12 V) | 18 kg·cm |
| Gear Ratio | 105:1 |
Applications:
- Mobile robots.
- Robotic arms.
- Conveyor systems.
- Automatic doors.
- Smart locking systems.
- Mechanical actuators.
- DIY robotics projects.
- Educational platforms.
- Industrial automation.
- Motion control systems.
Package Includes:
- 1 × 6438-520 DC Gear Motor 12V 95RPM 18kg.cm.
