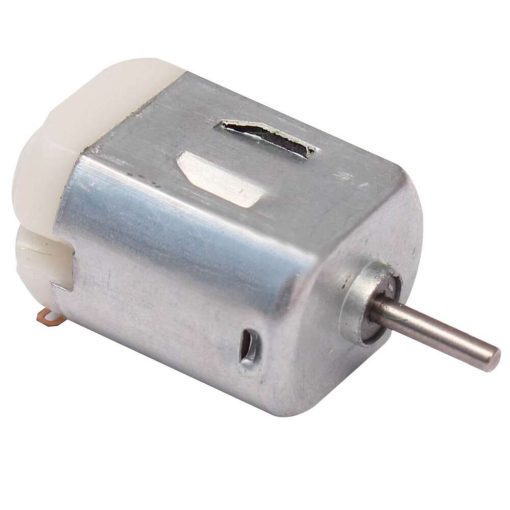

F130 DC Motor 5V
A DC motor is any of a class of rotary electrical motors that converts direct current (DC) electrical energy into mechanical energy. The most common types rely on the forces produced by magnetic fields. Nearly all types of DC motors have some internal mechanism, either electromechanical or electronic, to periodically change the direction of current in part of the motor.
DC motors were the first form of motor widely used, as they could be powered by existing direct-current lighting power distribution systems. A DC motor’s speed can be controlled over a wide range, using either a variable supply voltage or by changing the strength of current in its field windings.
Features:
- Compact and lightweight design.
- Easy to use and integrate.
- Suitable for low-voltage operation.
- Reliable performance for light-duty tasks.
- Compatible with batteries and simple power supplies.
- Ideal for educational and DIY projects.
- Supports various mechanical attachments.
Specifications:
| Parameter | Value |
|---|---|
| Model | F130 |
| Type | Brushed DC motor |
| Rated Voltage | 5 V DC |
| No‑Load Current | 0.1 ~ 0.2 A |
| Stall Current | 0.8 ~ 1.2 A |
| No‑Load Speed | 8000 ~ 12000 RPM |

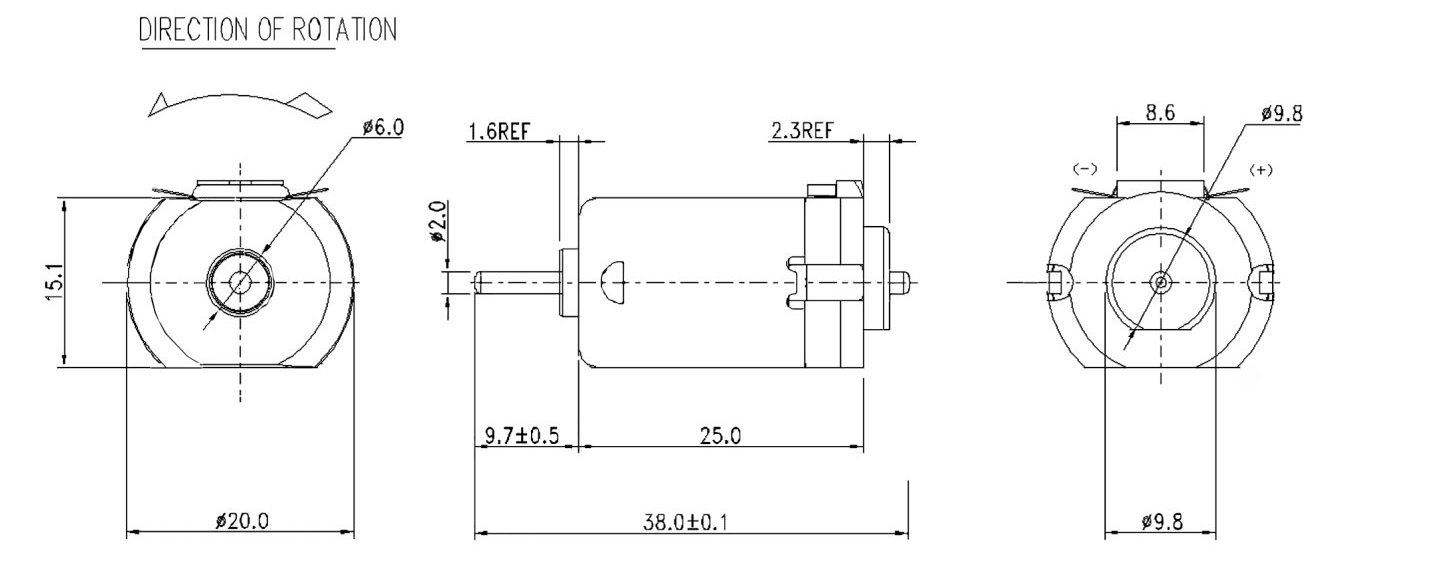

| Shaft Diameter | 2.0 mm |
| Body Diameter | 20 mm |
| Body Length | 25 mm (excluding shaft) |
| Weight | 15 g |
Pinout:
| Pin | Description |
|---|---|
| 1 | VCC (+) |
| 2 | GND (-) |
Applications:
- Toy cars and small robots.
- DIY electronics projects.
- Educational experiments.
- Mini fans and propellers.
- Small mechanical systems.
- Robotics and automation basics.
Package Includes:
- 1x F130 DC Motor 5V.
