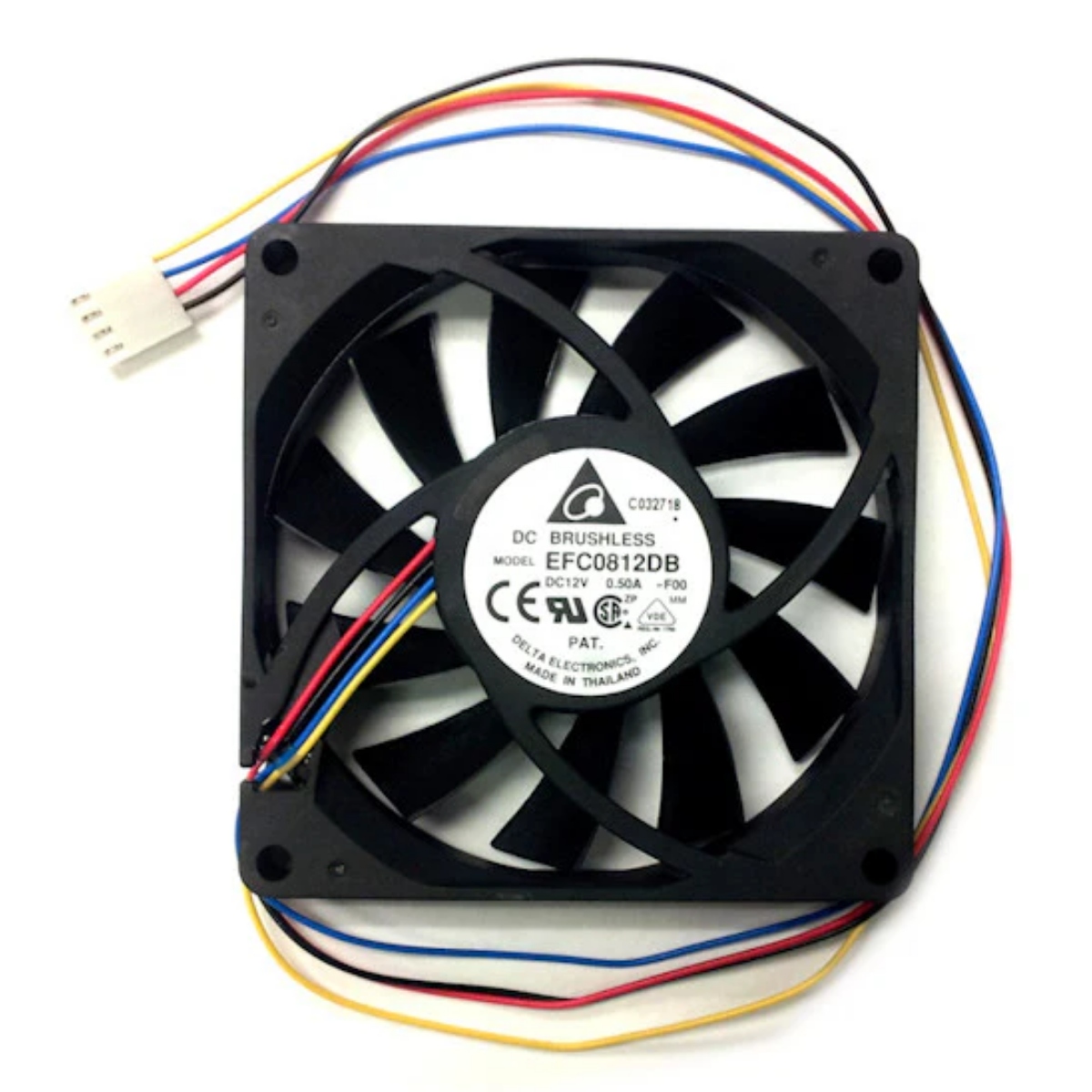

Delta EFC0812DB DC Fan 12V 0.5A 80x80x25mm (USED LIKE NEW)
The Delta EFC0812DB is a reliable 80×80×25 mm DC axial cooling fan designed for efficient heat dissipation in electronic systems. Manufactured by Delta Electronics, it is built to deliver consistent airflow and long-term durability, making it ideal for demanding environments such as servers, telecom equipment, and industrial control systems. Its compact 80mm size allows easy integration into various devices while maintaining effective cooling performance.
Operating at 12V DC with a current rating of 0.5A, this fan provides a strong balance between airflow and power consumption. It is suitable for continuous operation and ensures stable thermal management for sensitive electronic components. The fan is engineered with quality materials and precise construction, ensuring dependable operation even under extended use.
Features:
- High reliability and long service life.
- Efficient airflow for effective cooling.
- Compact 80mm standard size.
- Stable performance under continuous operation.
- Durable construction for industrial use.
- Easy installation and wide compatibility.
Specifications:
| Item | Description |
|---|---|
| RATED VOLTAGE | 12.0 VDC |
| OPERATION VOLTAGE | 7.0 – 12.6 VDC |
| INPUT CURRENT | 0.33 (MAX. 0.50) A |
| INPUT POWER | 3.96 (MAX. 6.00) W |
| SPEED (REF.) | 3800 R.P.M. |
| MAX. AIR FLOW | 1.382 (MIN. 1.244) M³/MIN. |
| (AT ZERO STATIC PRESSURE) | 48.80 (MIN. 43.92) CFM |
| MAX. AIR PRESSURE | 4.35 (MIN. 3.52) mmHg |
| (AT ZERO AIRFLOW) | 0.171 (MIN. 0.139) inchH₂O |
| ACOUSTICAL NOISE (AVG.) | 41.0 (MAX. 45.0) dB-A |
| INSULATION TYPE | UL: CLASS A |
| INSULATION STRENGTH | 10 MEG OHM MIN. AT 500 VDC (BETWEEN FRAME AND (+) TERMINAL) |
| DIELECTRIC STRENGTH | 5 mA MAX. AT 500 VAC 60 Hz ONE MINUTE, (BETWEEN FRAME AND (+) TERMINAL) |
| EXTERNAL COVER | OPEN TYPE |
| LIFE EXPECTANCE | 70,000 HOURS CONTINUOUS OPERATION AT 40 °C WITH 15 ~ 65 %RH. |
| ROTATION | CLOCKWISE VIEW FROM NAME PLATE SIDE |
| OVER CURRENT SHUT DOWN | THE CURRENT WILL SHUT DOWN WHEN LOCKING ROTOR |
| LEAD WIRE | UL 1061 – F– AWG #26 BLACK WIRE: NEGATIVE(–) RED WIRE: POSITIVE(+) BLUE WIRE: TACHOMETER OUTPUT (F00) YELLOW WIRE: SPEED CONTROL (PWM) |
Applications:
- Server and networking equipment.
- Power supply units.
- Industrial control panels.
- Telecom systems.
- General electronic cooling.
Package Included:
- 1x Delta EFC0812DB DC Fan 12V 0.5A 80x80x25mm (USED LIKE NEW).
