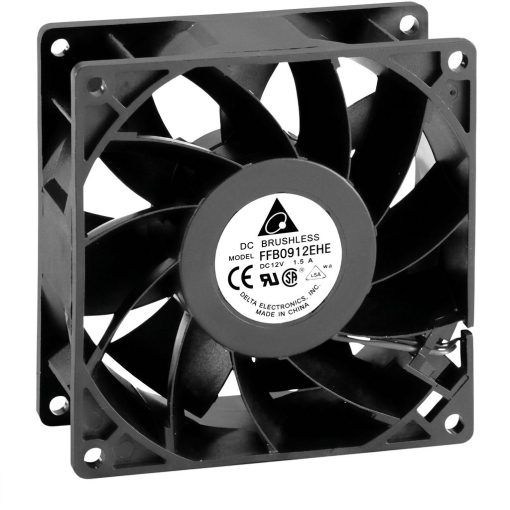

DELTA FFB0912EHE DC Fan 12V 1.5A 92x92x38mm (USED LIKE NEW)
The DELTA FFB0912EHE is a high-performance DC brushless axial fan featuring a 92 × 92 × 38mm frame and a 12V DC operating voltage. It is designed for applications that require strong airflow and high static pressure, with a rated speed of approximately 4800 RPM and airflow up to 110.18 CFM. The fan uses a ball bearing construction for reliable operation and is suitable for demanding thermal-management applications.
This fan is commonly used for cooling servers, networking equipment, industrial control systems, power supplies, electronic enclosures, and other high-temperature equipment. The standard FFB0912EHE specification lists a rated current of 1.0A with a maximum input current of 1.5A, while some commercially listed configurations are specifically sold as 12V 1.5A versions. The supplied unit is Used Like New, making it suitable as a replacement fan or for custom high-airflow cooling projects.
Features:
- DELTA high-performance axial cooling fan.
- High-airflow design.
- Brushless DC motor.
- Ball-bearing construction.
- Compact 92mm square frame.
- 38mm thickness for enhanced airflow performance.
- Designed for demanding cooling applications.
- Suitable for continuous equipment cooling.
- Used Like New condition.
Specifications:
| Attribute | Specification |
|---|---|
| Brand | DELTA |
| Model | FFB0912EHE |
| Fan Type | DC Axial / Tubeaxial Fan |
| Rated Voltage | 12V DC |
| Operating Voltage | 7.0–13.8V DC |
| Rated Current | 1.0A |
| Maximum Current | 1.5A |
| Rated Power | 12W |
| Maximum Power | 18W |
| Dimensions | 92 × 92 × 38mm |
| Speed | 4800 RPM |
| Airflow | 110.18 CFM |
| Static Pressure | 0.665 inH₂O |
| Bearing Type | Ball Bearing |
| Noise Level | 55 dB(A) |
| Connection | 2-Wire for standard FFB0912EHE |
| Operating Temperature | -10°C to +60°C |
| Weight | 198g |
| Condition | Used Like New |
Applications:
- Server cooling.
- Networking equipment.
- Power supply cooling.
- Industrial control systems.
- Electronic equipment.
- Control cabinets.
- Industrial machinery.
- Equipment enclosures.
- High-performance computer cooling.
- Replacement cooling systems.
Package Includes:
- 1 × DELTA FFB0912EHE DC Fan 12V 1.5A 92 × 92 × 38mm (Used Like New).
