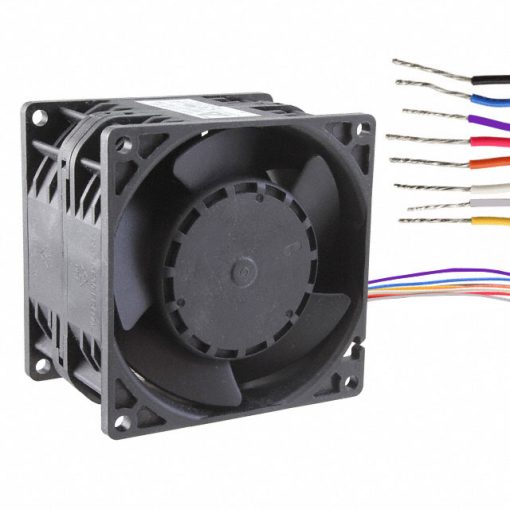

DELTA GFC0812DS DC Fan 12V 1.8A 80×80×56mm (USED LIKE NEW)
The DELTA GFC0812DS DC Fan 12V 1.8A 80×80×56mm (USED LIKE NEW) is a rugged, high-airflow cooling fan designed for demanding thermal management in servers, telecom gear, industrial enclosures, and embedded systems. Part of Delta’s proven GFC series of DC axial cooling fans, this model typically delivers strong airflow and static pressure at 12VDC with current draw in the ~1.8A range, making it suitable for systems that require reliable heat dissipation under continuous operation. Featuring ball bearing construction and common server-grade design, the fan is ideal for OEM replacements, system upgrades, or repairs. Offered in used like new condition, it provides excellent performance at an attractive value for builders and service technicians.
Features
- Designed for 80×80×56mm server and industrial cooling applications.
- Rated for 12VDC operation with robust current draw (~1.8A) for high airflow.
- Ball bearing motor for enhanced reliability and long life.
- Axial fan design for efficient direct airflow across heatsinks and enclosures.
- Durable plastic frame and blades typical of Delta industrial fans.
- “Used like new” tested condition with reliable operation.
Specifications
| Parameter | Value |
|---|---|
| Model | GFC0812DS |
| Manufacturer | Delta Electronics |

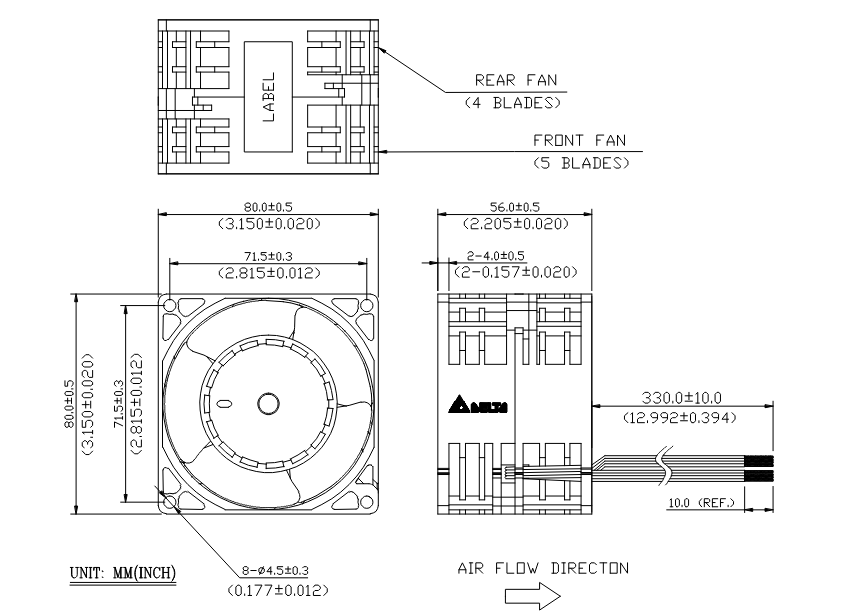

| Fan Size | 80mm x 80mm x 56mm |
| Rated Voltage | 12VDC |
| Rated Current | 2.17A |
| Rated Power | 26.04W |
| Air Flow | 90.0 CFM (≈2.52 m³/min) |
| Speed (typ) | 12,000 RPM (front), 10,500 RPM (rear) |
| Noise Level | 72.6 dB(A) |
| Bearing Type | Ball bearing |
| Leads / Interface | 4-wire (V+, GND, Tach, PWM) |
| Operating Temp Range | −10°C to +60°C |
| Lifetime | 50,000 hours @ 40°C (typ) |
Applications
- Thermal management in server racks and telecom equipment.
- Cooling industrial control panels and power modules.
- Replacement or upgrade fan for OEM system assemblies.
- Embedded electronics enclosure ventilation.
- High-duty airflow applications in custom builds.
Package Contents
- 1x DELTA GFC0812DS DC Fan 12V 1.8A 80×80×56 mm (USED LIKE NEW).
Documents
| Datasheet | GFC0812DS |
