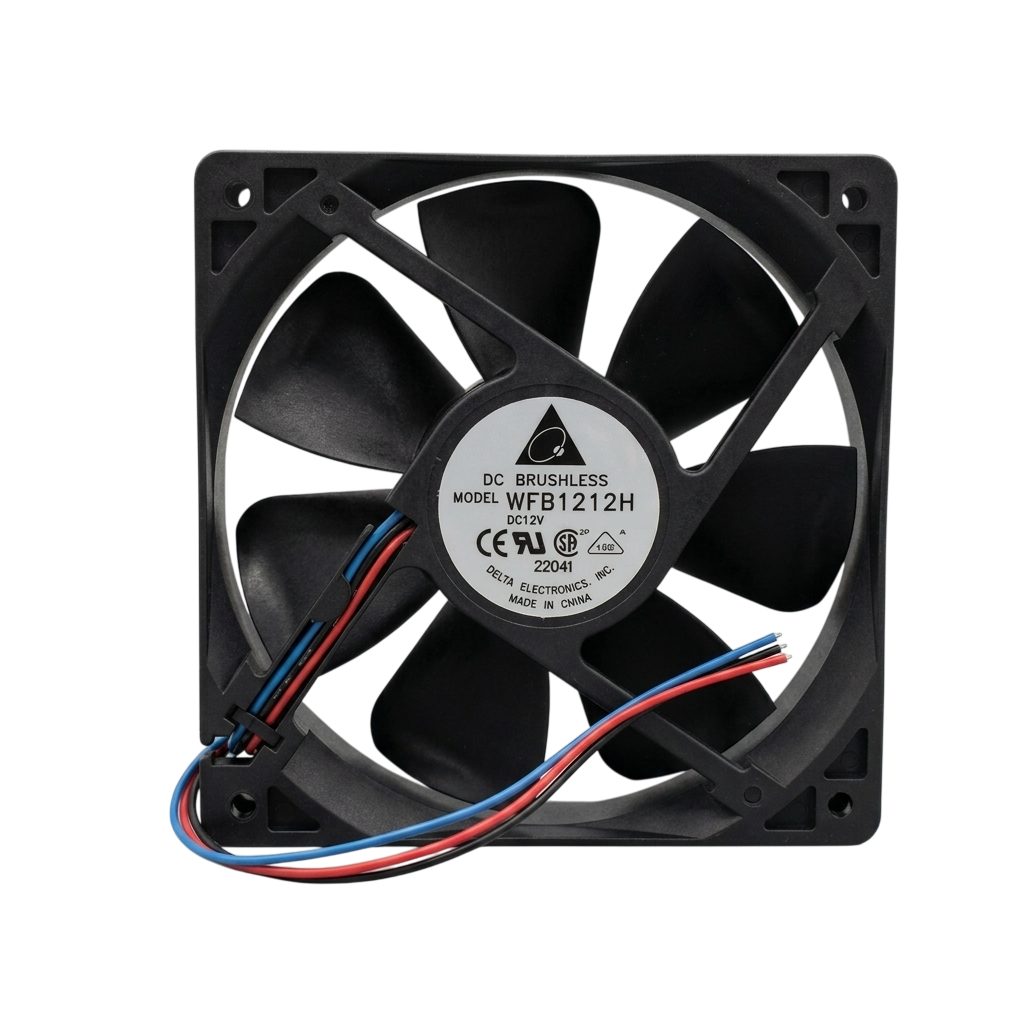

DELTA WFB1212HH DC Fan 12V 0.68A 120x120x25mm (USED LIKE NEW)
The DELTA WFB1212HH is a high-speed DC axial cooling fan with a standard 120 × 120 × 25mm frame. It operates from a 12V DC supply and draws 0.68A, corresponding to approximately 8.16W of electrical power. Available references identify this model with a double ball-bearing construction, approximately 2800 RPM speed, and a high-airflow design suitable for demanding cooling applications.
This fan is suitable for servers, computer systems, power supplies, chassis cooling, networking equipment, industrial controllers, and electronic enclosures. The WFB1212HH model is available in multiple wiring configurations, including 2-wire, 3-wire, and 4-wire variants, so the exact connector and wiring should be checked on the supplied unit. The fan is supplied in Used Like New condition and is suitable as a replacement or retrofit cooling solution.
Features:
- DELTA high-performance DC cooling fan.
- 120mm axial fan design.
- Double ball-bearing construction.
- High-airflow performance.
- Brushless DC motor.
- Standard 25mm fan thickness.
- Suitable for continuous-duty cooling.
- Multiple connector configurations available.
- Suitable for server and industrial equipment.
- Used Like New condition.
Specifications:
| Attribute | Specification |
|---|---|
| Brand | DELTA |
| Model | WFB1212HH |
| Fan Type | DC Axial Cooling Fan |
| Rated Voltage | 12V DC |
| Rated Current | 0.68A |
| Approx. Power Consumption | 8.16W |

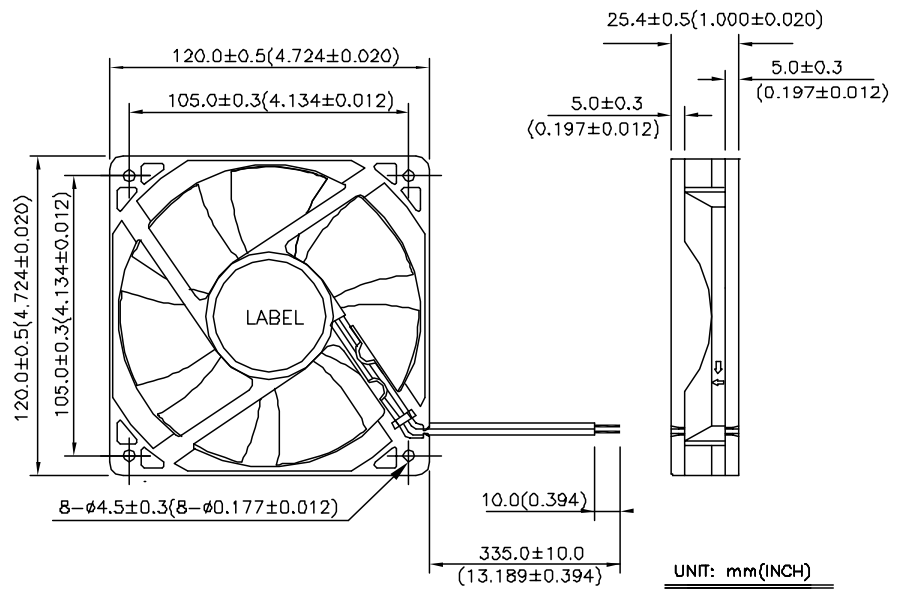

| Dimensions | 120 × 120 × 25mm |
| Speed | 2800 RPM |
| Airflow | 95.3 CFM |
| Noise Level | 42.5 dBA |
| Bearing Type | Double Ball Bearing |
| Connection | 2-Wire / 3-Wire / 4-Wire variants |
| Condition | Used Like New |
Applications:
- Server cooling.
- Computer case cooling.
- Power supply cooling.
- Networking equipment.
- Industrial control systems.
- Electronic equipment.
- Control cabinets.
- Electronic enclosures.
- Telecom equipment.
- Industrial machinery.
- Replacement cooling systems.
- Custom electronics projects.
Package Includes:
- 1 × DELTA WFB1212HH DC Fan 12V 0.68A 120 × 120 × 25mm (Used Like New).
Documents:
