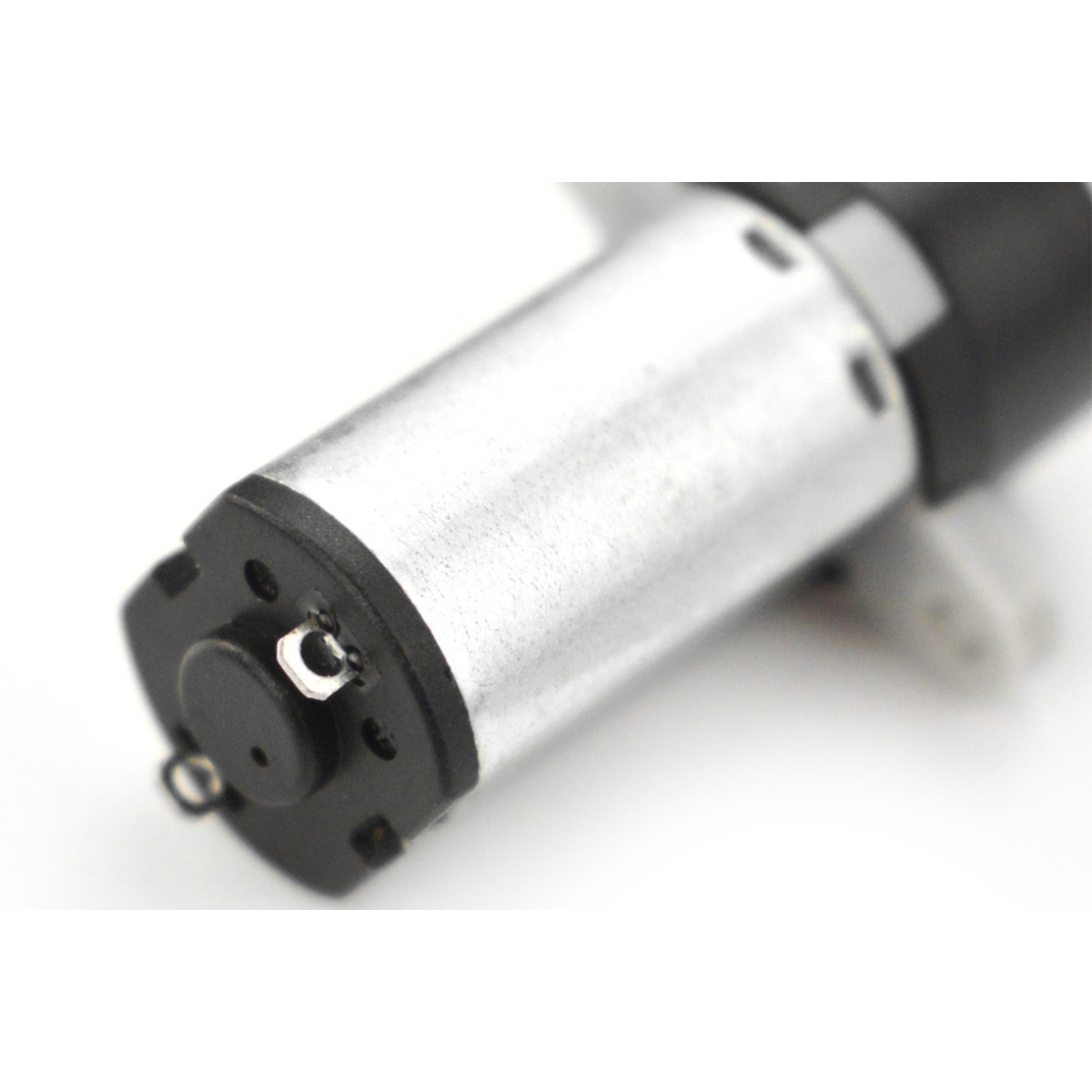

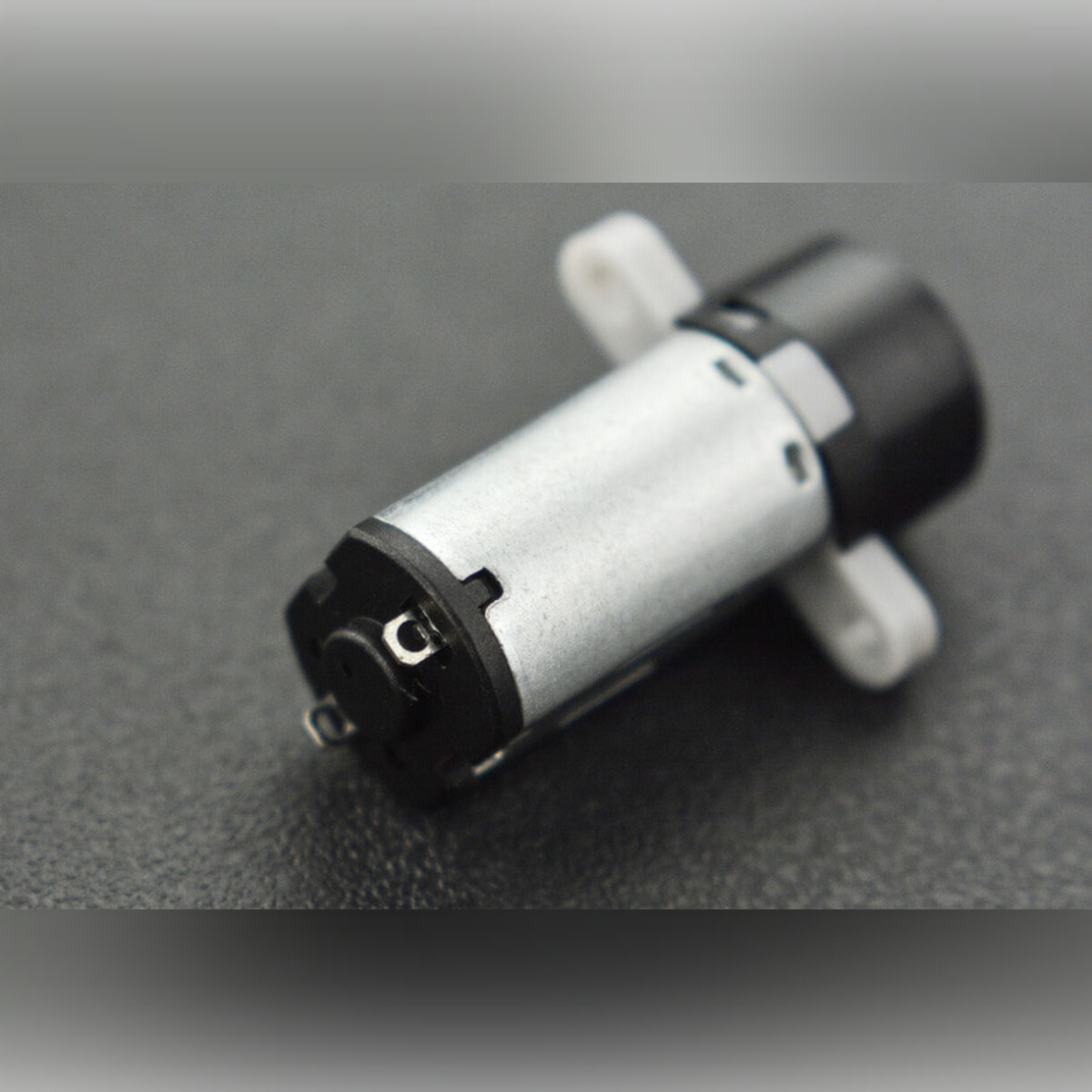

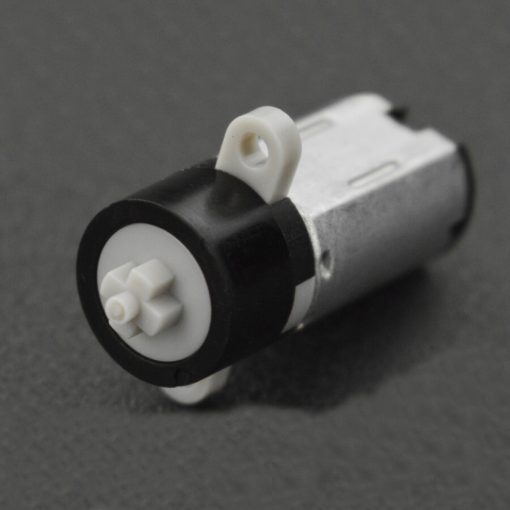

DFROBOT FIT0419 Micro DC Geared Motor 6V 112RPM
Compact DFRobot 6V DC micro geared motor with a 1:171 gear ratio, 110 RPM no-load speed, 550g·cm starting torque, and quiet CW operation (<60dB).
325.00 EGP
Buy NowDFROBOT FIT0419 Micro DC Geared Motor 6V 112RPM
The DFRobot FIT0419 is a micro 6V DC geared motor featuring an integrated gearbox, low noise output, built-in mounting lugs, and solder eyelet terminals. It is engineered for compact electronic builds requiring precise clockwise drive and integrated mounting options.
Features
- Integrated Mounting Lugs
- Low Noise Design
- Clockwise Drive
- Sinusoidal Output
- Solder Terminals

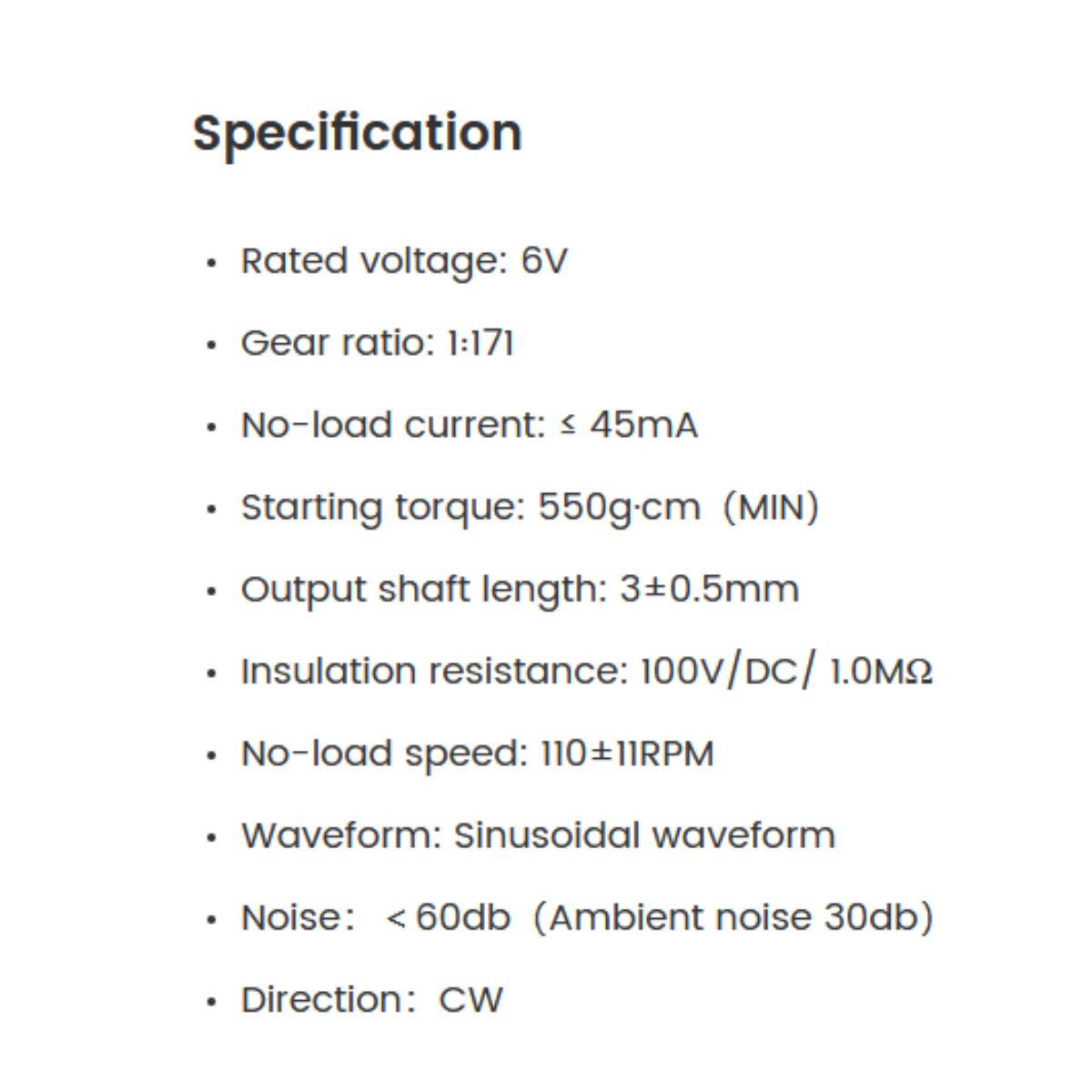

Specifications
| Parameter | Specification |
|---|---|
| Rated voltage | 6V |
| Gear ratio | 1:171 |
| No-load current | ≤ 45mA |
| Starting torque | 550g·cm (MIN) |
| Output shaft length | 3±0.5mm |
| Insulation resistance | 100V/DC/ 1.0MΩ |
| No-load speed | 110±11RPM |
| Waveform | Sinusoidal waveform |
| Noise | < 60db (Ambient noise 30db) |
| Direction | CW |
Applications
- Low-noise micro DC motor drives for miniaturized robotics and compact DIY electronic assemblies utilizing a 6V supply.
Package Content
- 1 x DFROBOT FIT0419 Micro DC Geared Motor 6V 112RPM
