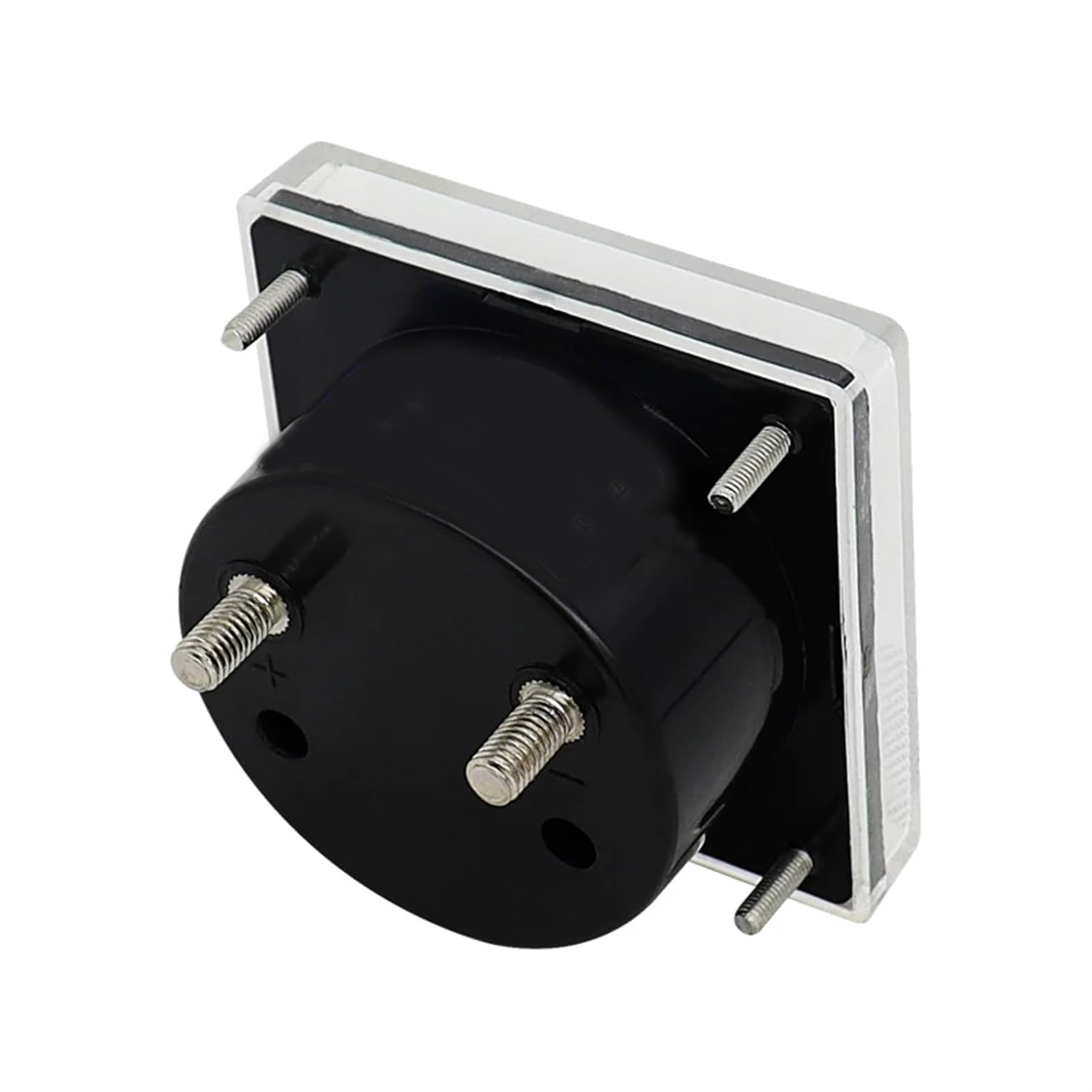

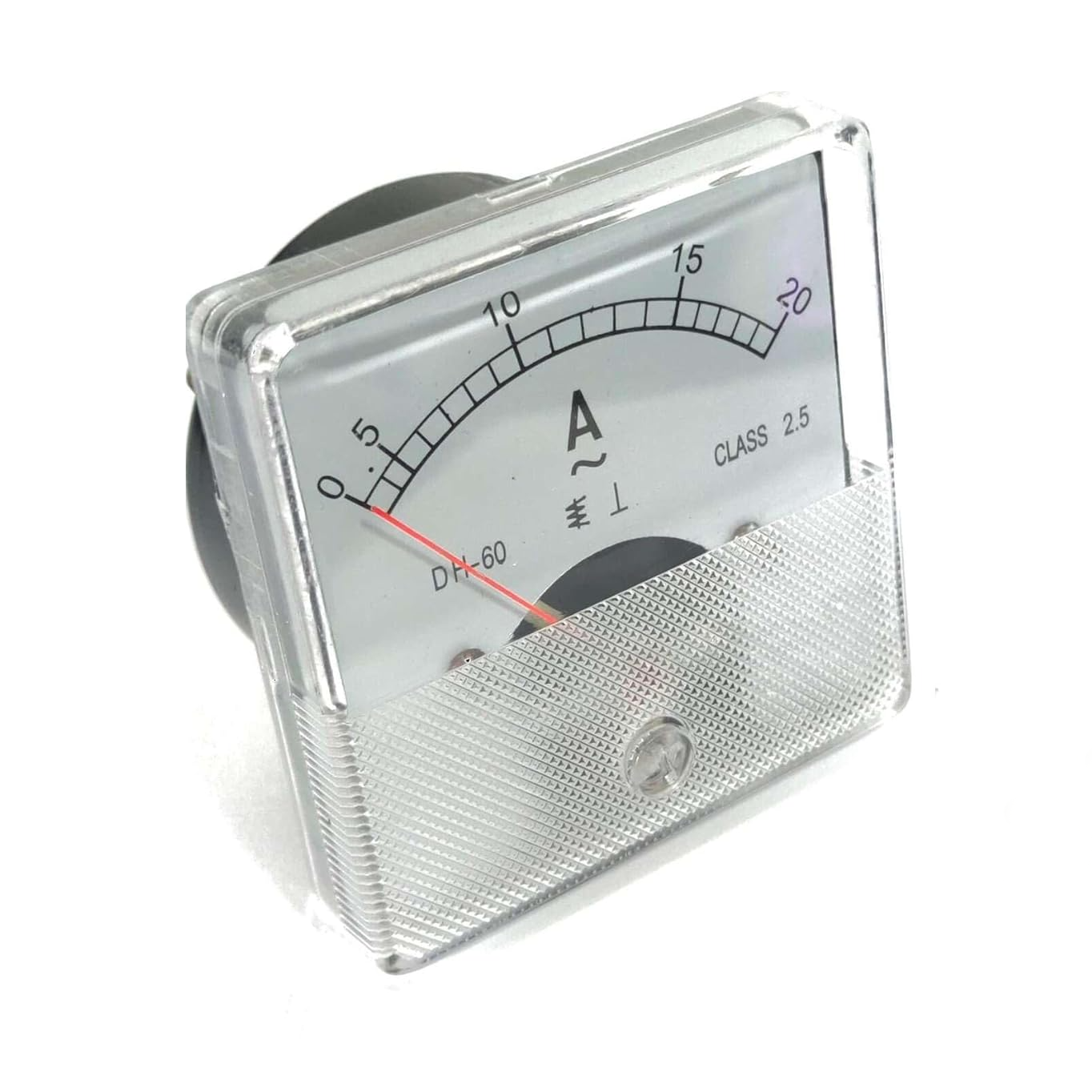

DH-60 AC Analog Current Panel Meter (0~20A)

DH-60 AC Analog Current Panel Meter (0~20A)

The DH-60 AC Analog Current Panel Meter is an electrical measuring instrument designed to display alternating current (AC) values in a circuit. It features a 0~20A range, making it suitable for various industrial and electrical applications requiring real-time current monitoring. It provides an accurate visual representation of current flow in an AC circuit. The analog needle display allows users to quickly assess current levels without requiring a digital interface.

Features:

• Reliable & Durable where offers long service life with high-quality internal components.
• Real-time Monitoring where provides continuous current measurement without lag.
• Analog Display  easy to read with no power consumption for the display itself.
• No Power Supply Required where works directly from the measured current without an external power source.
• Cost-Effective where more affordable compared to digital alternatives.
• Rugged Construction where designed to withstand industrial environments.
• Moving-coil Mechanism with Rectifier for AC measurement.
• Clear & Easy-to-Read Analog Scale.
• Compact Size for panel mounting.
• Durable Housing for protection against dust and environmental factors.
• Fast Response Time with minimal lag.
• High Accuracy & Stability.

Specifications:

• Product: AC Analog Current Panel Meter
• Model: DH-60
• Display Type: Analog Needle
• Mounting Type: Panel Mount
• Measurement Range: AC 0A~20A
• Accuracy Grade: ±2.5%
• Material: Plastic housing with clear cover
• Dimensions(Length x Width x Depth): 61 x 61 x 46mm
• Operating Temperature: -10°C to 50°C
• Compliance: IEC Standard

Applications:

• Electrical Panels.
• Power Distribution Systems.
• Industrial Equipment.
• Generators & Transformers.
• Testing & Calibration Benches.
• Automation & Control Systems.
