DL030D 8 Input NAND Gate DIP-14
The DL030D is a TTL-based 8-Input NAND Gate integrated circuit designed for digital logic processing, control systems, signal combination, and embedded electronic applications. The IC contains a single 8-input NAND gate inside a standard DIP14 through-hole package, making it suitable for breadboard prototyping, industrial electronics, educational projects, and digital system development.
Features:
- Single 8-input NAND gate.
- Compatible with SN7430N and SN74LS30 IC families.
- TTL Low-Power Schottky technology.
- Standard DIP14 through-hole package.
- Fast switching performance.
- TTL-compatible logic levels.
- Suitable for breadboard prototyping.
Specifications:
| Parameter | Value |
|---|---|
| Model | DL030D. |
| Equivalent IC | 7430 / SN74LS30. |
| Technology | TTL Low-Power Schottky (LS). |
| Operating Voltage (VCC) | 5VDC (4.75V to 5.25V). |
| High-Level Input Voltage (VIH) | Min 2.0V. |
| Low-Level Input Voltage (VIL) | Max 0.8V. |
| High-Level Output Voltage (VOH) | Min 2.7V. |
| Low-Level Output Voltage (VOL) | Max 0.5V. |
| High-Level Output Current (IOH) | -400µA. |
| Low-Level Output Current (IOL) | 8mA. |
| Propagation Delay (tPLH / tPHL) | 20ns (Typical). |
| Operating Temperature | 0°C to +70°C. |

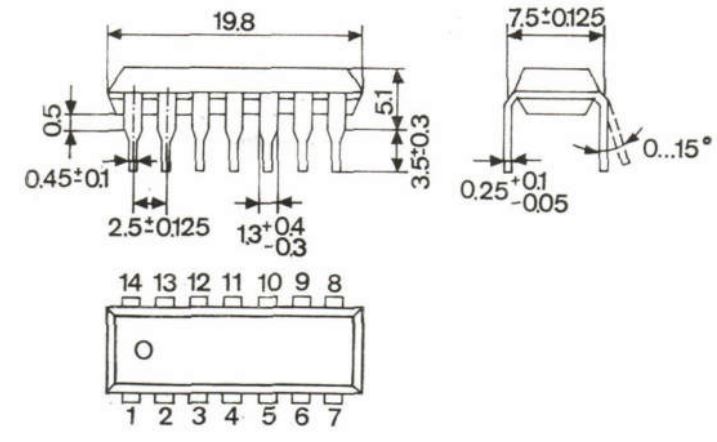

| Package Type | DIP-14. |
Pin Configuration:
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | A | Input 1 of the NAND gate. |
| 2 | B | Input 2 of the NAND gate. |
| 3 | C | Input 3 of the NAND gate. |
| 4 | D | Input 4 of the NAND gate. |
| 5 | E | Input 5 of the NAND gate. |
| 6 | F | Input 6 of the NAND gate. |
| 7 | GND | Ground (0V). |
| 8 | Y | Output of the NAND gate. |
| 9 | NC | No Connection (not internally connected). |
| 10 | NC | No Connection (not internally connected). |
| 11 | G | Input 7 of the NAND gate. |
| 12 | H | Input 8 of the NAND gate. |
| 13 | NC | No Connection (not internally connected). |
| 14 | VCC | Power Supply (+5V). |
Applications:
- Multi-input logic detection circuits.
- Digital control systems.
- Embedded electronic systems.
- Industrial automation electronics.
- Logic signal processing.
- TTL digital logic circuits.
- Educational electronics projects.
- Breadboard prototyping.
- Timing and control applications.
- Digital condition monitoring systems.
Package Include:
1x DL030D 8 Input NAND Gate DIP-14
